I Battery installation

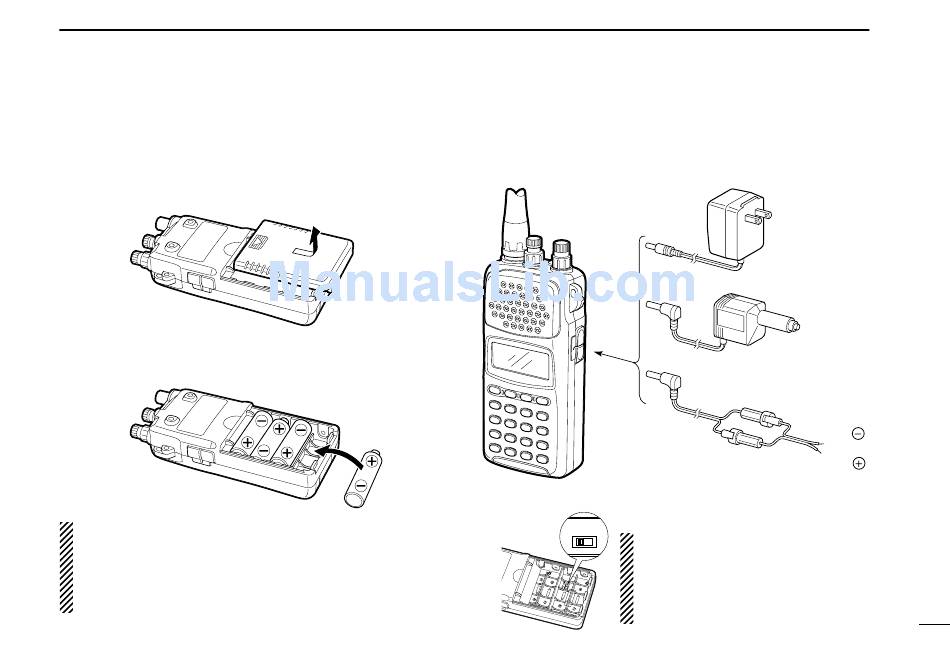

Install 4 AA (R6) size batteries as illustrated below.
Remove the cover from the receiver.
Install 4 AA (R6) size dry cell, alkaline or the supplied Ni-Cd
batteries into the receiver.
CAUTION:
Make sure the polarity of the batteries is cor-
rect before installing. Reverse polarity may damage the
receiver.
NOTE:
DO NOT use different types of batteries at the
same time otherwise the receiver may not work properly.
Ni-Cd BATTERIES AND ACCESSORIES

I Charging connections

Confirm that the [CHARGE] switch is ON, then connect the
supplied wall charger via an AC outlet as shown below.
to [DC]
CHARGE
OFF ON
CAUTION:
[CHARGE] switch is in the OFF po-
sition when operating the receiver
with one of the above power sup-
plies.
BC-110A/E/D/V*
*Not supplied with
some versions.
CP-12L (optional)
To cigarette lighter
socket
Black
OPC-254L (optional)
White
To power supply
(4.8–13.5 V DC)
Make sure the
