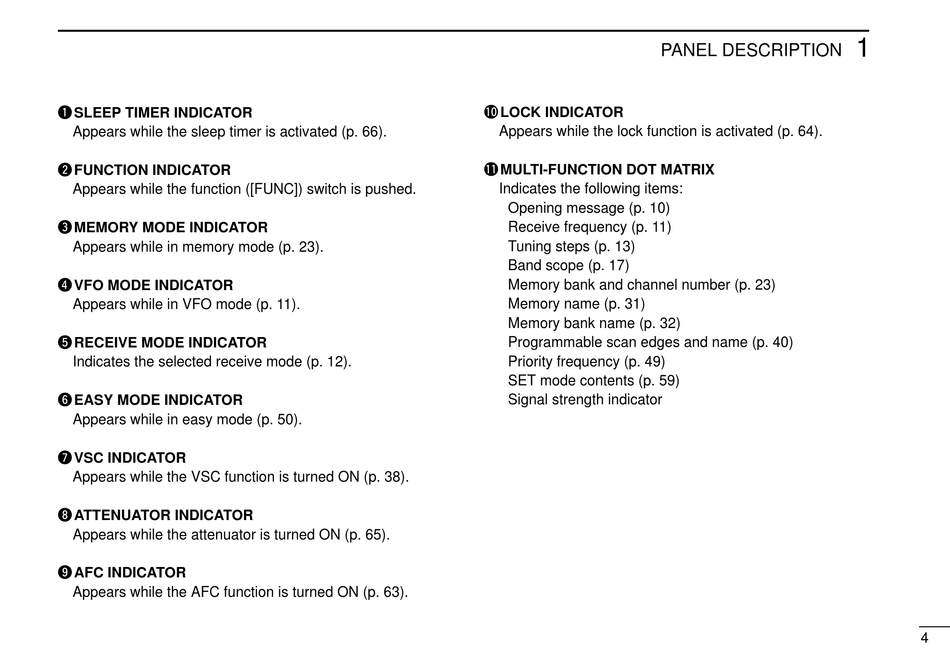

Icom IC-R10 Instruction Manual page 9

q SLEEP TIMER INDICATOR
Appears while the sleep timer is activated (p. 66).
w FUNCTION INDICATOR
Appears while the function ([FUNC]) switch is pushed.
e MEMORY MODE INDICATOR
Appears while in memory mode (p. 23).
r VFO MODE INDICATOR
Appears while in VFO mode (p. 11).
t RECEIVE MODE INDICATOR
Indicates the selected receive mode (p. 12).
y EASY MODE INDICATOR
Appears while in easy mode (p. 50).
u VSC INDICATOR
Appears while the VSC function is turned ON (p. 38).
i ATTENUATOR INDICATOR
Appears while the attenuator is turned ON (p. 65).
o AFC INDICATOR
Appears while the AFC function is turned ON (p. 63).
PANEL DESCRIPTION
!0 LOCK INDICATOR
Appears while the lock function is activated (p. 64).
!1 MULTI-FUNCTION DOT MATRIX
Indicates the following items:
Opening message (p. 10)
Receive frequency (p. 11)
Tuning steps (p. 13)
Band scope (p. 17)
Memory bank and channel number (p. 23)
Memory name (p. 31)
Memory bank name (p. 32)
Programmable scan edges and name (p. 40)
Priority frequency (p. 49)
SET mode contents (p. 59)
Signal strength indicator
1
4
