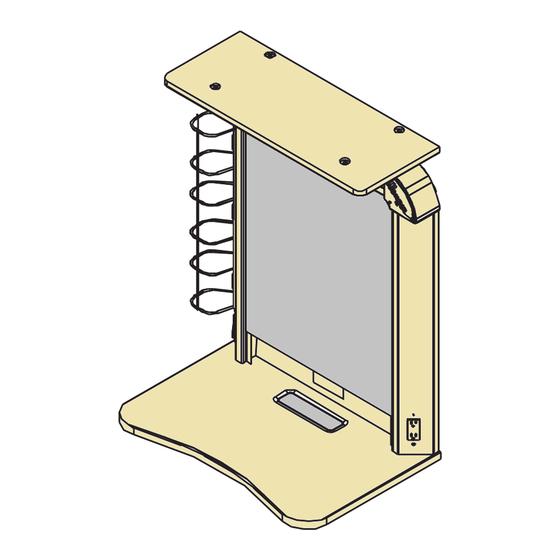

5-light 30-inch Studio
Makeup Station
CONTENTS
fasteners and Part list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
fasteners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
fasteners Part list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Required Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Before Starting The Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
layout the Space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Install the Mounting Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Install the first Makeup Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Install Additional Makeup Stations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Complete the Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Attach the Mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Attach the Counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Connect the Electrical Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Tackboard Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Note: Please read and understand the Studio Makeup Station Installation Instructions before
assembling the parts.
Note: Refer to the illustrations on the following pages. If you need additional information about
your Studio Makeup Station, write, email, or telephone Wenger Corporation at the number or
addresses below.
Note: Two people must work together for some assembly steps.
Note: Because wall construction varies, wall anchors are not supplied with the Studio Makeup
Station.
©Wenger Corporation 2014
Wenger Corporation, 555 Park Drive, P.O. Box 448, Owatonna, Minnesota 55060-0448
Questions? Call.....USA: 800-4WENGER (493-6437) • Worldwide: 1-507-455-4100 • www.wengercorp.com
8-light 30-inch Studio
Makeup Station
Printed in USA 02/14
Installation Instructions
Studio
Makeup Station
®
6-light 36-inch Studio
Makeup Station
30-inch Model
36-inch Model
9-light 36-inch Studio
Makeup Station
Part #187A200-05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Studio Makeup Station 5-light 30-inch and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wenger Studio Makeup Station 5-light 30-inch

  • Page 1: Table Of Contents

    Note: Refer to the illustrations on the following pages. If you need additional information about your Studio Makeup Station, write, email, or telephone Wenger Corporation at the number or addresses below. Note: Two people must work together for some assembly steps.
  • Page 2: Fasteners And Part List

    FASTENERS AND PART LIST The Makeup Station is shipped with all components in a single box, the main assembly, a corrugated sleeve containing the Mirror, a hardware bag, the Counter under the main assembly, the Tackboard Assembly (36-inch Model only) in a corrugated sleeve, and the Wall Mounting Bracket. FASTENERS 3/4"...
  • Page 3: Installation

    INSTALLATION BEFORE STARTING THE ASSEMBLY Before installing the Studio Makeup Station, do the following. 1. Read and understand this installation instruction completely. 2. Open all cartons and make sure each includes a Studio Makeup Station, a hardware bag, the Wall Mounting Bracket, a Tackboard (36-inch Model only), a Mirror (packaged in a corrugated sleeve) and a Counter.
  • Page 4: Layout The Space

    Failure to observe this precaution can result in serious injury, death, or damage to property. LIGHTING The Studio Makeup Station is shipped without light bulbs. Wenger Corporation recommends the use of GE Reveal 40-watt or GE Reveal 60-watt incandescent bulbs or 15 watt full-spectrum swirl ®...
  • Page 5 INSTALLATION CONTINUED LAYOUT THE SPACE CONTINUED * 17-1/2" for 30-inch Model (44.45 cm) ** 30" for 30-inch Model (76.20 cm) Corner 20-1/2" Minimum Distance to a Wall (52.07 cm)* Top Edge of 36"** Mounting Bracket (91.44 cm) Top Surface of 36"** Shelf (91.44 cm)
  • Page 6: Install The Mounting Bracket

    INSTALLATION CONTINUED INSTALL THE MOUNTING BRACKET 1. Remove the Mounting Bracket from the shipping box. 2. locate the Hardware Bag and set it aside. 3. Align the Mounting Bracket to the wall with the top edge of the Mounting Bracket on the Horizontal lIne and the centerline of the Mounting Bracket (user must mark the Bracket centerline with chalk) aligned to the Station Centerline on the wall as shown below.
  • Page 7 INSTALLATION CONTINUED INSTALL THE MOUNTING BRACKET CONTINUED 5. for walls with metal stud construction do as follows. a. Hold the Mounting Bracket in place and note the position of the studs. Note: the mounting bracket must cross at least one stud. b.
  • Page 8: Install The First Makeup Station

    INSTALLATION CONTINUED INSTALL THE FIRST MAKEUP STATION 1. Remove the four flange Nuts, 3/8-16, from the hardware bag. 2. Screw (clockwise) a flange Nut, 3/8-16, onto each each of the two Mounting Bracket Studs with the flanges facing upward as shown below. Position the flange Nuts so that the flange of the nut is one-half inch from the top edge of the Mounting Bracket.
  • Page 9 INSTALLATION CONTINUED INSTALL THE FIRST MAKEUP STATION CONTINUED 6. With two people working together, tilt the Makeup Station into an upright position. a. Only handle the Makeup Station by grasping the Steel frame — do not lift or handle the Makeup Station by grasping the Light Cages or the Shelf. Note: Always start a row with a 6-light unit or a 5-light unit on the left end.
  • Page 10 INSTALLATION CONTINUED INSTALL THE FIRST MAKEUP STATION CONTINUED 7. Attach the 6-light or 5-light Makeup Station to the left-hand Mounting Bracket as follows. a. With two people working together, grasp the Makeup Station frame and lift the Station upward. Warning: Be careful to not pinch fingers between the wall or Wall Mounting Bracket when placing the Makeup Station onto the Mounting Bracket Studs.
  • Page 11 INSTALLATION CONTINUED INSTALL THE FIRST MAKEUP STATION CONTINUED 8. level the Makeup Station as follows. a. Place a 48" Box level across the two Counter Mounting Brackets. b. To move the left side upward, use a 9/16-inch open end wrench and turn the left lower flange Nut counterclockwise and the Right lower flange Nut clockwise.
  • Page 12: Install Additional Makeup Stations

    INSTALLATION CONTINUED INSTALL ADDITIONAL MAKEUP STATIONS Note: Always start a row with a 6-light or 5-light unit on the left end. Add additional 6-light units to the right and finish the row with a 9-light unit or a 8-light unit on the right end. 1.
  • Page 13: Attach The Mirror

    INSTALLATION CONTINUED ATTACH THE MIRROR 1. Remove the Mirror from the shipping carton and inspect the Mirror for damage. 2. With two people working together, place the Mirror against the frame about an inch from the top with Mirror flange at the bottom. 3.
  • Page 14: Connect The Electrical Source

    INSTALLATION CONTINUED CONNECT THE ELECTRICAL SOURCE Warning: To reduce the risk of burns, fire, electric shock or injury to persons, observe the following warnings. • Never connect the electrical source until all of the Makeup Stations are completely assembled with Mirrors and Counters in place. •...
  • Page 15: Warranty

    This is your sole remedy for breach of this warranty. Should you have a question or problem with any Wenger product, don’t hesitate to call, even if the product is past warranty. It’s important to us that all our customers be satisfied.
  • Page 16 This page is intentionally blank.
