C
ONTENTS
Important User Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Manufacturer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Before Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Required Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Fastener Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
To Level Cabinets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Note: Please read and understand these instructions before assembling the parts.
Note: Remove all items from the shipping cartons and arrange them in a convenient location.
Refer to the illustrations on the following pages.
If you need additional information, contact Wenger Corporation using the information below.
©Wenger Corporation 2014
Wenger Corporation, 555 Park Drive, P.O. Box 448, Owatonna, Minnesota 55060-0448
Questions? Call.....USA: 1-800-4WENGER (493-6437) • Worldwide: 1-507-455-4100 • www.wengercorp.com
Assembly/Installation Instructions

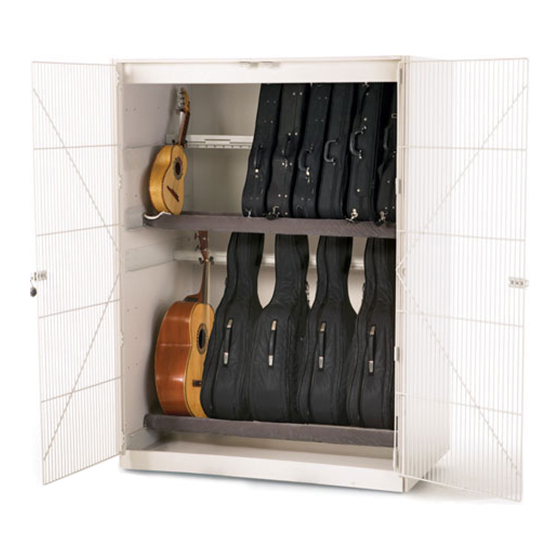

Stringed Instrument
Storage Cabinet (#42)
To Attach Full-Length Wood Doors. . . . . . . . . . . . . . . . . . . . . 10
To Attach Full-Length Grille Doors . . . . . . . . . . . . . . . . . . . . . 11
To Secure Cabinets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
To Secure Cabinets Together . . . . . . . . . . . . . . . . . . . . . 12
To Secure Cabinets to the Back Wall. . . . . . . . . . . . . . . 13
To Secure Cabinets Back to Back . . . . . . . . . . . . . . . . . 14
AcoustiCabinet Backing Attachment. . . . . . . . . . . . . . . . . . . . 15
To Secure the AcoustiCabinet . . . . . . . . . . . . . . . . . . . . . . . . 15
To Secure AcoustiCabinets Together . . . . . . . . . . . . . . . 16
To Install Cover Panels. . . . . . . . . . . . . . . . . . . . . . . . . . 17
To Secure Cabinets to the Wall . . . . . . . . . . . . . . . . . . . 20
Storage Cabinet Maintenance . . . . . . . . . . . . . . . . . . . . . . . . 24
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Humidity Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Printed in USA 08/14
Part #250A700-03
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Wenger Stringed Instrument Storage Cabinet
Summary of Contents for Wenger Stringed Instrument Storage Cabinet
-
Page 1: Table Of Contents
Note: Remove all items from the shipping cartons and arrange them in a convenient location. Refer to the illustrations on the following pages. If you need additional information, contact Wenger Corporation using the information below. ©Wenger Corporation 2014 Printed in USA 08/14 Part #250A700-03 Wenger Corporation, 555 Park Drive, P.O. -
Page 2: Important User Information
Wenger Corporation. Wenger Corporation does not assume any responsibility for any errors that may appear in this manual. In no event will Wenger Corporation be liable for technical or editorial omissions made herein, nor for direct, indirect, special, incidental, or consequential damages resulting from the use or defect of this manual. -
Page 3: Safety Precautions
AFETY RECAUTIONS Throughout this manual you may find CAUTIONS and WARNINGS they are defined as follows: • WARNING; failure to follow the instruction may result in serious injury or death. • CAUTION; failure to follow the instruction may result in serious injury or damage to property. Read all of these safety instructions before assembling and installing the Storage Cabinets. -
Page 4: Required Tools
EQUIRED OOLS • Plastic Mallet • Carpenter’s Level • Phillips Head Screwdriver • Tape Measure • Standard Screwdriver • Carpenter’s Square • Variable Speed Electric Drill (to drive Hex Socket • Open-End Wrench, " • Open-End Wrench, " Screws) • Utility Knife •... -
Page 5: Assembly
SSEMBLY Detail A Item Description Item Description Inserts for hinge screws screw, hex-socket lag carriage bolt, "-20x 2.5 screw, hex-socket, 40 mm (oyster) door screw, pan-head, " handle (wood door only) screw, flat-head, " hinge dowel, wood door catch insert, screw, "-20 nut, cap, hex socket (coordinated color) - Page 6 SSEMBLY CONTINUED NOTE: Tighten screws snugly, but do not over tighten (use special care with a power screwdriver). NOTE: Where colored hardware is called out, use the color coordinated to the laminate. REASSEMBLE ISCELLANEOUS ARTS NOTE: The side panels have a notch in the bottom front corner. 1.
-
Page 7: Operation
PERATION UPPORT ROUP RRANGEMENTS Guitar Violin / Viola / Vihuela Bass Cello / Guitarron Combination High- Pack Options Combination - Cello / Guitarron Cello / Guitarron & Violin / Viola / Vihuela & Violin / Viola / Vihuela Violin / Viola / Vihuela... - Page 8 PERATION CONTINUED UPPORT ROUP RRANGEMENTS NSTRUCTION The basic support group consists of 4 side brackets, 2 padded instrument support tubes and 1 upper support bar. From the sketches above and on page 7, select the approximate arrangement desired. 1. Place 2 side brackets onto the cabinet side panels at the same level and with the same orientation (flange up or down) to receive the instrument support tubes.
-
Page 9: To Level Cabinets
EVEL ABINETS NOTE: Do not try to level the cabinets to match soffits. Do not try to plumb the cabinet to match adjacent walls. For proper door alignment, follow these instructions carefully. 1. Check the level of the 4. Adjust both front levelers entire floor where the equally until the front cabinets will be... -
Page 10: To Attach Full-Length Wood Doors
TTACH ENGTH OORS NOTE: The cabinet must be properly leveled first, or the doors will not fit properly. See page 9 Lay the door (#33) flat. Use a plastic mallet to pound 8-32 screw inserts (#11) into the eight holes (four pairs) near one edge of each door (install inserts into the front face of the door). -
Page 11: To Attach Full-Length Grille Doors
TTACH ENGTH RILLE OORS NOTE: The cabinet must be properly leveled first, or the doors will not fit properly. See page 9. 1. Four sets of screw inserts (#10 oyster) were previously installed in the left and right side panels for the door hinges. -
Page 12: To Secure Cabinets
ECURE ABINETS WARNING WARNING Use methods appropriate to Cabinets are unsafe unless secured as specified. your wall surfaces. NOTE: The following instructions are for standard installations. - For seismic installation instructions, see 145R422. - For AcoustiCabinet refer to pages 14-21. ECURE ABINETS OGETHER... -
Page 13: To Secure Cabinets To The Back Wall
ECURE ABINETS CONTINUED NOTE: The following instructions are for standard installations. For seismic installation instructions, see 145R422. ECURE ABINETS There are L-shaped brackets (#45) in the hardware bag for attaching the cabinets to your wall surface. Because of the variety of possible wall surfaces, fasteners are not included. Have your maintenance people recommend an appropriate type for safe, secure attachment. -
Page 14: To Secure Cabinets Back To Back
ECURE ABINETS CONTINUED ECURE ABINETS If cabinets are installed back-to-back in a “island” or “peninsula” formation, you must drill holes through the back of each cabinet and secure the backs of the cabinets together. NOTE: Make sure the cabinets are in position and level before you secure them together. 1. -
Page 15: Acousticabinet Backing Attachment
COUSTI ABINET ACKING TTACHMENT To attach the sound absorptive material to the back of the AcoustiCabinets: 1. See Detail 0. Flip-Stix (#80) are used to hold the sound absorptive material in place. ® The Flip-Stix are already attached to the rear stretcher panels on the back of all AcoustiCabinets ®... -
Page 16: To Secure Acousticabinets Together
ECURE THE COUSTI ABINET WARNING WARNING Cabinets are unsafe unless Use methods appropriate to your wall surfaces. secured as specified. ECURE ABINETS OGETHER NOTE: Make sure the cabinets are in position and level before you secure them together. 1. See Detail Q. Install two trim strips (I-shaped plastic strips) (#44) on the side panel of one of the two mating cabinets. -
Page 17: To Install Cover Panels
ECURE THE COUSTI ABINET CONTINUED NSTALL OVER ANELS 1. See Detail S. Insert two plastic guide tacks (#84) into the bottom of each cover Panel (#85), centered and 2-3” from each end. 2. See Detail T. Lift the cover panel to a vertical position and fit it into place over the exposed hardware. - Page 18 ECURE THE COUSTI ABINET CONTINUED NSTALL OVER ANELS ( CONTINUED 4. See Detail U. Using the ” drill bit, drill 12 holes (9 holes for 68” tall cabinets) into the side panel of the cabinet to be covered: Top Row NOTE: Do not drill into a shelf or cross member.
- Page 19 ECURE THE COUSTI ABINET CONTINUED NSTALL OVER ANELS ( CONTINUED 5. See Detail V. Place the cover panel into position covering the cabinet side panel and flush with the front edge as in Step 2. 6. Clamp securely in position using at least two non-marring padded clamps. 7.
-
Page 20: To Secure Cabinets To The Wall
ECURE THE COUSTI ABINET CONTINUED NOTE: The following instructions are for standard installations. For seismic installation instructions, contact the Wenger Corporation. ECURE ABINETS There are three methods for attaching AcoustiCabinets to a wall surface: ” from wall (recommended) Greater than 2 ”... - Page 21 ECURE THE COUSTI ABINET CONTINUED IFFERENT ABINETS 1. See Detail X. Flatten the tab on the mounting bracket at the side that will be closest to and overlap the wider cabinet or trim the mounting bracket to fit if preferred. 2.
- Page 22 ECURE THE COUSTI ABINET CONTINUED ” ABINETS GREATER THAN FROM WALL 1. See Detail W. Flatten the tabs on the mounting bracket. 2. Attach the mounting bracket to the back of the cabinet, over the sound absorptive material. 3. Mount a stud to the wall using the necessary fasteners suggested by your maintenance people. 4.
- Page 23 ECURE THE COUSTI ABINET CONTINUED ABINETS LUSH WITH WALL ECOMMENDED 1. See Detail Z. Flatten the tabs on the wider tabbed surface of the mounting bracket. 2. Position the mounting bracket to extend between ” to 2 ” beyond the back of the cabinet. Overlap mounting brackets for different size cabinets as indicated under “Different Size Cabinets”...
-
Page 24: Storage Cabinet Maintenance
TORAGE ABINET AINTENANCE LEANING For removal of mild stains and mild scuff marks, the polyester wood panels and polyester shelves may be cleaned using an all-purpose household cleaner (409, Fantastic, or similar), or just simple mild soap and water. For heavier scuff marks, ink stains, felt pen and magic marker stains, or other tough stains; use a non- abrasive cleaner (Soft Scrub or similar), or an industrial all-purpose cleaner (Acetone or similar).
