Standard
Seismic Instructions to be used with Wenger Storage Cabinets only!
For more detailed product information, refer to the Assembly Instructions 250B394.
!
WARNING
Inferior or improperly installed fasteners
could cause the lockers to tip over.
7'0"
(2134 mm)
Floor
Floor Anchor
See page 5
Note: Please read and understand these instructions before installing.
Note: Refer to the illustrations on the following pages.
If you need additional information, contact the Wenger Corporation using the information below.
©Wenger Corporation 2019
Wenger Corporation, 555 Park Drive, P.O. Box 448, Owatonna, Minnesota 55060-0448
Questions? Call.....USA: (800) 4WENGER (493-6437) • Worldwide: +1-507-455-4100 • wengercorp.com
Standard
Wall Anchor
See pages 2-4
UltraStor
Storage Cabinet
®

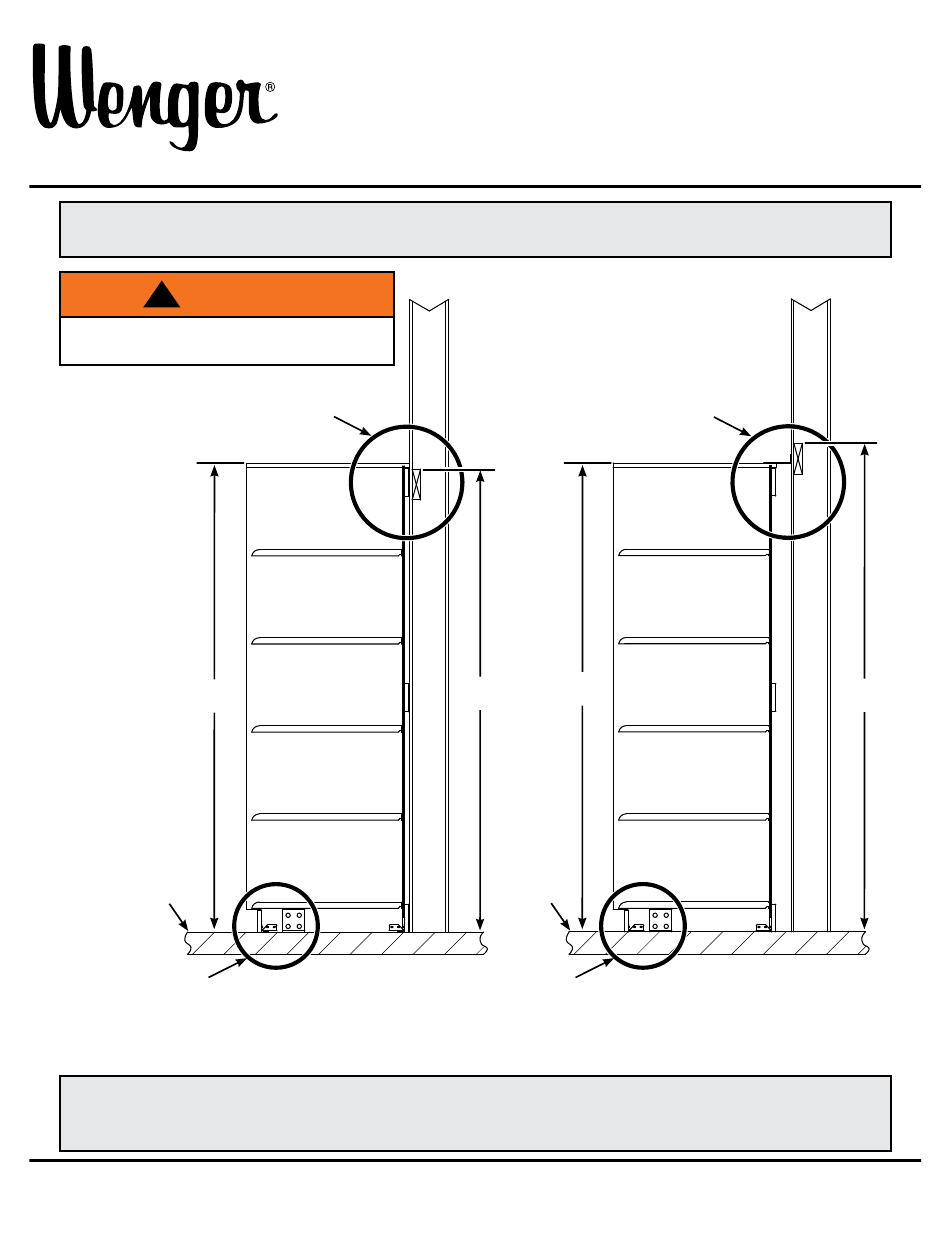

Section View
Printed in USA 2019-09
Cabinet Storage Products
Wall Anchor
See pages 2-4
7'0"
6'11"
(2134 mm)
(2108 mm)
Floor
Floor Anchor
See page 5
Seismic Installation
Acousti
AcoustiCabinet
®
Section View
Part #145R422-04
Acous
7'4"
(2235 mm)
Advertisement
Related Manuals for Wenger AcoustiCabinet
Summary of Contents for Wenger AcoustiCabinet
- Page 1 Section View Note: Please read and understand these instructions before installing. Note: Refer to the illustrations on the following pages. If you need additional information, contact the Wenger Corporation using the information below. ©Wenger Corporation 2019 Printed in USA 2019-09 Part #145R422-04 Wenger Corporation, 555 Park Drive, P.O.
- Page 2 Wall Anchoring with C.M.U. Bracing Wenger Part No. X003492 Screw Anchors should be secured using the following procedure: 1. Use a 3/8" drill bit to pre-drill each hole 1/2" to 1" (13 to 25 mm) deeper into the wall surface than the screw anchor length (to allow for dust and debris while drilling).
- Page 3 Wall Anchoring with 2" x 6" Wood Bracing 2" x 6" Blocking @ All Cabinets, Shelving, Tackboards, Chalkboards, Ect. (Supplied By Contractor) Wenger Part No. X002159 #12 F.W.W. Screw 3-1/2" LG @ 16" On-Center Min. Penetration 1-1/2" (38 mm) Into Solid Wood Blocking (Two Required Per Cabinet) 1/2"...
- Page 4 18 Ga. G.S. Unpunched "C" Stud Backing Cont. @ All Cabinets, Shelving, Tackboards, Chalkboards, Ect. (Supplied By Contractor) Wenger Part No. X002456 Screw, Drill/Tap 1/4-14 x 3" @ 16" On-Center (Two Required Per Cabinet) Stud Support Wall Wall Anchor - Metal Stud Bracing UltraStor 18 Ga.
-
Page 5: Floor Anchoring
Floor Anchoring Wenger Part No. X003498 Expansion Anchors should be secured using the following procedure: 1. Use a 3/8" drill bit to pre-drill each hole 1/2" to 1" (13 to 25 mm) deeper into the floor than the expansion anchor length (to allow for dust and debris while drilling). 2. Remove any debris residue from the pilot hole. 3. Drive the expansion anchor through the 145L459 or 145R486 floor bracket and into the pilot hole. - Page 6 This page is intentionally blank.
- Page 7 This page is intentionally blank.
- Page 8 This page is intentionally blank.
