Contents
Important User Information � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 2
General � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 2
Manufacturer � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 2
Intended Use � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 2
Warranty � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 2
Before Installation � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 2
Overview � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 2
Before You Begin � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 2
Safety Precautions � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3
Required Tools� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3
Fastener Parts List � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
Wall Fasteners - Not Supplied � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
Layout Configurations � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
Locker Options � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
Wall Mount Configuration Locker Components � � � � � � � � � � � � � � � 8
Island Mount Configuration Locker Components � � � � � � � � � � � � � 9
Installation � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10
Unpacking � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10
Leveling � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 11
Connect All Locker Sides Together � � � � � � � � � � � � � � � � � � � � 14
Connect Locker Backs Together � � � � � � � � � � � � � � � � � � � � � � 16
Secure Lockers to Back Wall � � � � � � � � � � � � � � � � � � � � � � � � 17
Secure Island Mount Lockers � � � � � � � � � � � � � � � � � � � � � � � � 18
End Cover Panel Option � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 19
Assembly � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 19
Single End Cover Attachment � � � � � � � � � � � � � � � � � � � � � � � � 20
Island End Cover Attachment � � � � � � � � � � � � � � � � � � � � � � � � 21
Helmet and Shoulder Pad Topper Option � � � � � � � � � � � � � � � � � � � 22
Finalize Installation � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 23
Care and Maintenance � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 23
Replacement Parts � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 24
Visit gearboss.com/rival-lockers.php for detailed instructions and videos.
Note: Please read and understand these instructions before starting the installation�
Note: If you need additional information, contact Wenger Corporation using the information below�
©Wenger Corporation 2019
Wenger Corporation, 555 Park Drive, P�O� Box 448, Owatonna, Minnesota 55060-0448
Questions? Call�����USA: (800) 4WENGER (493-6437) • Worldwide: +1-507-455-4100 • wengercorp�com

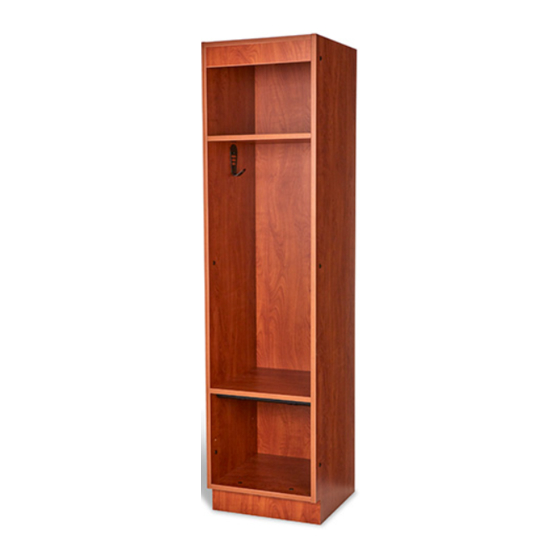

Rival
Printed in USA 2019-02
Installation Instructions
Athletic Locker
™
Part #243A242-01
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Wenger Gearboss Rival
Summary of Contents for Wenger Gearboss Rival
-
Page 1: Table Of Contents
Replacement Parts � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 24 Visit gearboss.com/rival-lockers.php for detailed instructions and videos. Note: Please read and understand these instructions before starting the installation� Note: If you need additional information, contact Wenger Corporation using the information below� ©Wenger Corporation 2019 Printed in USA 2019-02 Part #243A242-01 Wenger Corporation, 555 Park Drive, P�O�... -
Page 2: Important User Information
Wenger Corporation� Wenger Corporation does not assume any responsibility for any errors that may appear in this manual� In no event will Wenger Corporation be liable for technical or editorial omissions made herein, nor for direct, indirect, special, incidental, or consequential damages resulting from the use or defect of this manual�... -
Page 3: Safety Precautions
Safety Precautions Throughout this document you may find cautions and warnings which are defined as follows: • WARNING: Failure to follow the instruction could result in serious injury or damage to property� • CAUTION: Failure to follow the instruction could result in minor injury or damage to property� Read all of these safety instructions before installation�... -
Page 4: Fastener Parts List
Fastener Parts List Locker Connection Fasteners* 1/4-20 1/4-20 x 1.181" Cap Nut Connector Bolt 1/4-20 x 1.77" 1/4-20 Insert Nut Machine Screw Wall or Floor Bracket Fasteners* #8 x 5/8" Pan Head Screw End Cover Panel Accessory Fasteners* #8 x 1-3/8" #8 x 1-1/4"... -
Page 5: Wall Fasteners - Not Supplied
Fasteners - Not Supplied Because materials and construction of floors and walls can vary, fasteners for attaching the locker to the structure are not provided� The installer must choose the appropriate fastener and follow the manufacturer’s instructions� WARNING Inferior or improperly installed fasteners could cause the lockers to tip over. - Page 6 Locker Options Customer Installed Options The following options are installed during the locker installation� Padded Seat Cushion Helmet and Shoulder Pad Topper ADA Compliant Locker (see page 22) Includes two additional Garment Hooks Available for (see separate installation instructions) Fixed or Hinged Seats (see separate installation instructions)
-
Page 7: Locker Options
Locker Options (continued) Pre-installed Options The following options may be installed on the locker prior to shipping with no assembly required� Cubby Compartment with Cubby Compartment with Cubby Compartment with Programmable Digital Lock Hasp Lock No Door Flip-down Nameplate Garment Bar Housing Fixed Seat with Hinged Seat with... -
Page 8: Wall Mount Configuration Locker Components
Wall Mount Configuration Locker Components Item Description Item Description Item Description Locker Unit Single End Cover Panel (Optional) 9 #8 x 1-3/8" Wood Screw Leveler Tack Glide 1/4-20 x 1�181" Connector Bolt 7 Toe Kick Cover Plate 1/4-20 Cap Nut #8-15 x 1-1/4"... -
Page 9: Island Mount Configuration Locker Components
Island Mount Configuration Locker Components Item Description Item Description Item Description Locker Unit Tack Glide 1/4-20 Insert Nut Leveler Toe Kick Cover Plate Island End Cover Panel (Optional) 1/4-20 x 1�181" Connector Bolt 8 #8-15 x 1-1/4" Truss Head Screw 1/4-20 Cap Nut 1/4-20 x 1�77"... -
Page 10: Installation
Installation Unpacking 1� Unpack each individual locker unit� Use more than one person and take care to avoid damage� CAUTION More than one person is needed to unpack the lockers. 2� Set each locker unit upright�... -
Page 11: Leveling
Installation Leveling The lockers must be leveled to each other before attaching them together� 1� The bottom shelf must be removed to access the 2� Move the lockers to be within a few inches of their levelers� final location according to the layout drawings. a�... - Page 12 Installation (continued) Leveling (continued) 4. a. Check the level of the entire floor where 5� Adjust the levelers on one side the lockers will be installed� until the front edges of the locker side panels b. Determine the highest point of the floor in are plumb that area�...
- Page 13 Installation (continued) Leveling (continued) 7� Adjust both front levelers equally until the front 9� Adjust the levelers on the adjacent locker so it will edges of the locker are plumb (front-to-back)� line up with the top of the highest locker� Confirm that adjacent lockers are level using a wall bracket or carpenter’s level across the tops�...
-
Page 14: Connect All Locker Sides Together
Installation (continued) This procedure is for securing the sides of adjacent lockers. STOP Island mount lockers will require additional steps on the next pages. For standard installations only, see separate seismic instructions if required. Connect All Locker Sides Together There are three holes at the front of the side panels for securing adjacent lockers together� See Detail A1. - Page 15 Installation (continued) Connect All Locker Sides Together (continued) 1� Check that each locker is level vertically and adjacent lockers are level along the tops� Make any necessary leveling adjustments before connecting the locker sides together� 2� Be sure that the front pilot holes in the end panels are aligned and connect the locker units together using 1/4-20 x 1�181"...
-
Page 16: Connect Locker Backs Together
Installation (continued) This procedure is for securing the backs of adjacent island mount lockers. STOP The sides of the lockers must already be connected as described on the previous page. This instruction is for standard installation only. For seismic installation, see the instructions included with the Seismic Island Kit 243A028. CAUTION In an island configuration, the adjacent locker backs must also be connected in addition to the sides of the lockers. -
Page 17: Secure Lockers To Back Wall
Installation (continued) This procedure is for securing wall mount lockers to the structure. STOP See the next page for securing island mount lockers to the structure. This instruction is for standard installation only. For seismic installation, see the instructions included with the Seismic Wall Kit 243A024. CAUTION WARNING In addition to the sides of the lockers being secured,... -
Page 18: Secure Island Mount Lockers
Installation (continued) This procedure is for securing island mount lockers to the structure. STOP See the previous page for securing wall mount lockers. This instruction is for standard installation only. For seismic installation, see the instructions included with the Seismic Island Kit 243A028. CAUTION WARNING In addition to the sides and backs of the lockers being... -
Page 19: End Cover Panel Option
End Cover Panel Option End cover panels may be attached to cover exposed ends of locker formations. STOP For Single End Cover Panel attachment, see page 20. For Island End Cover Panel attachment, see page 21. Assembly 1� Carefully remove the end cover panel from the package� 2�... -
Page 20: Single End Cover Attachment
End Cover Panel Option (continued) Single End Cover Panel Attachment 1� To further secure the single end cover panel, screws must be installed through the rear of the end locker� a� From the outside of the locker at the end of the locker formation, measure and mark for three holes� These holes should be parallel with the existing holes in the front of the locker and 2-1/2"-3"... -
Page 21: Island End Cover Attachment
End Cover Panel Option (continued) Island End Cover Panel Attachment 1. Raise the single end cover panel into position covering the cabinet side and flush with both edges. Be sure that both sets of pilot holes in the island end cover panel (12) are aligned with the pilot holes in both lockers at the end of the formation�... -
Page 22: Helmet And Shoulder Pad Topper Option
Helmet and Shoulder Pad Topper Option A helmet and shoulder pad topper option can be installed on top of the locker� 1� Place the helmet and shoulder pad topper (19) to be centered over the four holes on top of the locker� 2. -
Page 23: Finalize Installation
Care and Maintenance Electronic Lock If the locker has an electronic lock, the default user code is 2244� Contact Wenger for information about updating the codes� Cleaning For removal of mild stains and mild scuff marks, panels and shelves may be cleaned using an all-purpose household cleaner or just simple mild soap and water�... -
Page 24: Replacement Parts
Replacement Parts Item Description Item Description Item Description Item Description Hook Bracket Nameplate* Padded Seat Cushion* 16 Top Shelf Garment Bar* Cubby Door* Left Side Panel Back Panel Fixed Seat* Hasp Lock* Marquee Panel Bottom Shelf Foot Locker Shelf* Hinged Seat* Top Panel Toe Kick Panel Helmet and Shoulder...
