Note: Please read and understand these instructions before working with or using the UltraStor
Storage Cabinets.
Note: Refer to the illustrations on the following pages. If you need additional information, contact
the Wenger Corporation using the information below.
©Wenger Corporation 2015
Wenger Corporation, 555 Park Drive, P.O. Box 448, Owatonna, Minnesota 55060-0448
Questions? Call.....USA: 800-4WENGER (493-6437) • Worldwide: 1-507-455-4100 • www.wengercorp.com
3
4
5
13
14
23
24
25
36
35
56
57
58
IMPORTANT: Read pages 2 - 4 before you begin assembly!
Printed in USA 08/15

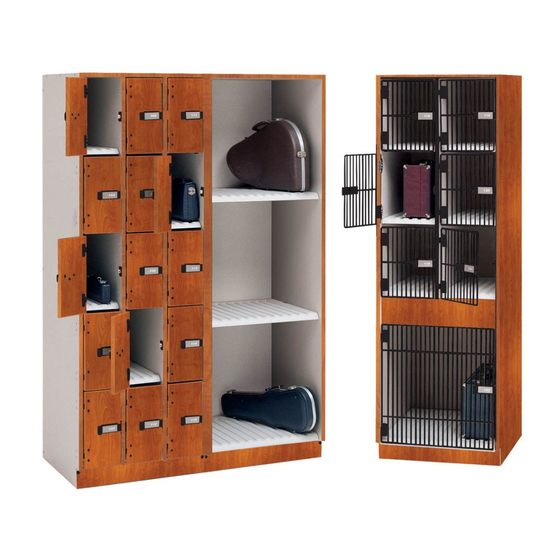

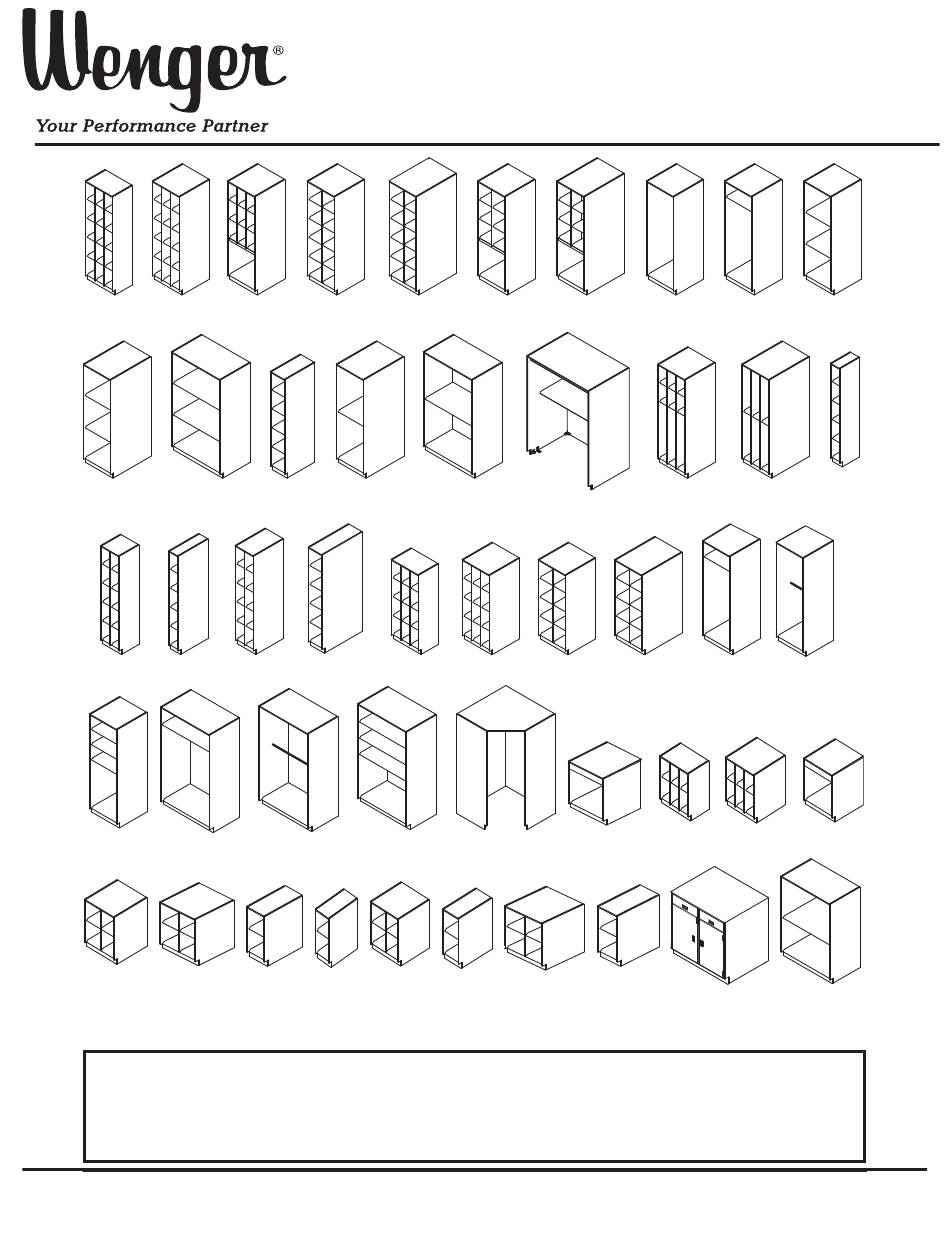

Assembly and Installation Instructions
UltraStor
6
7
15
17
26
27
50
41
59
60
Storage Cabinets
™
8
9
18
19
28
31
52
51
61
62
10
20
32
53
67
™
Part #250A542-10
