Introduction of Operating Modes
Variable Pressure Mode: Operates by changing between the entered pressure set
value and 50% of the set value.
Constant Pressure Mode: The entered pressure works steadily at the set value.
Auto Mode: This mode is activated in variable pressure and constant pressure
mode. It tries to control the device by matching the operating point of the system
with the engine performance values.
Manual Mode: When the pump is operating in this mode, the pressure can be
increased or decreased by changing the speed value.
Night Mode: When the pump is running in this mode, the adjusted speed drops
automatically by 50% and the pump slows down.
Note: You can switch modes by pressing the + and - keys for 2 seconds.

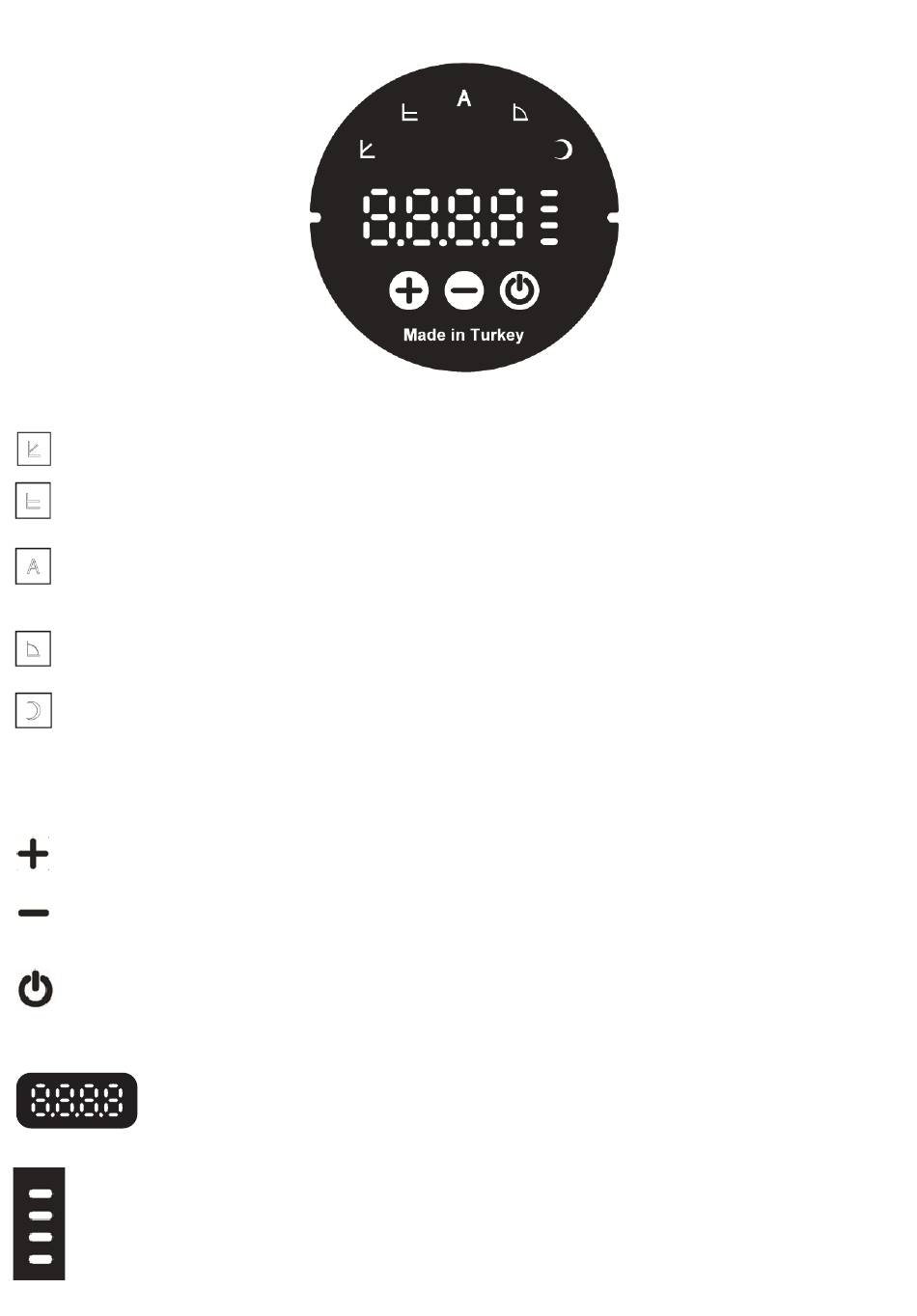

Keypad Introduction:
This key also works as the Start key. It is used to increase value.
Used to decrease value.
At the same time, by holding it pressed for 2 seconds, the value options on the
display panel are changed.
This button is used to Stop the Pump. At the same time, it is pressed for
2 seconds to enter the parameter menu.
Information Screen:
The information screen shows the pump status, stop - start etc.
all information such as appears on this screen.
Display panel lights definition:
1. When the light in the first row turns on, the value on the display panel is the
Watt value drawn from the network.
2. When the next light turns on, the value on the instrument panel is the set pressure meter value.
3. When the next light turns on, the value on the display panel is the DC bus voltage value inside the inverter.
4. When the next light turns on, the value on the instrument panel is the engine speed value.
