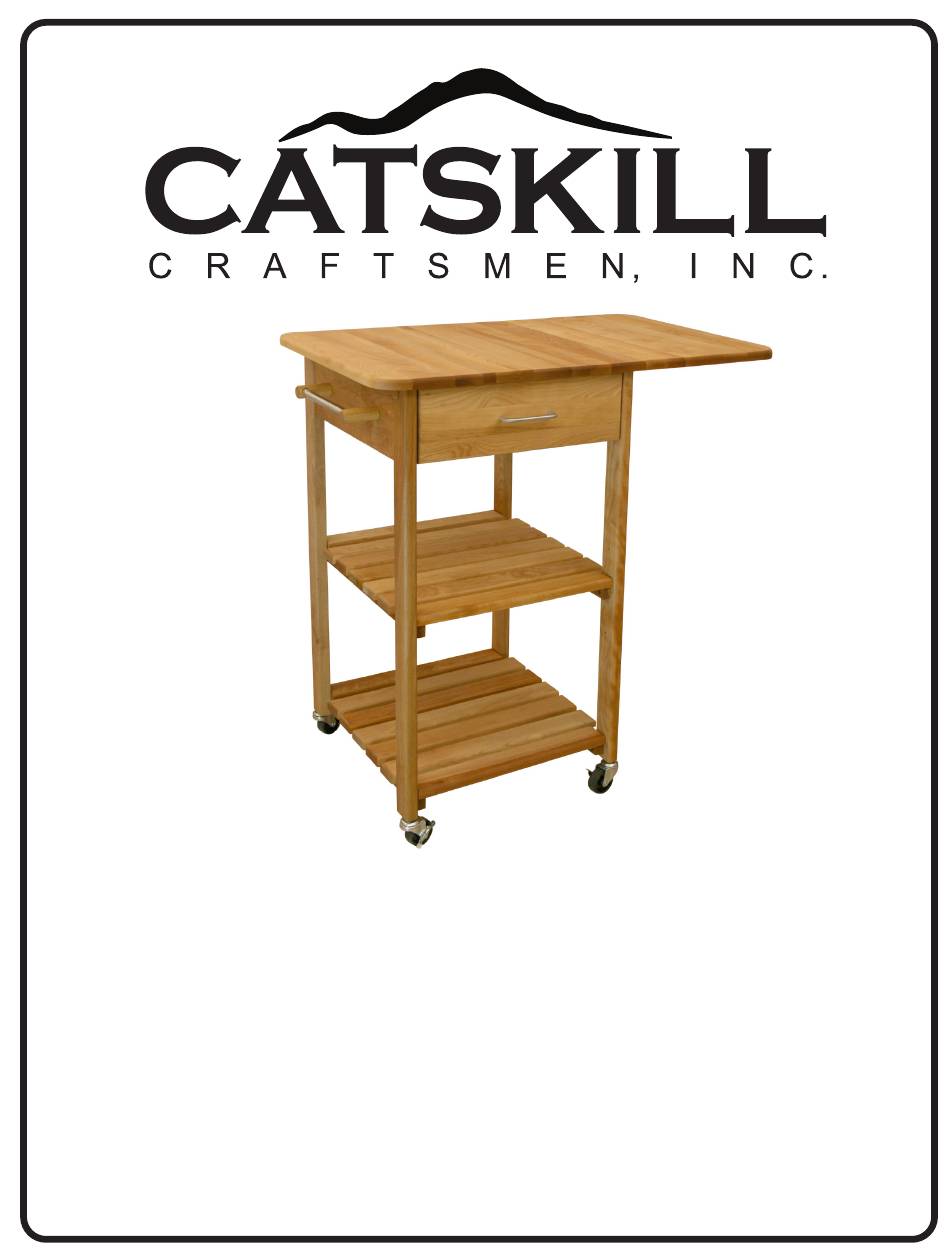

Model 7227
GENERAL:

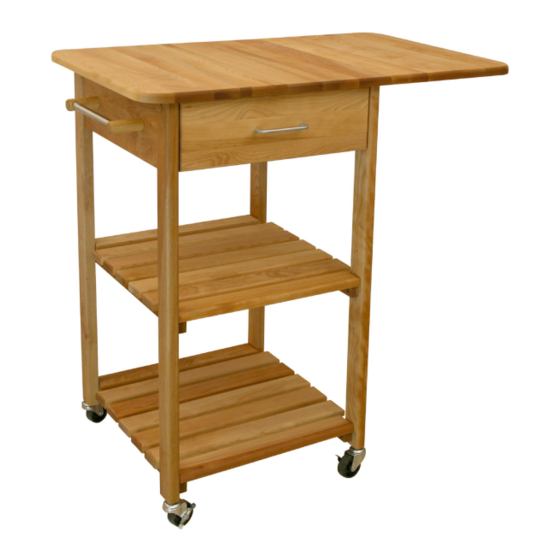

1. You have purchased model 7227. Overall dimensions of an assembled unit is 32 3/4" x 21" x
35 1/2" when drop leaf is down.
2. Should you need assistance or need to replace a damaged or missing part, DO NOT
RETURN THE UNIT TO THE STORE where you purchased it, simply give us a call at
607-652-7321 from 7:30 - 4:00 PM Eastern time and we'll send you the prepaid part via UPS
usually that same day!
3. Read the assembly instructions and the enclosed brochure before beginning assembly.
Assembly is very easy if you read and follow the instructions step by step.
4. Tools required: Phillips screwdrivers, medium and small; medium flat blade screwdriver, pliers
and a hammer.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7227 and is the answer not in the manual?

Questions and answers

Related Manuals for CATSKILL 7227

Summary of Contents for CATSKILL 7227

  • Page 1 Model 7227 GENERAL: 1. You have purchased model 7227. Overall dimensions of an assembled unit is 32 3/4” x 21” x 35 1/2” when drop leaf is down. 2. Should you need assistance or need to replace a damaged or missing part, DO NOT RETURN THE UNIT TO THE STORE where you purchased it, simply give us a call at 607-652-7321 from 7:30 - 4:00 PM Eastern time and we’ll send you the prepaid part via UPS...

  • Page 2: Cabinet Parts

    Drawer Side/Right P/N DS-7227/R Drawer Side/Left P/N DS-7227/L Top Back Brace P/N B-15 7/8-5 3/4-TBK (1) Drawer Back P/N DBK-7227 (1) Top Left Brace P/N B-15 7/8-5 3/4-TS-7227 (1) Drawer Front P/N DF-7227 (1) Drilled for Glide Left Leg Right Leg...
  • Page 3 HARDWARE Hinge (2) 1 3/4” Phillips Flat Head Bolt (4) “Z” Bracket (2) 1 3/4” Phillips Flat Head #8 Screw (2) Handle (1) 5/8” Wooden Disk (4) 1 1/4” Phillips Flat Head #8 Screw (14) 5/8” Phillips Flat Head #8 Screw (18) P/N Drop Leaf Support (1) ( Used on Cabinet Side Glides ) 5/8”...

  • Page 4: Drawer Assembly

    STEP 1 Drawer Assembly: Either Tap in post with a hammer to start and screw down with a screwdriver or with a small allen wrench until the shoulder of the post hits the wood. Then unscrew until the hole is parallel with the groove on the bottom of the Drawer Front.
  • Page 5 TIPS ON HOW THE BASTION FASTENING SYSTEM WORKS 1. The Bastion fastening system consists of a steel post (threaded on one end with a hole through the shaft on the other end); a Barrel Nut (cylindrical barrel-shaped with threaded Illustration Bas. 1 open end &...

  • Page 6: Top Assembly

    STEP 2 Top Assembly: 5/8” #8 STEP 3 Brace Preparation: 3/4” Pin...

  • Page 7: Left Side Assembly

    STEP 4 Left Side Assembly: 1 1/4” #8 Bastion Post Set Screw Barrel Nut 5/8” #6 Screw The glides look almost alike however, they are labeled CR for cabinet right and CL for cabinet left.

  • Page 8: Right Side Assembly

    STEP 5 Right Side Assembly: Bastion Post Set Screw Barrel Nut 5/8” #6 Screw...

  • Page 9: Main Assembly

    STEP 6 Main Assembly: 1 3/4” Machine Screw Inside Brace Side Panel Leg Hex Nut Countersunk Hole in Leg ( disk goes in this hole to hide bolt head! ) Nut Access Hole...
  • Page 10 STEP 7 Shelf Assembly: 1 1/4” #8 1 3/4” #8 5/8” #8...
  • Page 11 STEP 8 Main Assembly: 5/8” Wooden Disk...
  • Page 12 Visa and Address _____________________________ Mastercard are accepted online. City ________________________________ State ________________ Zip ___________ Catskill Craftsmen, Inc. Please make checks payable to Catskill Craftsmen Inc. 15 West End Ave. 15 West End Ave., Stamford, NY 12167-1296 Stamford, NY 12167-1296...
