CATSKILL 72265 Quick Start Manual

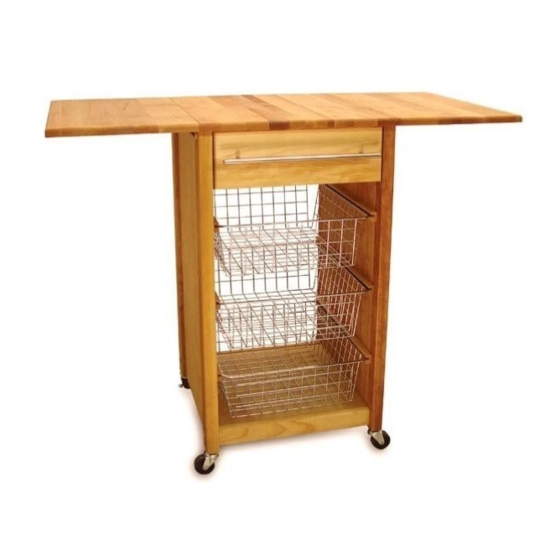

Drop leaf kitchen cart with baskets
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual

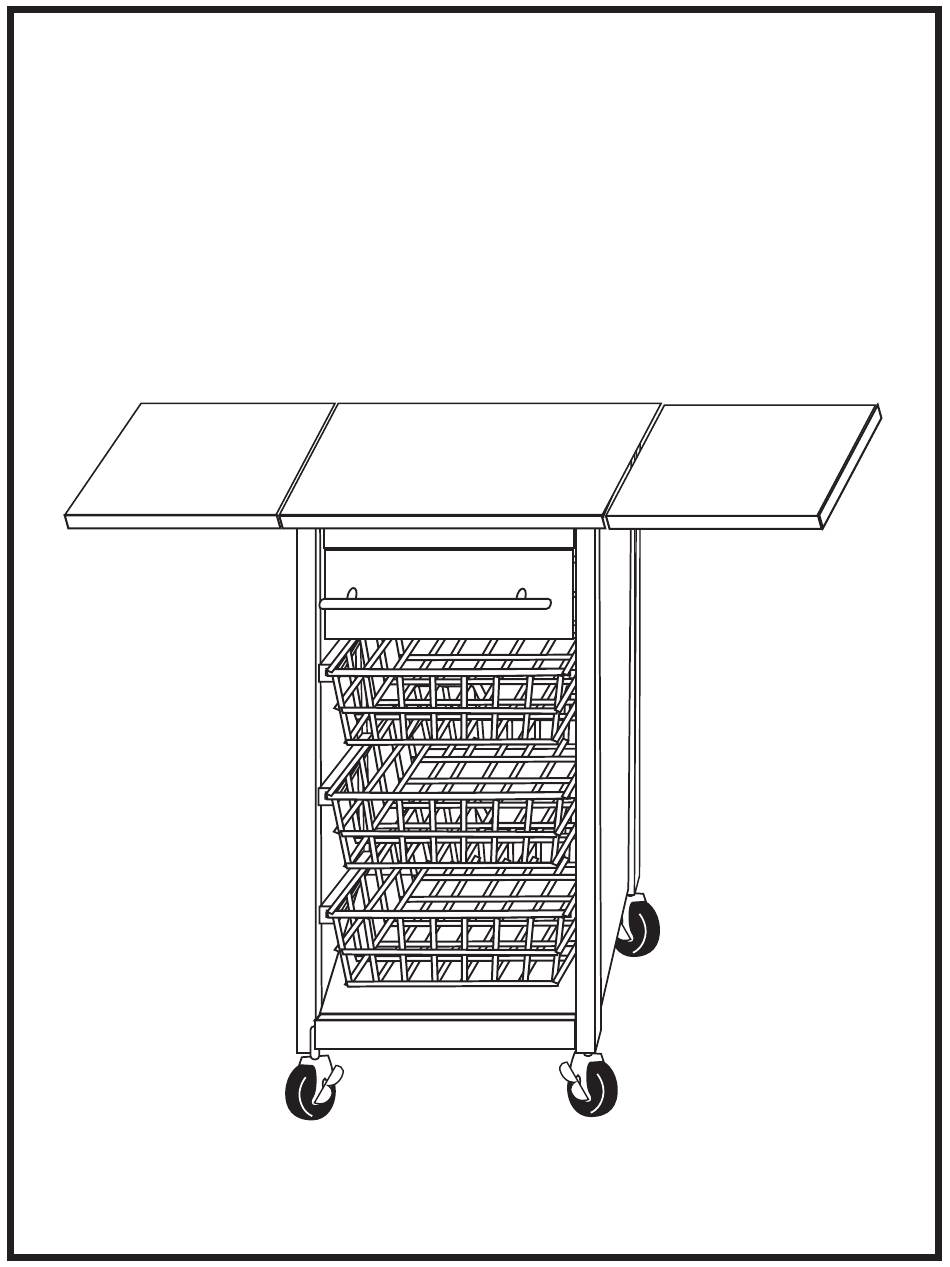

DROP LEAF KITCHEN CART
WITH BASKETS
Model 72265

Advertisement

loading
Need help?

Need help?

Do you have a question about the 72265 and is the answer not in the manual?

Questions and answers

Related Manuals for CATSKILL 72265

Summary of Contents for CATSKILL 72265

  • Page 1 DROP LEAF KITCHEN CART WITH BASKETS Model 72265...

  • Page 2: Parts List

    (6) 3/4” (19mm) Steel Pin (4) 1” (25mm) Steel Pin HINGE PACK (12) 1-1/4” (32mm) Phillips Head #8 Screws (4) 1“ (25mm) Phillips Head #8 Screws (4) 72265 Hinges (8) 5/8” (16mm) disks (16) 5/8” (16mm) Phillips Head #6 Screws...
  • Page 3 Exploded Base Illustration Illustration Bas. 1 Illustration Bas. 3 WRONG! Post needs to be screwed deeper. WRONG! Post needs to be backed out. Illustration Bas. 2 Exploded Drawer Illustration CORRECT! Set screw secures post properly.
  • Page 4 Step 1 Assemble Drawer A. Attach the Drawer Back to the Left and Right Drawer Sides with four 1 ¼” (32mm) #8 Screws. Make sure the slots that run the length of the Sides are aligned with the slot in the Drawer Back Illustration 1-A to accept the Drawer Bottom.
  • Page 5 1” screw used here Left Assembly Step 2 Attach Drawer and Basket Supports to Side Panels A. Using 1” (25mm) Phillips flat head #8 screw, attach the basket supports to the side panel. B. Using 1 1/4” (25mm) Phillips flat head #8 screw, attach the drawer guide support stick to the side panel (see Illustration 2-B 1 1/4”...
  • Page 6 Step 3 Attach Front and Back Braces A. Tap 3/4” (19mm) steel pins into front and back braces. Align pins with pilot holes on side panels. B. Using 1-3/4” (44mm) Phillips flat head bolt and hex nut, attach the top and bottom back braces.
  • Page 7 Step 4 Attach Hardware and Drop Leaves to Top A. Place the top and 2 drop leaves upside down on a flat surface. Install hinges using 5/8” #6 screws. Fasten the Drop Leaf supports using 5/8” (16mm) #8 screws. Loosley attach the “Z”...
  • Page 8 Step 6 Attach the Casters A.Tap in Caster Sleeves with a hammer, careful not to bend the sleeve teeth. Slide the Casters into the sleeves and give a light tap to snap into place.
  • Page 9 Step 7 Add Bottom Shelf A.Tap 1” (25mm) steel pins into the pilot holes on the bottom front and back braces. Place bottom shelf onto pins. Step 8 Insert Drawer, Baskets and Wooden Plugs A.Tip the drawer up at an angle to insert the drawer glides properly.
