Assembly Instructions
Model 7226

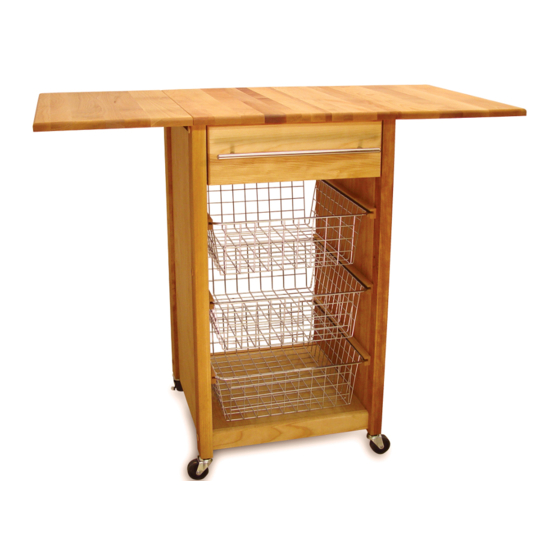

Contemporary Basket Cart with Drop Leaves
GENERAL:
1. You have purchased model 7226. Overall dimensions of an assembled unit is 44" x 20" x 34.5"
when drop leaves are up.
2. Should you need assistance or need to replace a damaged or missing part, DO NOT RETURN
THE UNIT TO THE STORE where you purchased it, simply give us a call at 607-652-7321 from
7:30 - 4:00 PM Eastern time and we'll send you the prepaid part via UPS usually that same day!
3. Read the assembly instructions and the enclosed brochure before beginning assembly.
Assembly is very easy if you read and follow the instructions step by step.
4. Tools required: Phillips screwdrivers, medium and small; medium flat blade screwdriver, pliers
and a hammer.
Advertisement
Related Manuals for CATSKILL 7226
Summary of Contents for CATSKILL 7226
- Page 1 Contemporary Basket Cart with Drop Leaves GENERAL: 1. You have purchased model 7226. Overall dimensions of an assembled unit is 44” x 20” x 34.5” when drop leaves are up. 2. Should you need assistance or need to replace a damaged or missing part, DO NOT RETURN THE UNIT TO THE STORE where you purchased it, simply give us a call at 607-652-7321 from 7:30 - 4:00 PM Eastern time and we’ll send you the prepaid part via UPS usually that same day!
-
Page 2: Cabinet Parts
Top Front Brace (1) P/N B-15 7/8-1 1/4-TF Drawer Side/Left (1) P/N DS-7221/L Side Panel (2) Drawer Glide Support Stick (2) P/N SP 7226 P/N DSS 7226 Drawer Side/Right (1) P/N DS-7221/R Basket Rails (6) Bottom Shelf (1) P/N BR-17-1 5/8... - Page 3 CABINET HARDWARE Drawer 5/8” Wooden Disk (8) 1 3/4” Phillips Flat Head Bolt (8) Cabinet Drawer Glide (2 Sets ) 10-24 Hex Nut (8) Note: The glides look almost alike 1 3/4” Phillips Flat Head #8 Screw (2) however, the right glide (as you face the cart) has a rolled lip at the top of the glide that keeps the drawer glide wheel in place.
-
Page 4: Drawer Assembly
STEP 1 Drawer Assembly Tap in post with a hammer to start and screw down with a screwdriver or with a small allen wrench until the shoulder of the post hits the wood. Then unscrew until the hole is parallel with the groove on the bottom of the Drawer Front. - Page 5 TIPS ON HOW THE BASTION FASTENING SYSTEM WORKS 1. The Bastion fastening system consists of a steel post (threaded on one end with a hole through the shaft on the other end); a Barrel Nut (cylindrical barrel-shaped with Illustration Bas. 1 threaded open end &...
- Page 6 STEP 2 Attach Drawer and Basket Supports to Side Panels Left Assembly A. Using 1” Phillips Flat Head #8 screw attach the basket supports to the side panel. B. Using 1 1/4” Phillips Flat Head #8 screw attach the drawer glide support 5/8”...
-
Page 7: Top Assembly
Step 3 Attach Front and Back Braces 1 3/4” Machine Screw 1 3/4” Machine Screw A. Tap 3/4” steel pins into front and back braces. Align pins with pilot holes on side panels. bolt and hex nut, attach the top and bottom back braces. - Page 8 Step 5 Attach Top to Cart A. Invert the Cart Base and position onto the Cart top. Fit the “Z” brackets into the slot across the top back brace. Align the holes in the top front brace with the pilot holes at the front of the cart top.
- Page 9 Step 7 Drawer and Bottom Shelf B. Insert the Bottom Shelf onto the shelf support pins. C. Insert the Wire Baskets into the Basket Rails. D. Insert the wooden disks into the 8 machine screw holes. Tap in with a hammer. NOTE: It may be a good idea to tighten all machine screws prior to inserting the wooden disks.
- Page 10 Catskill Craftsmen’s factory. For Please send me______# of bottle(s) of the one eight ounce (8 fl. oz.) bottle, which Catskill Craftsmen Butcher Block Oil at $7.95 is sufficient for two applications, simply per bottle. My check or money order is send $7.95 along with the completed...
