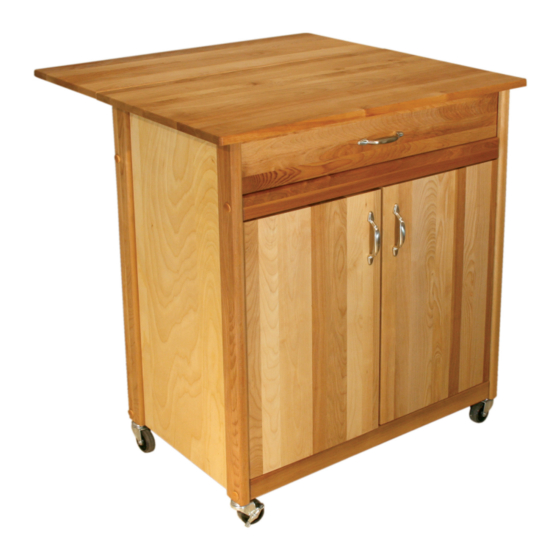

Mid-sized two door cart with drop leaf
Hide thumbs

Advertisement

Quick Links

Download this manual

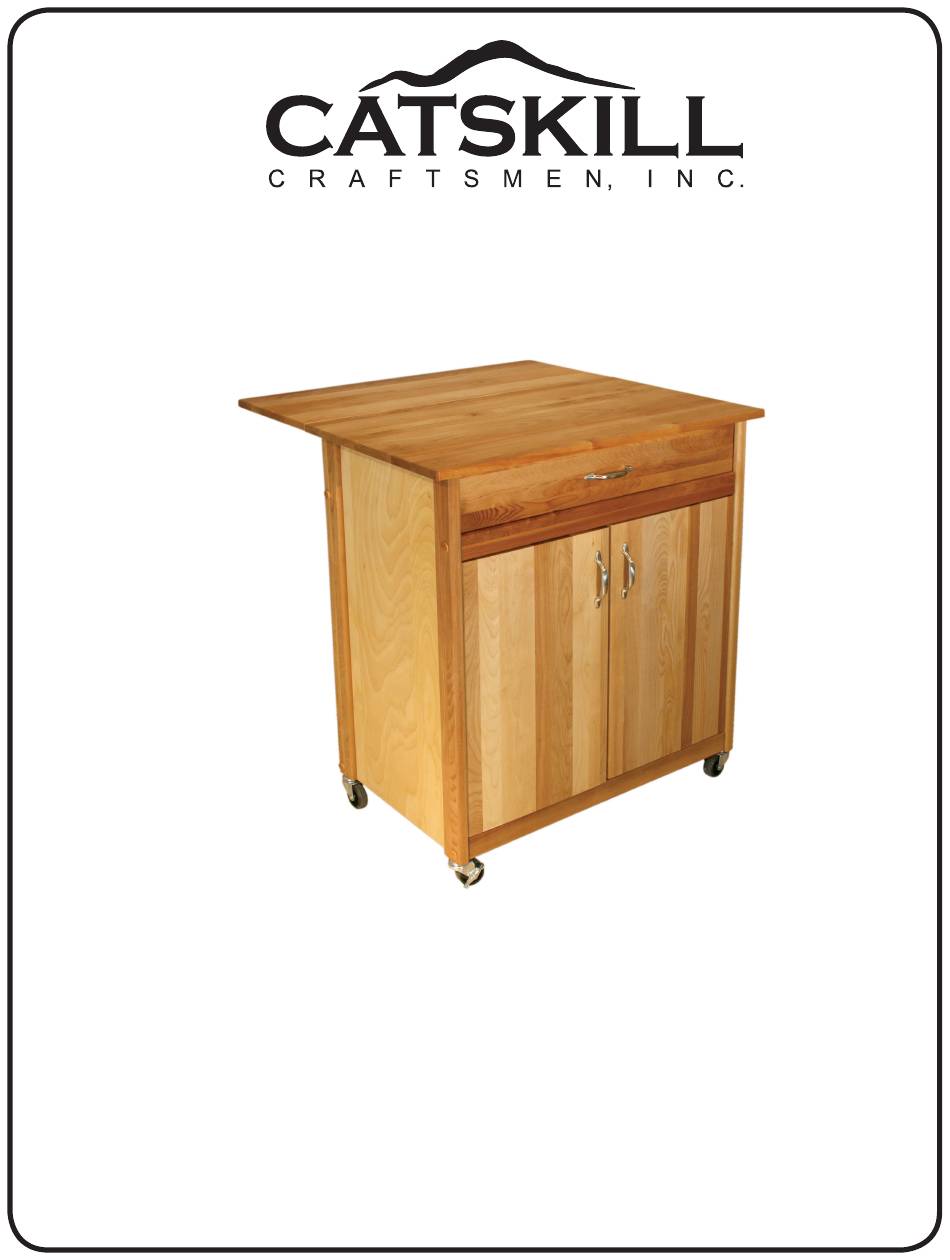

Assembly Instructions
Model 51533
Mid-Sized Two Door Cart with Drop Leaf
GENERAL:
1. You have purchased model 51533.
2. Should you need assistance or need to replace a damaged or missing part simply give us a call M-F at
607-652-7321 from 7:30 am - 4:30 pm EST and we'll send you the prepaid part via UPS usually that same day!
You may also email us info@catskillcraftsmen.com.
3. Read the assembly instructions and the enclosed brochure before beginning assembly. Assembly is easy if
you read and follow the instructions step by step. See our website www.catskillcraftsmen.com for assembly tips
and videos.
4. The only tools needed are a hammer, a small and a medium Phillips head screwdriver and a medium flat blade
screwdriver. A pencil is also needed. A power screwdriver will speed assembly but is not required. Tip: Place a
few drops of vegetable oil on the threads of wood screws before screwing them into the solid hardwood pieces.
5. Glides are sometimes pre-packed with screws - these are not used.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 51533 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CATSKILL 51533

Summary of Contents for CATSKILL 51533

  • Page 1 Mid-Sized Two Door Cart with Drop Leaf GENERAL: 1. You have purchased model 51533. 2. Should you need assistance or need to replace a damaged or missing part simply give us a call M-F at 607-652-7321 from 7:30 am - 4:30 pm EST and we’ll send you the prepaid part via UPS usually that same day! You may also email us info@catskillcraftsmen.com.
  • Page 2 Handle Side Panel (1) Plain Side Panel (1) Back Panel (1) P/N:DBOT-51533 P/N:SP/HDL-51533 P/N:SP/PL-51533 P/N:BP-51533 Glide Support Sticks (2) P/N: GLD SUP - 51533 Left Door (1) Right Door (1) P/N:DOR-51533/L P/N:DOR-51533/R Drop Leaf (1) Table Top (1) P/N:DL-51533 P/N:TT-51533...

  • Page 3: Table Of Contents

    HARDWARE 51533 Drawer 1 3/4” Phillips Flat Head Bolt (8) (Used to attach drawer back) 1 1/2” Phillips Flat Head #8 Screw (4) Cabinet Hinge (2) (Used to attach Drawer Glide (1 Set ) drawer front) Cam Posts (2) (Used to attach glide supports) 1 1/4”...

  • Page 4: Drawer

    STEP 1 A. Decide which side to put the towel bar on. Attach a Glide Support Stick to the top of each Side Panel using 1 1/4” #8 screws. The countersunk holes (reamed out) in the stick are positioned as in illustration 1 so that the glide holes are toward the lower edge.

  • Page 5: Phillips Flat Head

    STEP 2 A. Lay back panel flat on a smooth surface with holes up. B. Attach both side panels (glide wheels go toward front of cart) with 1 3/4” bolts and hex nuts. After inserting bolts through the holes in the side panels, through the holes in the long edges of the back panel, place a hex nut on the tip of your finger, align nut with bolt and tighten.

  • Page 6: Long 3/16" Dia. Steel

    STEP 5 4 Used in this step A. Turn the side/back 1” Long 3/16” DIA. Steel Pin assembly upside down 4 Used in this step (invert) on top of the 5/8” Phillips Head #7 Screw inverted table top. B. Using the X marks as a guide, insert the tips of the 5/8 #7 screws into the pilot holes through “L”...

  • Page 7: Truss Head Machine

    STEP 8 A. Take the top front brace (with magnet block) insert Insert Brace Pins Here pins into the brace ends. Slide the pins into the slits and slide down into on the inside of the front legs and slide down until correct position.
  • Page 8 STEP 10 Install Doors/Bottom Front Brace A. Install doors by inserting pins in the door tops into the holes in the top front brace. B. Place one washer on each of the door pins in the door bottoms. C. Take the bottom front brace, align pins in door bottoms with holes along top edge of brace (Remember to put the washers on the pins!!!) and secure with...

  • Page 9: Phillips Flat Head #8

    STEP 12 A. Attach the drawer back to the drawer side with four 1 1/4” #8 screws. Make sure parts are aligned as in Illustration 12A. B. Insert drawer bottom into the slots in the drawer sides, best side to inside of the drawer. Slide down until seated in the slot in the drawer back.

  • Page 10: Long 3/16" Dia. Steel

    STEP 13 Install Casters A. Insert and tap caster sockets with a hammer until the teeth grab the wood. DON’T POUND SOCKET FLAT OR CASTER SHAFT WILL NOT ENTER. B. Insert casters and seat by pushing straight downward with the heel of your hand, or tap into place with a hammer.
  • Page 11 Visa and Address _____________________________ Mastercard are accepted online. City ________________________________ State ________________ Zip ___________ Catskill Craftsmen, Inc. Please make checks payable to Catskill Craftsmen Inc. 15 West End Ave. 15 West End Ave., Stamford, NY 12167-1296 Stamford, NY 12167-1296...
