Partition Plate / Sound Blankets

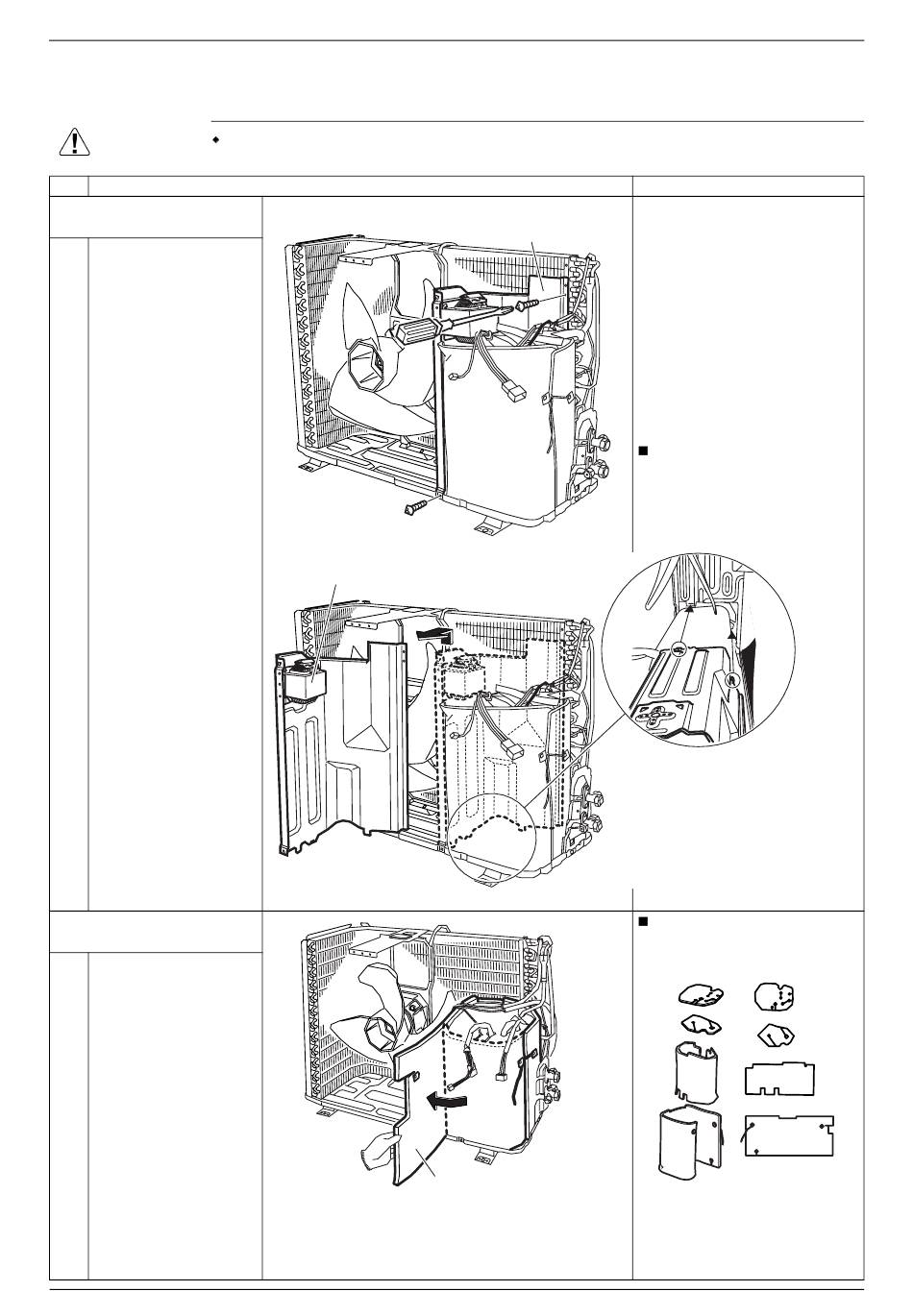

4. Partition Plate / Sound Blankets
Warning
Step
1. Remove the partition
plate.
1 Remove the 2 screws.
The partition plate has
2
hooks on the lower
side. Lift and remove
the partition plate.
Remove the screw to
3
remove the reactor.
2. Remove of the sound
blanket.
1 Remove the sound
blanket (outer).
8
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Reactor
Partition plate
(R12282)
(R14110)
(R12199)
Sound blanket (outer)
Si001277
Points
When reassembling, fit the
lower hooks into the bottom
frame.
(R14111)
Since the piping ports are
torn easily, remove the
blanket carefully.
(R8180)
Removal Procedure
