Daikin ARXS42G3V1B Service Manual page 9

Si001277

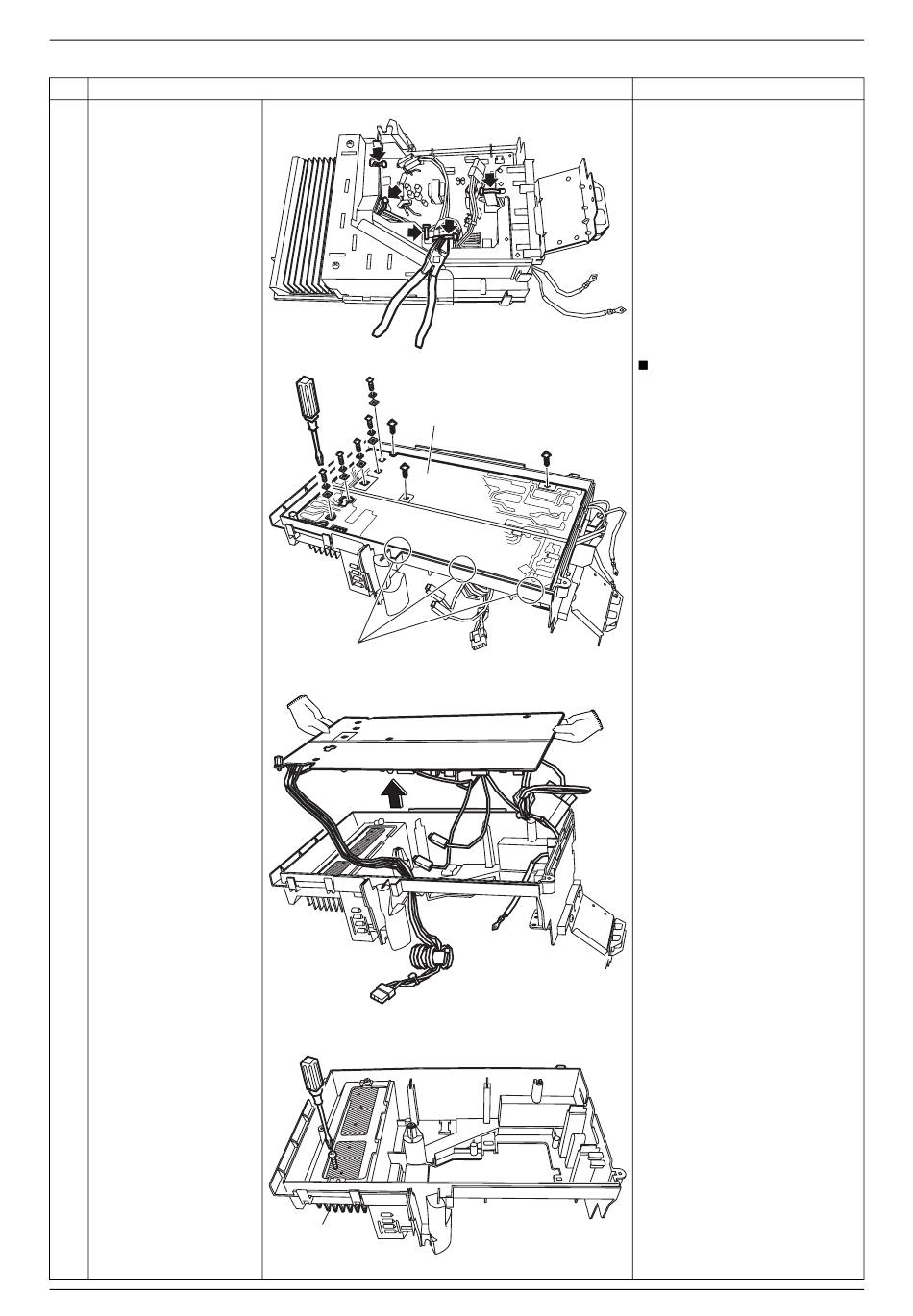

Step
7 Cut the 5 clamps and
disconnect the wire
harnesses.
Remove the 8 screws
8
of the PCB.
9 Lift up the back side
slightly and unfasten
the 3 hooks of the front.
Lift up and remove the
10
PCB.
11 Remove the screw and
remove the radiation
fin.
Removal Procedure
Procedure
PCB
Hook
Radiation fin
Points
(R8162)
When reassembling, make
sure to fit the 3 hooks of the
electrical box.
(R18671)
(R8168)
(R12214)
PCB
7
