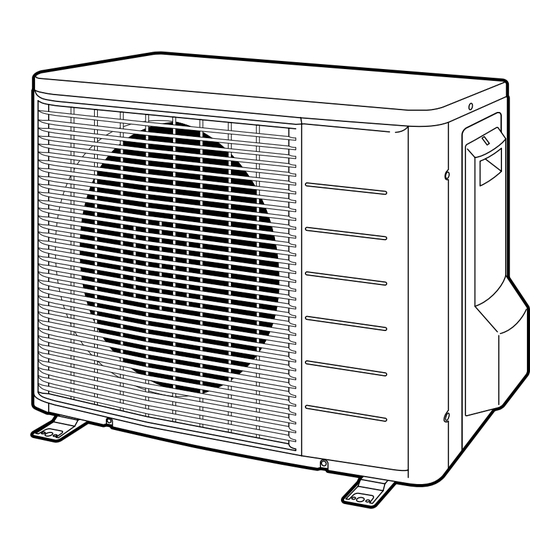

Daikin RXS42K2V1B Installation Manual
Hide thumbs Also See for RXS42K2V1B:

Advertisement

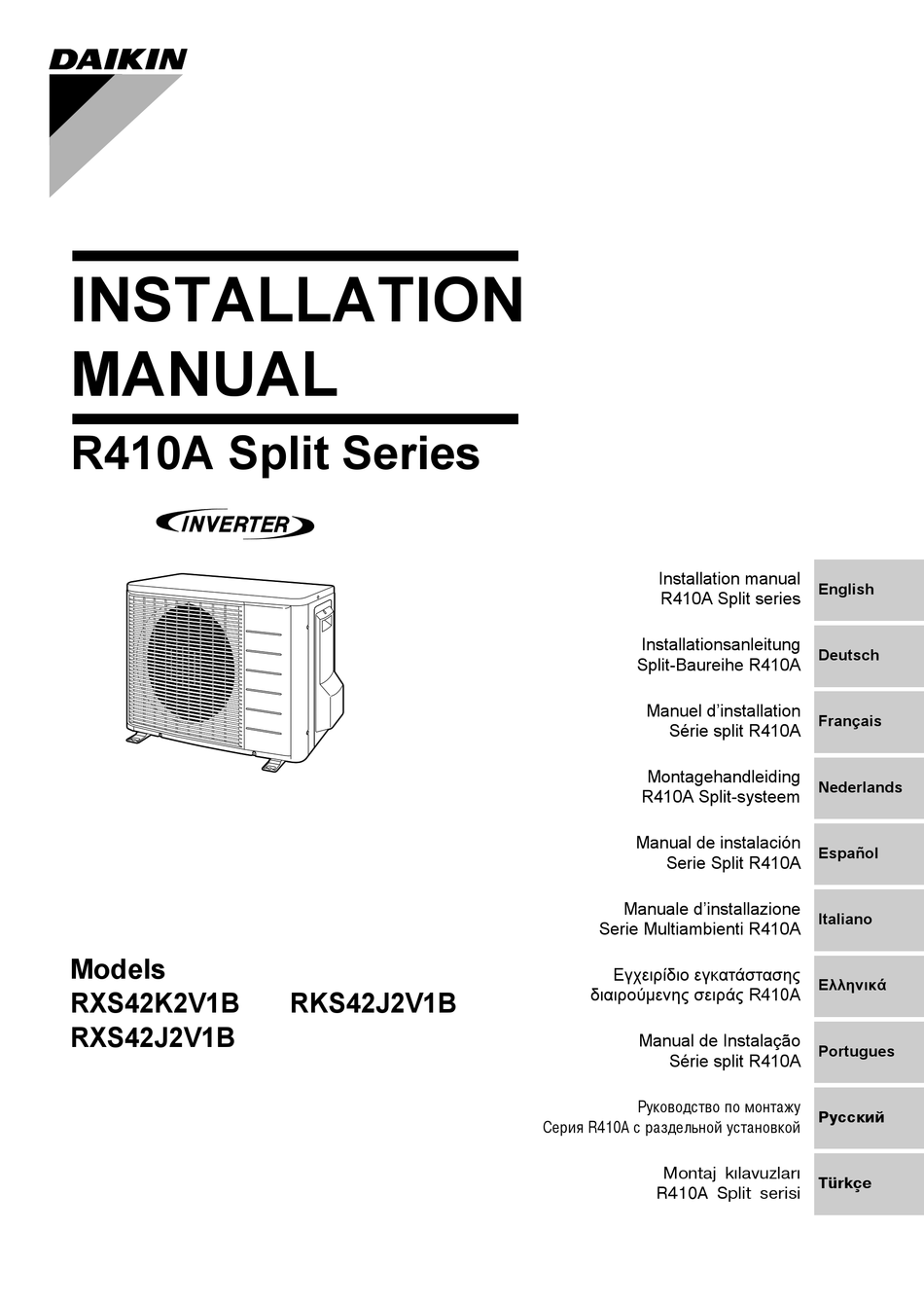

INSTALLATION
MANUAL
R410A Split Series
Models
RXS42K2V1B
RXS42J2V1B
RKS42J2V1B
Installation manual
R410A Split series
Installationsanleitung
Split-Baureihe R410A
Manuel d'installation
Série split R410A
Montagehandleiding
R410A Split-systeem
Manual de instalación
Serie Split R410A
Manuale d'installazione
Serie Multiambienti R410A
Εγχειρßδιο εγκατÜστασηò
διαιροýìενηò σειρÜò R410A
Manual de Instalação
Série split R410A
Рóêоводство по монтажó
Серия R410A с раздельной óстановêой
Montaj kýlavuzlarý
R410A Split serisi
English
Deutsch
Français
Nederlands
Español
Italiano
ΕλληνικÜ
Portugues
Рóссêий
Türkçe

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RXS42K2V1B and is the answer not in the manual?

Questions and answers

Summary of Contents for Daikin RXS42K2V1B

  • Page 1 Manual de instalación Español Serie Split R410A Manuale d’installazione Italiano Serie Multiambienti R410A Models Εγχειρßδιο εγκατÜστασηò ΕλληνικÜ διαιροýìενηò σειρÜò R410A RXS42K2V1B RKS42J2V1B RXS42J2V1B Manual de Instalação Portugues Série split R410A Рóêоводство по монтажó Рóссêий Серия R410A с раздельной óстановêой Montaj kýlavuzlarý...
  • Page 2 3SB64564-13E...
  • Page 3 3SB65451-19F...
  • Page 5: Safety Precautions

    Safety Precautions • The precautions described herein are classified as WARNING and CAUTION. They both contain important information regarding safety. Be sure to observe all precautions without fail. • Meaning of WARNING and CAUTION notices WARNING ..Failure to follow these instructions properly may result in personal injury or loss of life. CAUTION ..
  • Page 6: Precautions For Selecting The Location

    Accessories Accessories supplied with the outdoor unit: (A) Installation manual (B) Drain plug (Heat pump model) (C) Refrigerant charge label There is on the bottom packing case. (D) Multilingual fluorinated greenhouse gases label Precautions for Selecting the Location 1) Choose a place solid enough to bear the weight and vibration of the unit, where the operation noise will not be amplified. 2) Choose a location where the hot air discharged from the unit or the operation noise will not cause a nuisance to the neighbours of the user.
  • Page 7: Outdoor Unit Installation Drawings

    Outdoor Unit Installation Drawings Max. allowable length Min. allowable length 1.5m Wrap the insulation pipe with Max. allowable height the finishing tape from bottom Additional refrigerant to top. required for refrigerant 20g/m pipe exceeding 10m in length. Gas pipe O.D. 9.5mm Liquid pipe O.D.
  • Page 8: Precautions On Installation

    Installation Guidelines • Where a wall or other obstacle is in the path of outdoor unit’s inlet or outlet airflow, follow the installation guidelines below. • For any of the below installation patterns, the wall height on the outlet side should be 1200mm or less. Wall facing one side Walls facing two sides More than 50...
  • Page 9: Refrigerant Piping

    Outdoor Unit Installation Flaring the pipe end 1) Cut the pipe end with a pipe cutter. (Cut exactly at right angles.) Remove burrs. 2) Remove burrs with the cut surface facing downward so that the chips do not enter the pipe. Flaring Set exactly at the position shown below.
  • Page 10 Purging air and checking gas leakage • When piping work is completed, it is necessary to purge the air and check for gas leakage. WARNING • Do not mix any substance other than the specified refrigerant (R410A) into the refrigeration cycle. •...
  • Page 11: Refrigerant Piping Work

    Outdoor Unit Installation Refilling the refrigerant Check the type of refrigerant to be used on the machine nameplate. Precautions when adding R410A Fill from the gas pipe in liquid form. It is a mixed refrigerant, so adding it in gas form may cause the refrigerant composition to change, preventing normal operation. 1) Before filling, check whether the cylinder has a siphon attached or not.
  • Page 12: Pump Down Operation

    Pump Down Operation In order to protect the environment, be sure to pump down when relocating or disposing of the unit. 1) Remove the valve cap from liquid stop valve and gas stop valve. 2) Carry out forced cooling operation. Hexagonal wrench 3) After 5 to 10 minutes, close the liquid stop valve with a hexagonal wrench.
  • Page 13: Facility Setting (Cooling At Low Outdoor Temperature)

    Facility Setting (cooling at low outdoor temperature) This function is limited only for facilities (the target of air conditioning is equipment (such as computer)). Never use it in a residence or office (the space where there is a human). ■ Cutting jumper4 (J4) on the circuit board will expand the operation range down to –15°C. However it will stop if the outdoor temperature drops below –20°C and start back up once the temperature rises again.
  • Page 14 Wiring WARNING • Do not use tapped wires, stranded wires, extension cords, or starburst connections, as they may cause overheating, electrical shock, or fire. • Do not use locally purchased electrical parts inside the product. (Do not branch the power for the drain pump, etc., from the terminal block.) Doing so may cause electric shock or fire.
  • Page 15: Trial Operation And Testing

    Trial Operation and Testing Trial operation and testing 1-1 Measure the supply voltage and make sure that it falls in the specified range. 1-2 Trial operation should be carried out in either cooling or heating mode. ■ For heat pump •...
  • Page 16 Two-dimensional bar code is a code for manufacturing. 3P203824-12L M12B149 (1210) HT...
