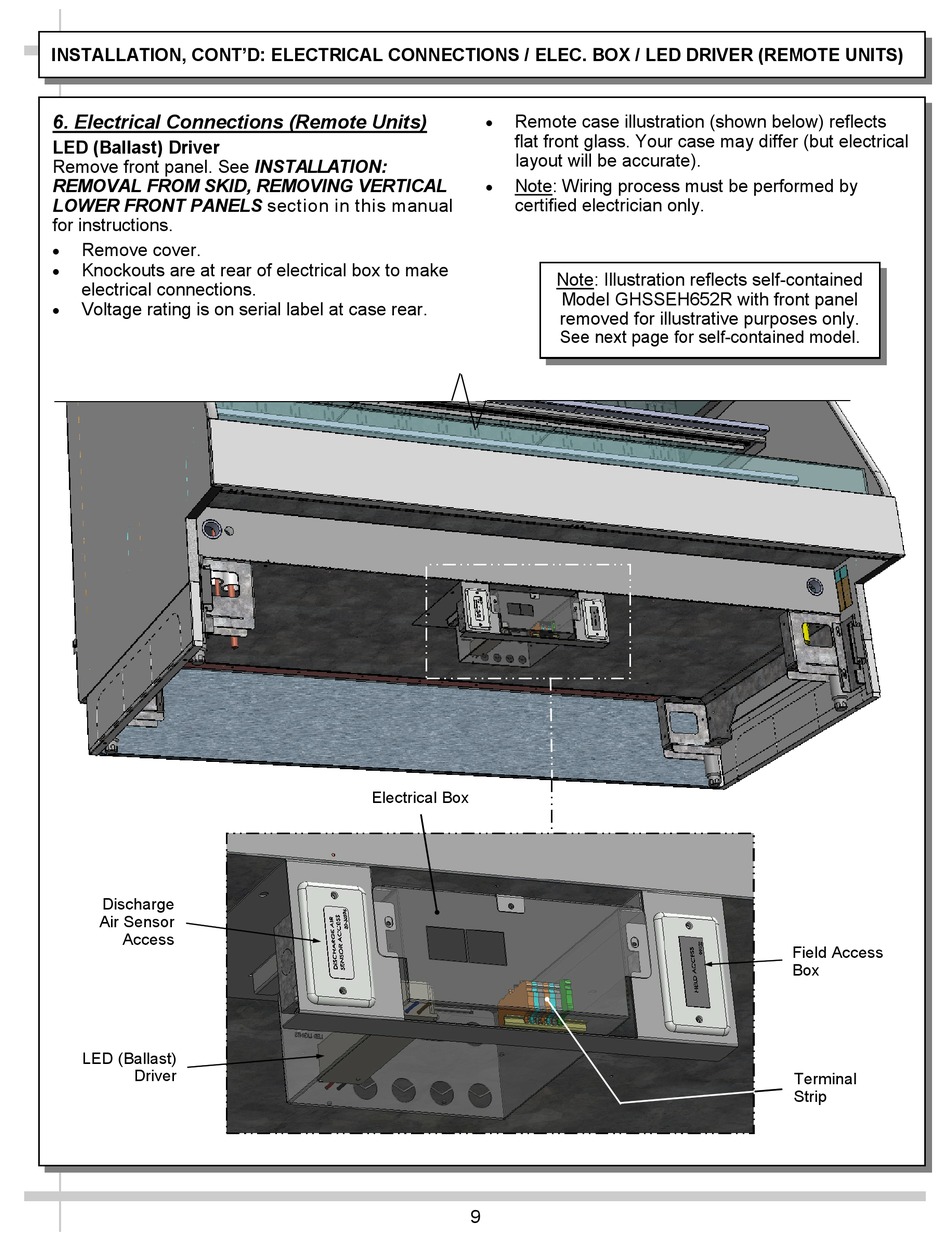

INSTALLATION, CONT'D: ELECTRICAL CONNECTIONS / ELEC. BOX / LED DRIVER (REMOTE UNITS)
6. Electrical Connections (Remote Units)
LED (Ballast) Driver
Remove front panel. See INSTALLATION:
REMOVAL FROM SKID, REMOVING VERTICAL
LOWER FRONT PANELS section in this manual
for instructions.
 Remove cover.
 Knockouts are at rear of electrical box to make
electrical connections.
 Voltage rating is on serial label at case rear.
Discharge
Air Sensor
Access
LED (Ballast)
Driver
 Remote case illustration (shown below) reflects
flat front glass. Your case may differ (but electrical
layout will be accurate).
 Note: Wiring process must be performed by
certified electrician only.
Electrical Box
9
Note: Illustration reflects self-contained
Model GHSSEH652R with front panel
removed for illustrative purposes only.
See next page for self-contained model.
Field Access
Box
Terminal
Strip
