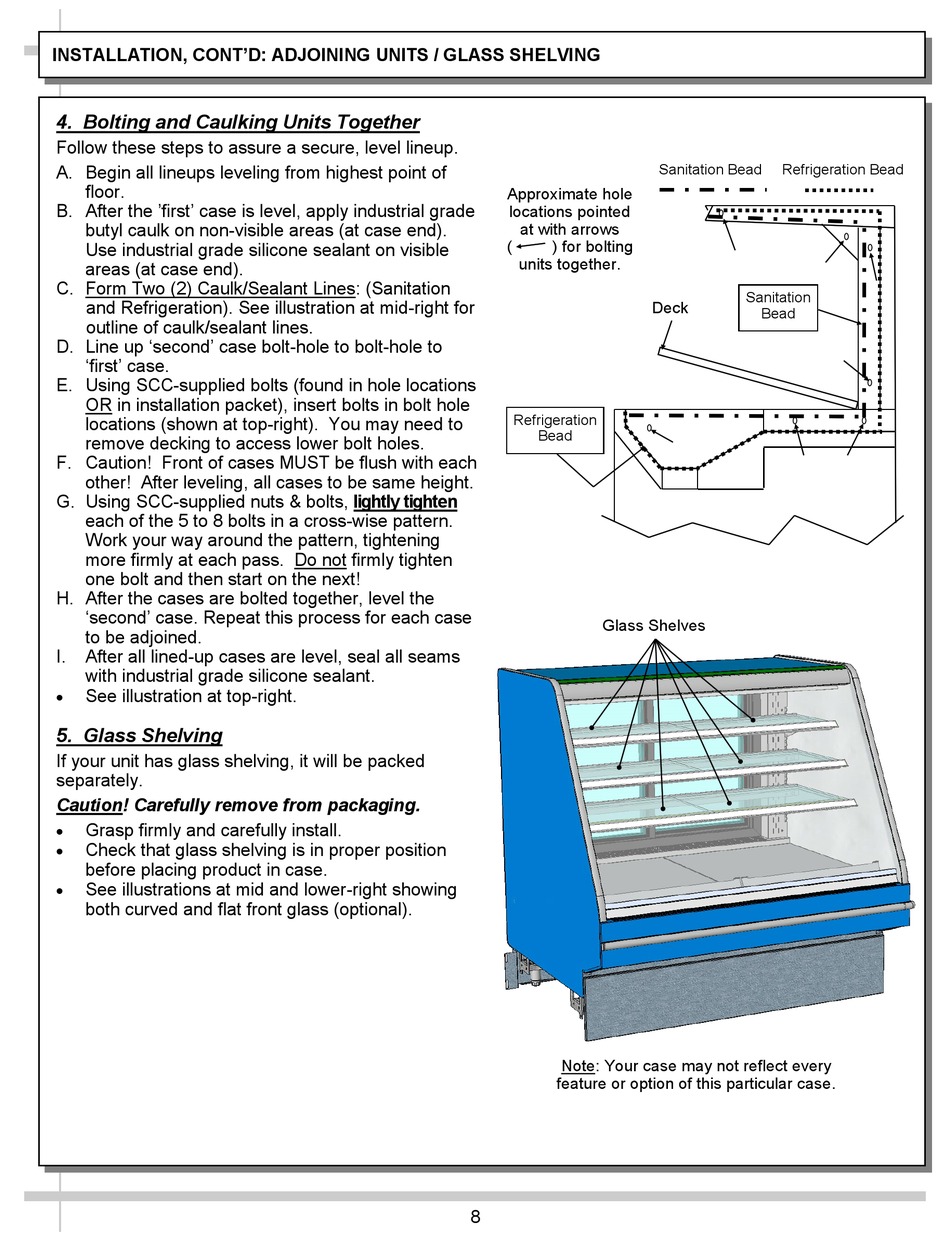

INSTALLATION, CONT'D: ADJOINING UNITS / GLASS SHELVING
4. Bolting and Caulking Units Together
Follow these steps to assure a secure, level lineup.
A. Begin all lineups leveling from highest point of

floor.

B. After the 'first' case is level, apply industrial grade
butyl caulk on non-visible areas (at case end).
Use industrial grade silicone sealant on visible
areas (at case end).
C. Form Two (2) Caulk/Sealant Lines: (Sanitation
and Refrigeration). See illustration at mid-right for
outline of caulk/sealant lines.
D. Line up 'second' case bolt-hole to bolt-hole to
'first' case.
E. Using SCC-supplied bolts (found in hole locations
OR in installation packet), insert bolts in bolt hole
locations (shown at top-right). You may need to
remove decking to access lower bolt holes.
F. Caution! Front of cases MUST be flush with each
other! After leveling, all cases to be same height.
G. Using SCC-supplied nuts & bolts, lightly tighten
each of the 5 to 8 bolts in a cross-wise pattern.
Work your way around the pattern, tightening
more firmly at each pass. Do not firmly tighten
one bolt and then start on the next!
H. After the cases are bolted together, level the
'second' case. Repeat this process for each case
to be adjoined.
I. After all lined-up cases are level, seal all seams
with industrial grade silicone sealant.
 See illustration at top-right.
5. Glass Shelving
If your unit has glass shelving, it will be packed
separately.
Caution! Carefully remove from packaging.
 Grasp firmly and carefully install.

Check that glass shelving is in proper position
before placing product in case.
 See illustrations at mid and lower-right showing
both curved and flat front glass (optional).
Approximate hole
locations pointed
at with arrows
( ) for bolting
units together.
Refrigeration
Bead
Glass Shelves
Note: Your case may not reflect every
feature or option of this particular case.
8
Sanitation Bead Refrigeration Bead
Sanitation
Deck
Bead
