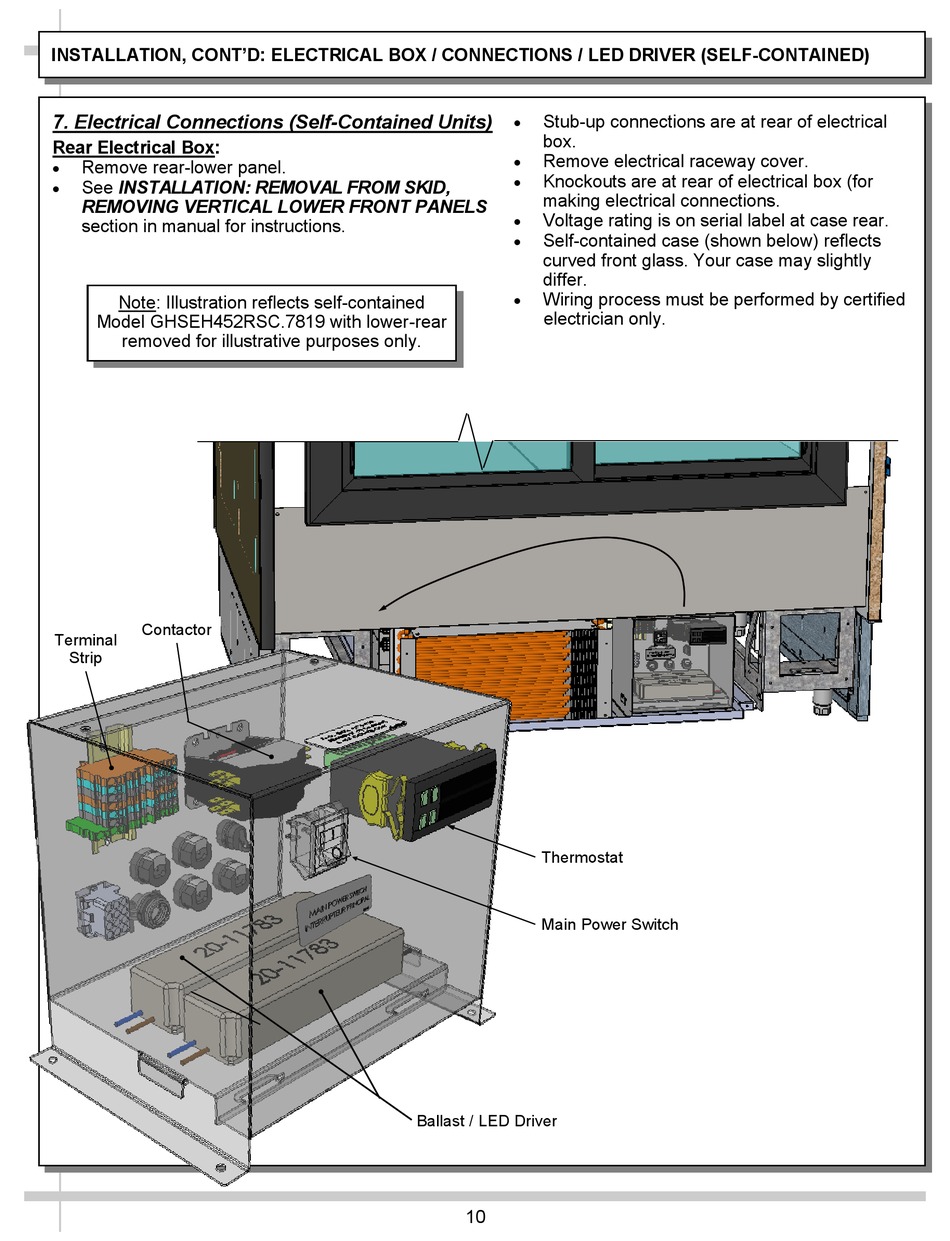

INSTALLATION, CONT'D: ELECTRICAL BOX / CONNECTIONS / LED DRIVER (SELF-CONTAINED)
7. Electrical Connections (Self-Contained Units)
Rear Electrical Box:
 Remove rear-lower panel.
 See INSTALLATION: REMOVAL FROM SKID,
REMOVING VERTICAL LOWER FRONT PANELS
section in manual for instructions.
Note: Illustration reflects self-contained
Model GHSEH452RSC.7819 with lower-rear
removed for illustrative purposes only.
Contactor
Terminal
Strip
 Stub-up connections are at rear of electrical
box.
 Remove electrical raceway cover.
 Knockouts are at rear of electrical box (for
making electrical connections.
 Voltage rating is on serial label at case rear.
 Self-contained case (shown below) reflects
curved front glass. Your case may slightly
differ.
 Wiring process must be performed by certified
electrician only.
Thermostat
Main Power Switch
Ballast / LED Driver
