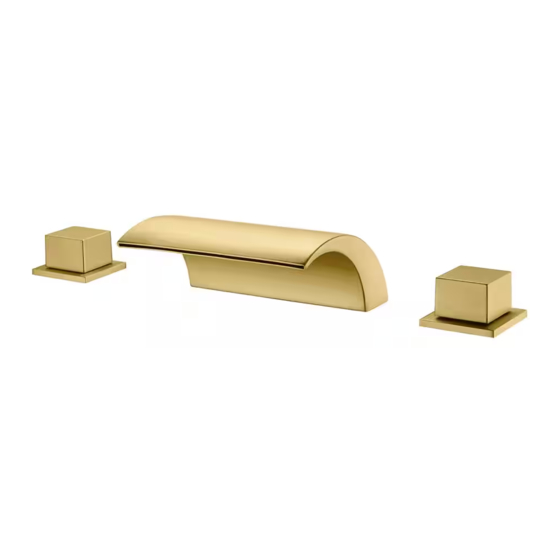

- Page 1 MODEL: S2091XW Version: 1.3 INSTALLATION GUIDE ROMAN WATERFALL BATHTUB FAUCET MODEL FINISH S2091CW CHROME S2091NW BRUSHED NICEKL S2091DW MATTE BLACK S2091BGW BRUSHED GOLD SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
-
Page 2: Before Proceeding
THANK YOU Dear Valued Customer, SUMERAIN would like to take this opportunity to thank you for purchasing SUMERAIN products. It is our sincere hope that you are completely satisfied with your new purchase. All SUMERAIN products are carefully engineered, and factory tested to provide long trouble-free use under normal conditions. This product is easy to install using basic tools and our easy to follow illustrated instructions. -
Page 3: Limited Lifetime Consumer Warranty
If a defect is found in normal residential use, SUMERAIN will, at its election, repair, provide a replacement part or product, or make appropriate adjustment. - Page 4 Stainless steel Spout Material Spout Net Weight 0.8 KG [ 1.76lbs ] Gross Weight 2.3 KG [ 5.1lbs ] Working water press 0.2 ~0.8 Mpa Spout Flow Rate 14.2GPM [53.7L/M]@60PSI 305mm[12”]x 220mm[8-11/16”] x 150mm[5-7/8”] Packing box size SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 5 DIMENSION Front view of faucet 】 Side view of faucet SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 6 MOUNTING HOLES DIMENSION MAX DECK THICKNESS SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
-
Page 7: Installation Steps
Set screws 2PCS 2091013 2091014 Allen wrench 1PCS G1/2’’ hose(300mm) 2PCS 2091015 2091016 Screw cover 2PCS Rubber washer 1PCS 2091017 2091018 If any of these items are missing, please contact SUMERAIN consumer service by email to: supports@sumerain.com SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM... - Page 8 4. INSTALLATION HOLES INSPECTION Verify that the hole sizes and positions in the wall are correct, the optimal diameter of mounting hole optional is 32mm(1-1/4”),the max deck thickness is 32mm(1-1/4”) . SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
-
Page 9: Installation
3~5 minutes to flush out dirt and debris. Shut off the water supply again after finish. 5.2 Position spout onto the hole of mounting surface, attach rubber washer on spout shank and fasten with spout shank locknut by wrench from underneath. SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM... - Page 10 5.4 Place the valve body onto mounting surface, attach the rubber washer and locknut from underneath of mounting surface, Then reposition escutcheons as necessary to a desired height. Repeat the same procedure for the right cold valve assembly. SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 11 5.5 Attach the rubber washer into the T-tee for water leak proof. 5.6 Screw on T-tee onto the spout shank. SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 12 5.8 Connect hot valve body’s inlet connector and cold water valve inlet connector to stop valve separately with flexible hose. The water inlet connecting of hot and cold Valve body is G1/2” [1/2 BSPP], US, CA customers may require NPT cover to BSPP adapter for connecting. SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
-
Page 13: Troubleshooting
6.1 Turn on hold and cold water supply and check all connection for ensuring no leaking anywhere. INSTALL FINISH CLEARNING RECOMMENDATION FOR SUMERAIN PRODUCTS Modern lavatory faucets, kitchen faucets, and showers consist of very different materials to comply with the needs of the market with regard to design and functionality. - Page 14 Handle is loose B. Locate and tighten the hex set screw C. Remove the handle and check for stripped teeth on the stem. HONGKONG SUMERAIN SANITARY INDUSTRY CO..LIMITED Address: ROOM 1018, HOLLYWOOD PLAZA 610 NATHAN ROAD MONGKOK, KL,HONGKONG Factory Address:25 building Tangkou Industrial Park,Shuikou town, Kaiping City,...
