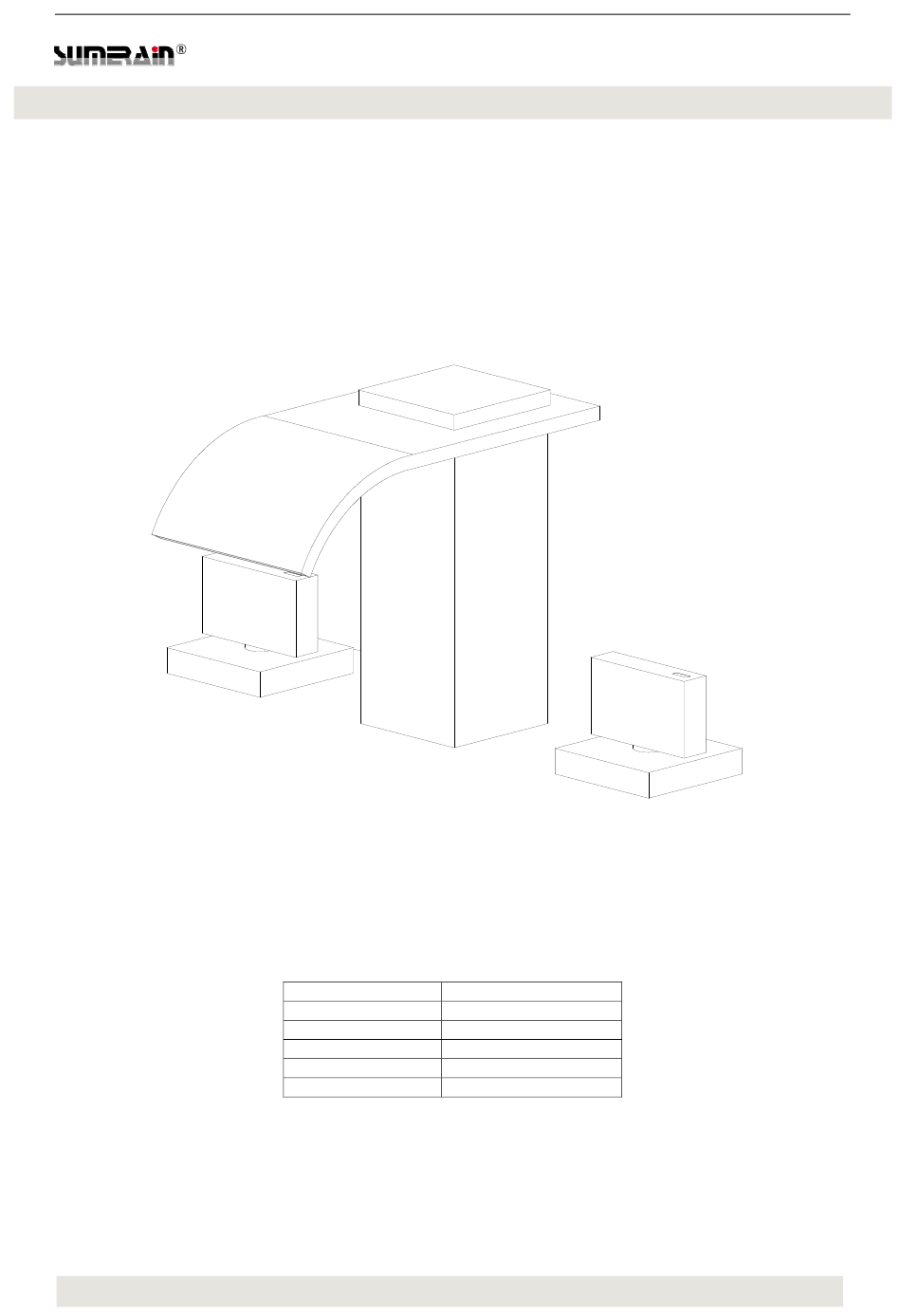

- Page 1 Version: 1.0 INSTALLATION GUIDE ROMAN WATERFALL TUB FAUCET MODEL FINISH S2143CW Chrome S2143NW Brushed Nickel S2143OW Oil Rubbed Bronze S2143DW Matte Black S2143BGW Brushed Gold SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
-
Page 2: Before Proceeding
THANK YOU Dear Valued Customer, SUMERAIN would like to take this opportunity to thank you for purchasing SUMERAIN products. It is our sincere hope that you are completely satisfied with your new purchase. All SUMERAIN products are carefully engineered, and factory tested to provide long trouble-free use under normal conditions. This product is easy to install using basic tools and our easy to follow illustrated instructions. -
Page 3: Limited Lifetime Consumer Warranty
If a defect is found in normal residential use, SUMERAIN will, at its election, repair, provide a replacement part or product, or make appropriate adjustment. - Page 4 Max deck thickness 1-1/4 Inch Valve Type Ceramic Disc Valve Valve Body Material Brass Spout Material Stainless steel Gross Weight 5,07lbs Working water press 0.2 ~0.8 Mpa Flow Rate 8.6GPM @60PSI Packing box size 11-13/16”x 8-11/16”x 6.0” SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 5 DIMENSION FRONT VIEW OF FAUCET SIDE VIEW OF FAUCET SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
-
Page 6: Installation Steps
2143013 2143014 1PCS Set screw 2PCS 2143015 2143016 Screw cover 2PCS Allen wrench 1PCS 2143017 2143018 G1/2’’ hose 2PCS 2143019 If any of these items are missing, please contact SUMERAIN consumer service by email to: supports@sumerain.com SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM... - Page 7 4. INSTALLATION HOLES INSPECTION Verify that the hole sizes and positions in the wall are correct, the diameter of mounting hole recommend 1-1/4” (32mm) and maximum 1-3/8” (35mm), the max thickness of deck should be 1-3/4” (45mm). SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
-
Page 8: Installation
5.1 Turn on your shut-off valve for cleaning the hot and cold water supply pipe before connect to the faucet, allow the water flush 3~5 minutes to flush out dirt and debris. Shut off the water supply again after done. 5.2 Attached the flow restrictor to shank of spout. SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM... - Page 9 5.4 Disassemble hot and cold water valve assembly to prepare for next step’s installation. Take out the screws cover from knob and loose the inside set screw by Allen wrench anticlockwise, disassemble the knob from the valve assembly. SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 10 O-ring with the escutcheon, Then reposition escutcheons as necessary to a desired height. 5.6 Fasten the knobs with set screws by Allen Key and repeat the same procedure for the right cold valve assembly. SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 11 5.6 Attach the washer into the tee for water leak proof. 5.7 Screw on tee onto the spout shank SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 12 5.9 Connect hot valve body’s inlet connector and cold water valve inlet connector to stop valve separately with flexible hose. The water inlet connecting of hot and cold Valve body is G1/2” [1/2 BSPP], US, CA customers may require NPT cover to BSPP adapter for connecting. SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 13 6. INSPECTION 6.1 Turn on hold and cold water supply and check all connection for ensuring no leaking anywhere. INSTALL FINISH SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 14 Please note: if the surface is already damaged, the effect of cleaning materials will cause further damage. Components with damaged surfaces must be replaced or injury could result. Damage caused by improper treatment is not covered under the warranty. HONGKONG SUMERAIN SANITARY INDUSTRY CO., LIMITED Address: ROOM 1018, HOLLYWOOD PLAZA 610 NATHAN ROAD MONGKOK, KL,HONGKONG...
