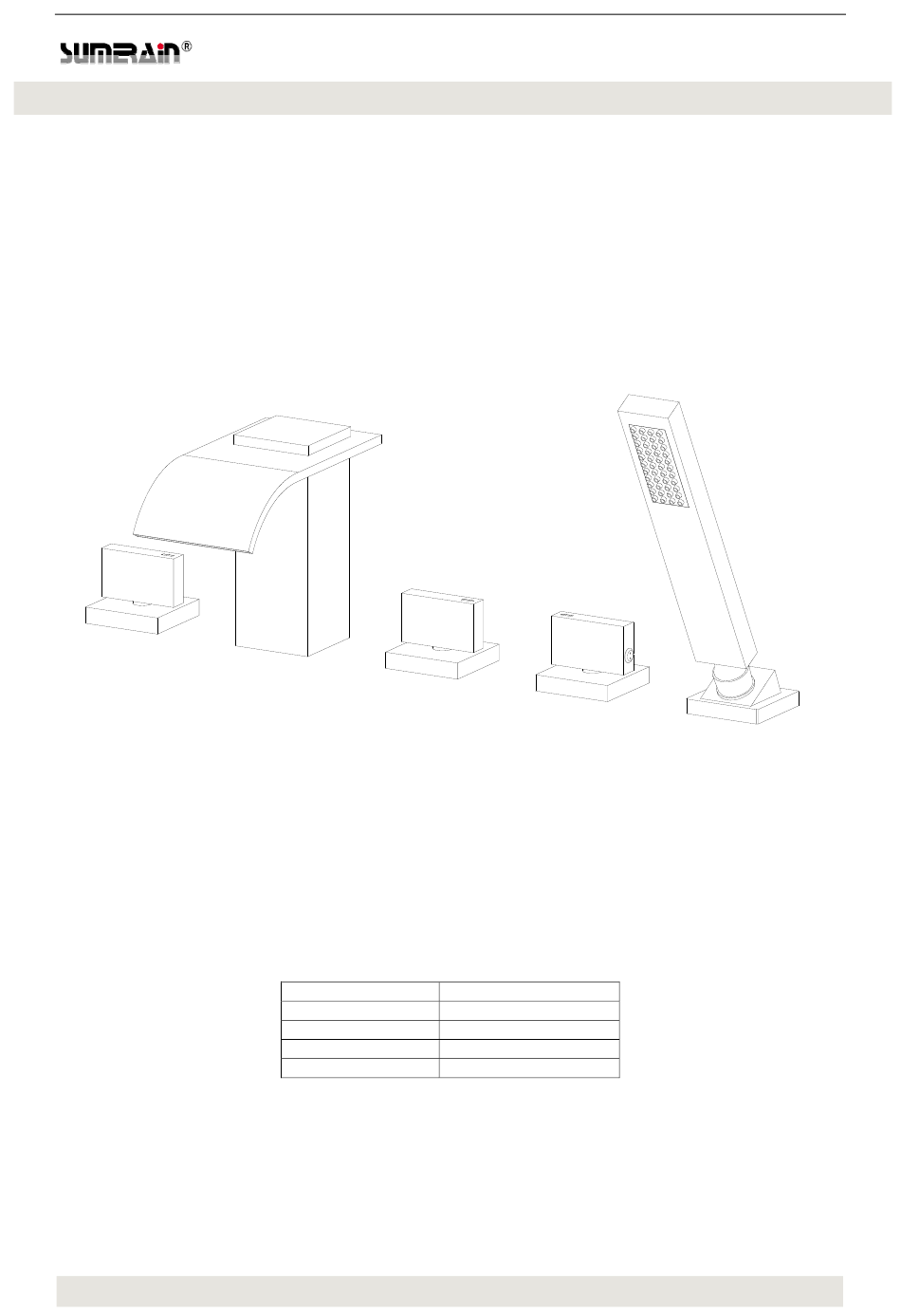

- Page 1 Version: 2.2 INSTALLATION GUIDE WATERFALL ROMAN TUB FAUCET MODEL FINISH S2126CW CHROME S2126NW BRUSHED NICEKL S2126DW Matte Black S2126BGW Brushed Gold SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
-
Page 2: Before Proceeding
THANK YOU Dear Valued Customer, SUMERAIN would like to take this opportunity to thank you for purchasing SUMERAIN products. It is our sincere hope that you are completely satisfied with your new purchase. All SUMERAIN products are carefully engineered, and factory tested to provide long trouble-free use under normal conditions. This product is easy to install using basic tools and our easy to follow illustrated instructions. -
Page 3: Limited Lifetime Consumer Warranty
If a defect is found in normal residential use, SUMERAIN will, at its election, repair, provide a replacement part or product, or make appropriate adjustment. - Page 4 Spout Material Stainless steel Hand shower Material Brass Spout Net Weight - KG [ -lbs ] 7,5lbs Gross Weight Working water press 29PSI ~ 116PSI Flow Rate 6.82GPM @ 60 PSI Packing box size 14-11/64”x 10-15/64”x 4-29/32” SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 5 DIMENSION Front view of faucet Side view of fauce SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
-
Page 6: Installation Steps
2126028 Allen wrench(2.5mm) 1PCS shower hose 1PCS 2126029 2126030 G1/2 Flexible hose(60cm) 1PCS G1/2 Flexible hose (40cm) 2PCS 2126031 2126032 If any of these items are missing, please contact SUMERAIN consumer service by email to: supports@sumerain.com SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM... - Page 7 4. INSTALLATION HOLES INSPECTION Verify that the hole sizes and positions in the wall are correct, the optimal diameter of mounting hole optional is 1-3/8”,the max deck thickness is 1-1/4’’ . SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
-
Page 8: Installation
3~5 minutes to flush out dirt and debris. Shut off the water supply again after finish. 5.2 Position spout onto the hole of mounting surface, attach rubber washer on spout shank and fasten with spout shank locknut by wrench from underneath. SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM... - Page 9 5.3 Disassemble hot and cold water valve assembly to prepare for next step’s installation. Take out the screws cover from knob and loose the inside set screw by Allen wrench anticlockwise, disassemble the knob from the valve assembly. SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 10 O-ring with the escutcheon, Then reposition escutcheons as necessary to a desired height. 5.5 Fasten the knobs with set screws by Allen Key and repeat the same procedure for the right cold valve assembly. SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 11 5.6 Place diverter valve from underside of mounting surface, screw handle Escutcheon (flange) for securing valve. Install diverter valve assembly as step 5.4. Hold the diverter valve body in the proper position. Assemble rubber gasket and tighten lock nut onto the valve body. SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 12 5.7Install hand shower holder as below. Secure with the rubber gasket and lock nut from underside of deck. 5.8 Through the shower hose across the center hole of hand shower holder as below diagram SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 13 5.10.2 Connect hot valve’s outlet connecter to another Diverter’s inlet connecter with G1/2” hose 5.10.3 Connect spout water inlet connecter with one of Diverter’s outlet connecter with G1/2” hose 5.10.4 Connect shower hose water inlet connecter to Diverter’s another outlet connecter. SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 14 The water inlet connecting of hot and cold Valve body is G1/2” [1/2 BSPP], US, CA customers may require NPT cover to BSPP adapter for connecting. 6. INSPECTION 6.1 Turn on hold and cold water supply and check all connection for ensuring no leaking anywhere, INSTALL FINISH SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 15 Please note: if the surface is already damaged, the effect of cleaning materials will cause further damage. Components with damaged surfaces must be replaced or injury could result. Damage caused by improper treatment is not covered under the warranty. HONGKONG SUMERAIN SANITARY INDUSTRY CO., LIMITED Address: ROOM 1018, HOLLYWOOD PLAZA 610 NATHAN ROAD MONGKOK, KL,HONGKONG...
