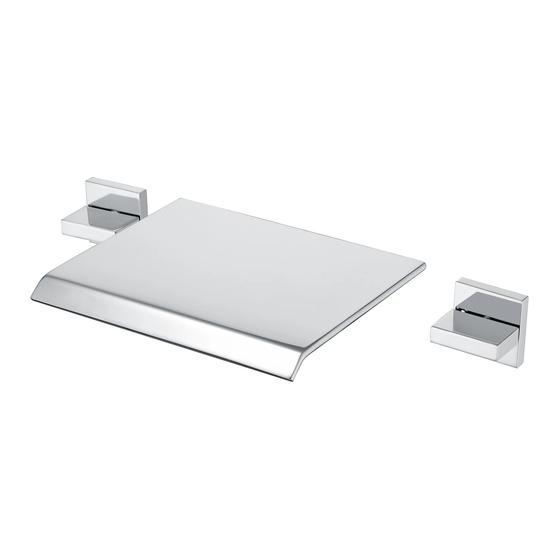

- Page 1 Version: 1.1 INSTALLATION GUIDE WALL MOUNT WATERFALL TUB FILLER MODEL FINISH S2150W-CH Chrome S2150W-BN Brushed Nickel S2150W-MB Matte Black S2150W-ORB Oil Rubber Bronze S2150W-BG Brushed Gold SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
-
Page 2: Before Proceeding
THANK YOU Dear Valued Customer, SUMERAIN would like to take this opportunity to thank you for purchasing SUMERAIN products. It is our sincere hope that you are completely satisfied with your new purchase. All SUMERAIN products are carefully engineered, and factory tested to provide long trouble-free use under normal conditions. This product is easy to install using basic tools and our easy to follow illustrated instructions. -
Page 3: Limited Lifetime Consumer Warranty
This warranty covers only your SUMERAIN manufactured product. SUMERAIN warrants this product against defects in material or workmanship as follows: SUMERAIN will repair at no charge for parts only or, at its option, replace any product or part of the product that proves defective because of improper workmanship and/or material, under normal installation, use, service and maintenance. - Page 4 Spout Material SUS 304 Stainless steel Handle Material Metal Net Weight 6,39 lbs Gross Weight 7,5 lbs Working water press 20PSI ~ 100PSI Tub Flow Rate@60PSI 11.65 GPM Packing box size 15-3/4” x 10-1/4” x 3-9/16” SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...

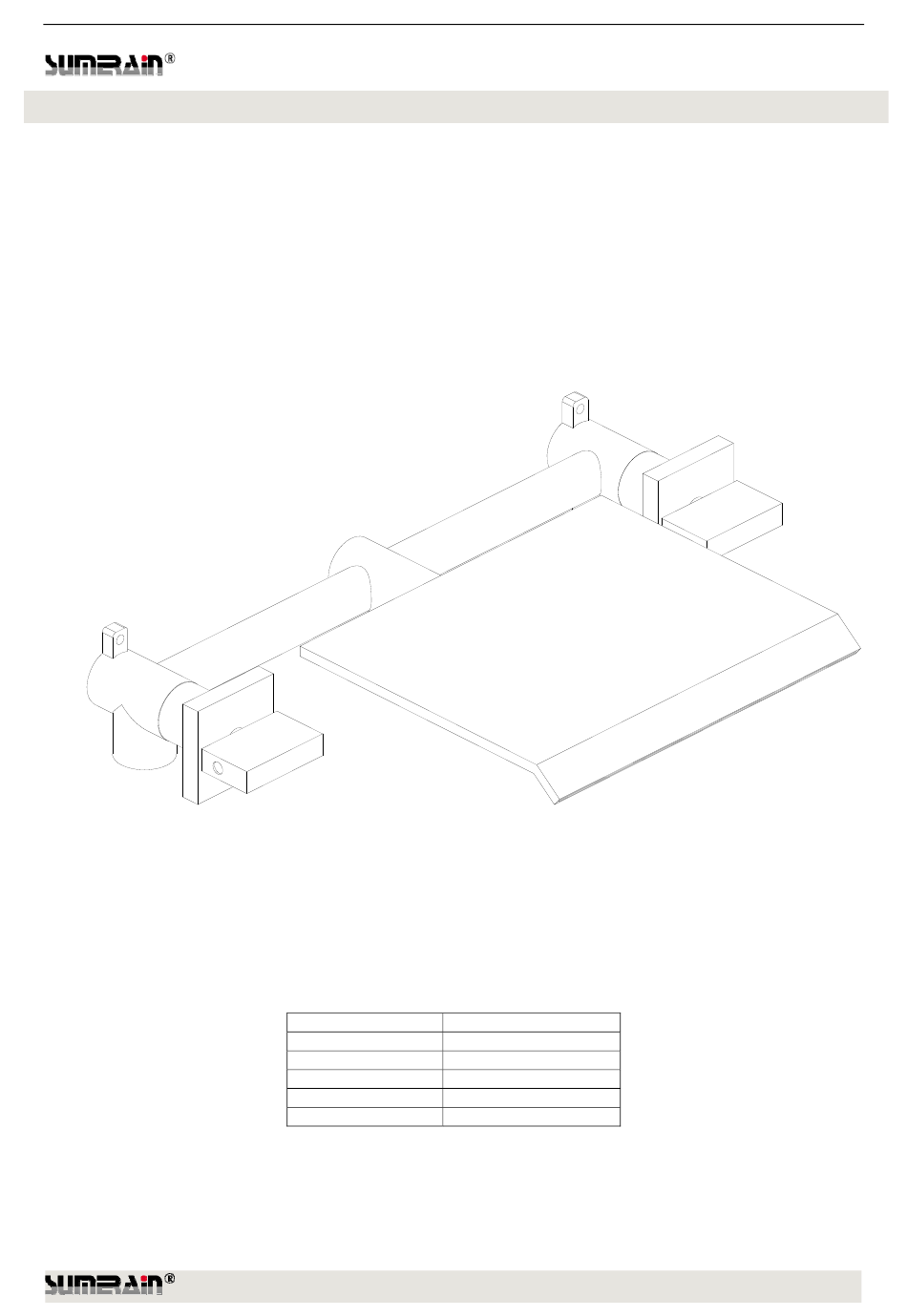

- Page 5 DIMENSION FRONT VIEW OF FAUCET SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 6 SIDE VIEW OF FAUCET TOP VIEW OF FAUCET SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
-
Page 7: Installation Steps
Hot disc cartridge 1PCS Escutcheon Adapter 2PCS 2150011 2150012 Allen wrench 1PCS Screw cover 2PCS 2150013 2150014 If any of these items are missing, please contact SUMERAIN consumer service at +1-866-203 0866 or email to: supports@sumerain.com SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM... - Page 8 4. VALVE TRIM INSTALLATION 4.1 Make a mounting rack (normally use woods as materials) for preparing install the rough-in valve trim. The mounting board’s face should be 1-31/32”(50mm) at least and Max 2-5/64” (53mm)behind the finish wall surface. SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 9 Apply Teflon tape on the escutcheon adapter and connect to rough-in valve. Secure the rough-in valve to the mounting rack with screws by Philips screwdriver. SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 10 3~5 minutes to flush out dirt and debris. Shut off the water supply again after finish. 4.5 Apply Teflon tape on the thread of tube inlet and then connect to rough-in valve. Inlet Connector: NPT 1/2” (US/CA) and BSPP1/2”(UK,EU and other) COLD SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 11 4.6 Install finish wall 4.7 Install spout adapter to shank of rough-in valve by Allen wrench. SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 12 4.8Secure spout to adapter with set screw with Allen wrench. 4.9 Connect the Escutcheons adapter to Escutcheons. SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 13 4.10 Install the Escutcheons adapter to sleeve 4.11 Secure the knobs to cartridge stem with screw by Allen wrench. SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 14 4.12 Attach the screw cover to knob. 5. INSPECTION 5.1 Turn on hold and cold water supply and check all connection for ensuring no leaking anywhere. INSTALL FINISH SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 15 Please note: if the surface is already damaged, the effect of cleaning materials will cause further damage. Components with damaged surfaces must be replaced or injury could result. Damage caused by improper treatment is not covered under the warranty. HONGKONG SUMERAIN SANITARY INDUSTRY CO., LIMITED Address: ROOM 1018, HOLLYWOOD PLAZA 610 NATHAN ROAD MONGKOK, KL,HONGKONG...
