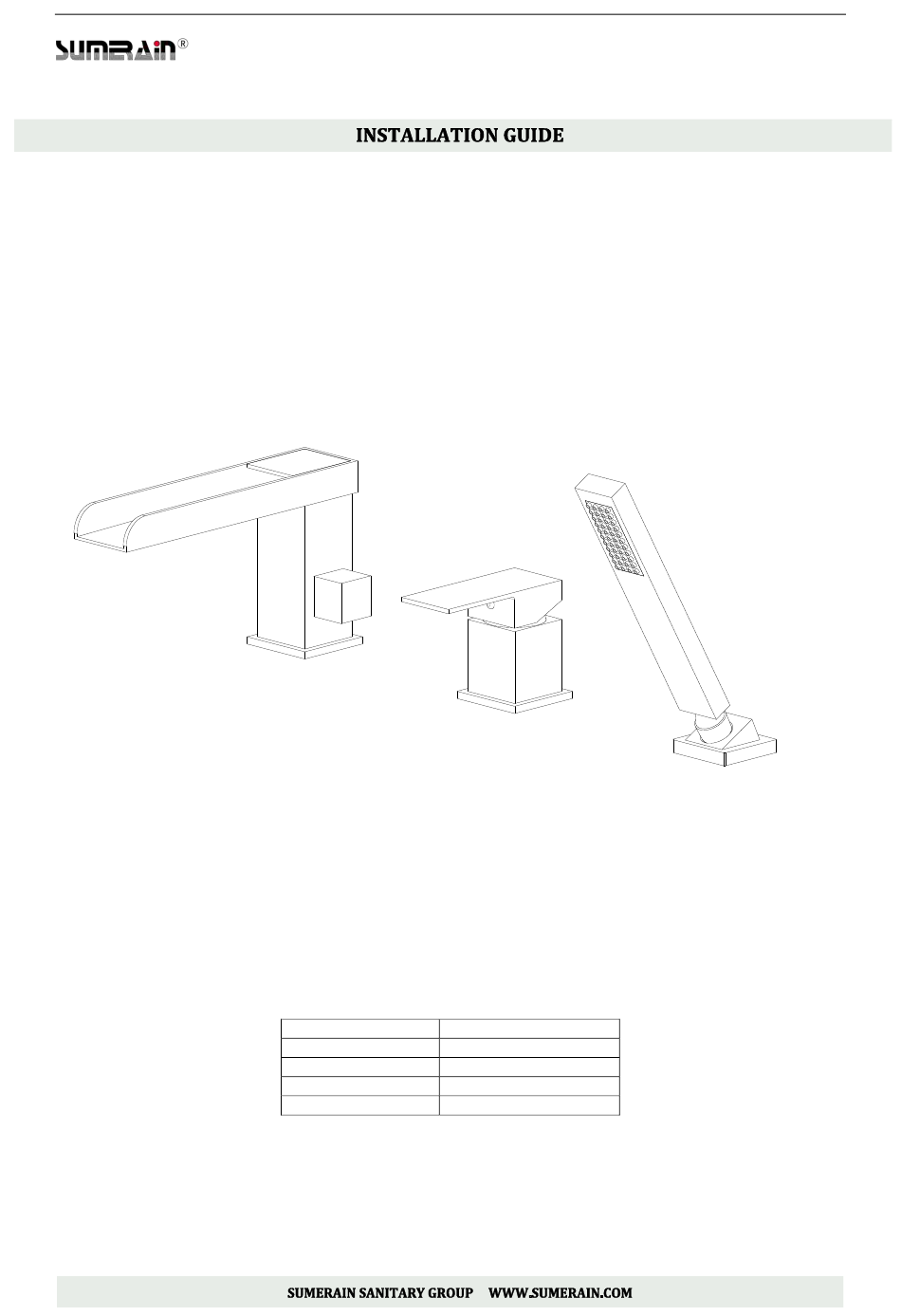

- Page 1 MODEL: S2148W-XX Version: 1.0 ROMAN WATERFALL BATHTUB FAUCET MODEL FINISH S2148W-CH CHROME S2148W-BN BRUSHED NICEKL S2148W-MB MATTE BLACK S2148W-BG BRUSHED GOLD...
- Page 2 Dear Valued Customer, SUMERAIN would like to take this opportunity to thank you for purchasing SUMERAIN products. It is our sincere hope that you are completely satisfied with your new purchase. All SUMERAIN products are carefully engineered, and factory tested to provide long trouble-free use under normal conditions. This product is easy to install using basic tools and our easy to follow illustrated instructions.
- Page 3 If a defect is found in normal residential use, SUMERAIN will, at its election, repair, provide a replacement part or product, or make appropriate adjustment.
- Page 4 Function Bathtub Faucets Feature Waterfall Contemporary Style Chrome / Brushed Nickel / Matte Black / Brushed Gold Finish Installation Holes Three Number of Handles Spout total Height 4-1/4” 8-3/16” Spout Reach Spout Width 1-31/32” Spout Height 3-3/8’’ Max deck thickness 1-9/16’’...
- Page 5 Front view of faucet Side view of faucet...
- Page 6 SIDE VIEW OF SPOUT SIDE VIEW OF CONTROL VALVE...
-
Page 7: Before Proceeding
Supply Hose 2PCS 2148021 2148022 Mixer Water Supply Hose Shower hose 1PCS 1PCS 2148023 2148024 Allen wrench 1PCS 2148025 If any of these items are missing, please contact SUMERAIN consumer service at +1 866 203 0866 or email to: supports@sumerain.com... - Page 8 4. INSTALLATION HOLES INSPECTION Verify that the hole sizes and positions on the deck are correct, the optimal diameter of mounting hole optional is 32mm(1-1/4”),the max deck thickness is 32mm(1-1/4”) .
-
Page 9: Installation
5. INSTALLATION 5.1 Turn on your shut-off valve for cleaning the hot and cold water supply pipe before connect to the faucet, allow the water flush 3~5 minutes to flush out dirt and debris. Shut off the water supply again after finish. 5.2 Disassemble the lock nut and accessories from spout assembly. - Page 10 5.3 Position spout onto the hole of mounting surface, attach rubber washer on spout shank and fasten with shank locknut by wrench and screw driver from underneath.
- Page 11 5.4 Screw in the hoses to the bottom of control valve as below drawing “C” : Hole for Cold water Inlet “H” : Hole for HOT water Inlet “M” : Hole for Mixer water Outlet Bottom view of control valve Hoses connection...
- Page 12 Place mixer valve with hoses across the mounting surface, secure it with lock nut by screwdriver.
- Page 13 Place shower holder assembly across the mounting surface, secure it with lock nut by wrench. Connect mixer valve outlet to spout inlet hose with mixer water supply hose.
- Page 14 5.8 Connect shower hose to the diverter valve outlet as drawing. 5.9 Connect the hand shower into the end of shower hose.
- Page 15 5.10 Connect all components with flexible hose. 6. INSPECTION 6.1 Turn on hold and cold water supply and check all connection for ensuring no leaking anywhere. 6.2 Turn on diverter to make sure the water distribution function is working properly between spout and hand shower INSTALL FINISH...
- Page 16 Please note: if the surface is already damaged, the effect of cleaning materials will cause further damage. Components with damaged surfaces must be replaced or injury could result. Damage caused by improper treatment is not covered under the warranty. HONGKONG SUMERAIN SANITARY INDUSTRY CO., LIMITED Address: ROOM 1018, HOLLYWOOD PLAZA 610 NATHAN ROAD MONGKOK, KL,HONGKONG...
