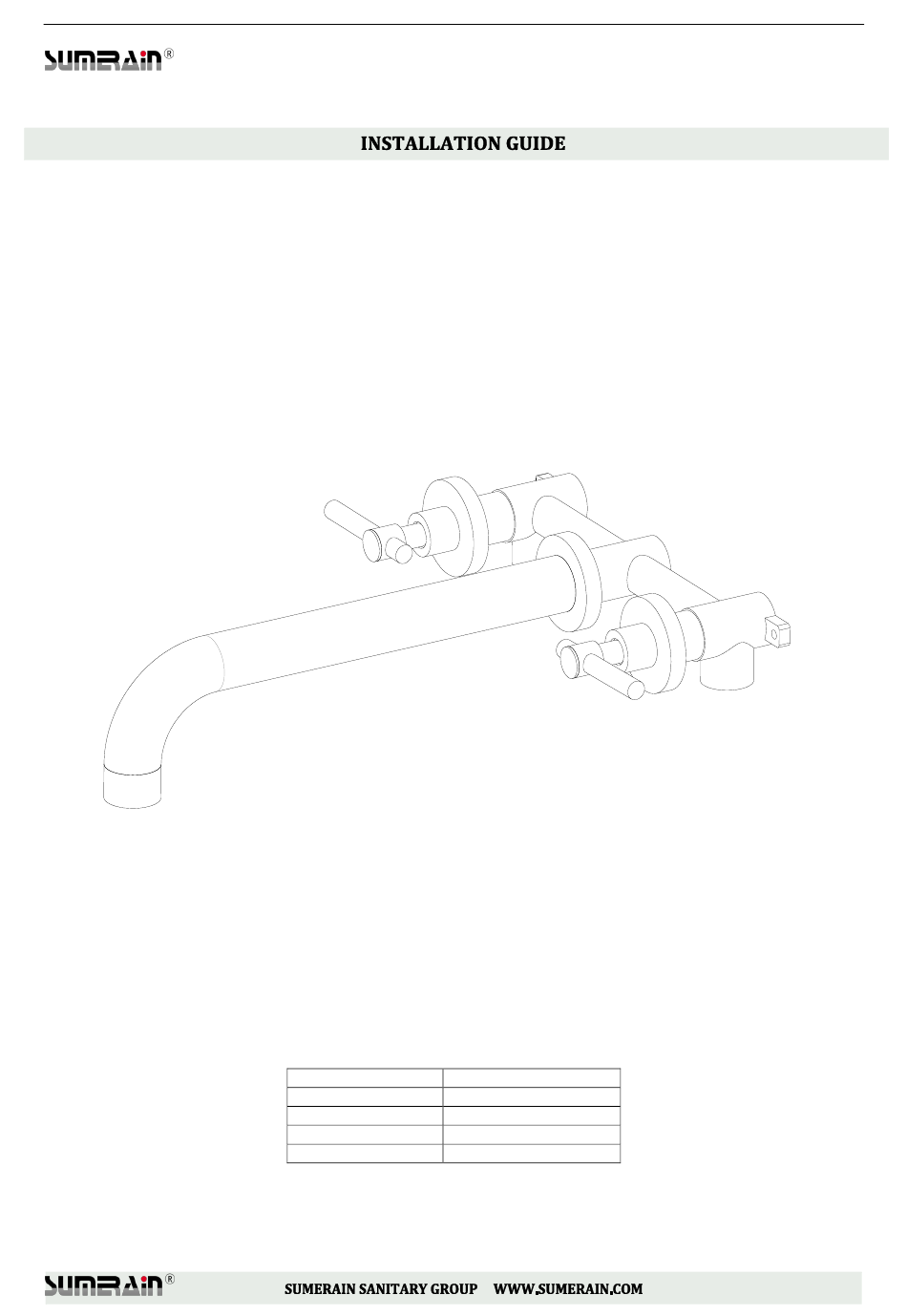

- Page 1 MODEL: S2134XI Version: V1.2 WALL MOUNTED ROMAN TUB FAUCET MODEL FINISH S2134CI CHROME S2134NI BRUSHED NICEKL S2134DI MATTE BLACK S2134BGI BRUSHED GOLD HOT LINE: +1-866-203 0866...
- Page 2 Dear Valued Customer, SUMERAIN would like to take this opportunity to thank you for purchasing SUMERAIN products. It is our sincere hope that you are completely satisfied with your new purchase. All SUMERAIN products are carefully engineered, and factory tested to provide long trouble-free use under normal conditions. This product is easy to install using basic tools and our easy to follow illustrated instructions.
- Page 3 This warranty covers only your SUMERAIN manufactured product. SUMERAIN warrants this product against defects in material or workmanship as follows: SUMERAIN will repair at no charge for parts only or, at its option, replace any product or part of the product that proves defective because of improper workmanship and/or material, under normal installation, use, service and maintenance.
- Page 4 Function Tub Faucets Feature Wall mount Theme Modern ,Contemporary Chrome/Nickel brushed/Matte black/Brushed Gold/ORB Finish Installation Holes Three Number of Handles Handle style Knob Faucet Total Height Adjustable Spout Reach 11.0 Inch [280mm] Adjustable Spout Height Spout rotatable Wall mount Installation type Valve Type Ceramic disc Faucet Body Material...
- Page 5 FRONT VIEW OF FAUCET LEFT VIEW OF FAUCET...
- Page 6 TOP VIEW OF FAUCET...
-
Page 7: Before Proceeding
2134007 Hot disc cartridge 1PCS 2134008 Escutcheon Adapter 2PCS 2134009 Escutcheon 2PCS 2134010 Set screw 2PCS 2134011 Spout 1PCS 2134012 Escutcheon of spout 1PCS If any of these items are missing, please contact SUMERAIN consumer service by email to: supports@sumerain.com... - Page 8 4. VALVE TRIM INSTALLATION 4.1 Make a mounting rack (normally use woods as materials) for preparing install the rough-in valve trim. The mounting board’s face should be 2-11/16”[68mm] at least and max 3-1/16”[78mm] behind the finish wall surface.
- Page 9 Secure the rough-in valve to the mounting board with screws by Philips screwdriver. Notice: Please make sure the valve is horizontal 4.3 Turn on your shut-off valve for cleaning the hot and cold water supply tube before connect to the valve trim, allow the water flush 3~5 minutes to flush out dirt and debris.
- Page 10 4.4 Apply Teflon tape on the thread of tube inlet and then connect to rough-in valve. Rough-in Valve thread for Hot&Cold water inlet: NPT 1/2” [US/CA] G1/2” [EU&UK] 4.5 Install finish wall...
- Page 11 4.6 Apply Teflon tape on the thread of spout feed pipe 4.7 Attach flange to spout.
- Page 12 4.8 Install spout to rough-in valve. 4.9 Attach the flange to finish wall.
- Page 13 4.10 Attach the foam to escutcheon. 4.11 Attach and fasten the escutcheon to finish wall.
- Page 14 4.12 Attach and Secure the knobs to cartridge stem with screw by Allen wrench and push the screw cover in. ASSEMBLE FINISHED 5. INSPECTION 5.1 Turn on hold and cold water supply and check all connection for ensuring no leaking anywhere. INSTALL FINISH...
- Page 15 Please note: if the surface is already damaged, the effect of cleaning materials will cause further damage. Components with damaged surfaces must be replaced or injury could result. Damage caused by improper treatment is not covered under the warranty. HONGKONG SUMERAIN SANITARY INDUSTRY CO., LIMITED Address: ROOM 1018, HOLLYWOOD PLAZA 610 NATHAN ROAD MONGKOK, KL,HONGKONG...
