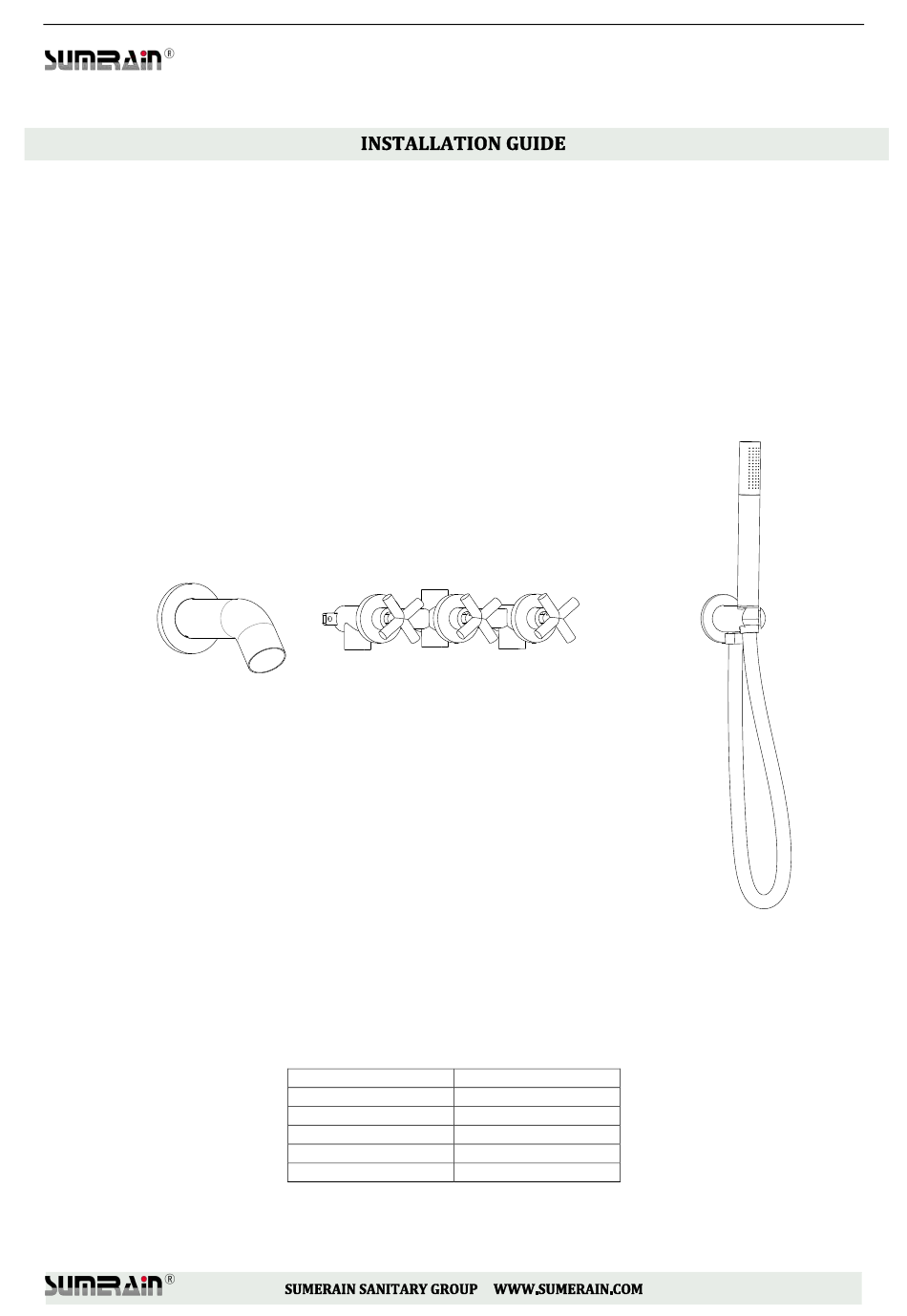

- Page 1 MODEL:S2133XW Version:V 2.0 TUB AND SHOWER FAUCET MODEL FINISH S2133CI CHROME S2133NI BRUSHED NICKEL S2133OI OIL RUBBER BRONZE S2133BGI BRUSHED GOLD S2133DI MATTE BLACK HOT LINE: +1-866-203 0866...
- Page 2 Dear Valued Customer, SUMERAIN would like to take this opportunity to thank you for purchasing SUMERAIN products. It is our sincere hope that you are completely satisfied with your new purchase. All SUMERAIN products are carefully engineered, and factory tested to provide long trouble-free use under normal conditions. This product is easy to install using basic tools and our easy to follow illustrated instructions.
- Page 3 This warranty covers only your SUMERAIN manufactured product. SUMERAIN warrants this product against defects in material or workmanship as follows: SUMERAIN will repair at no charge for parts only or, at its option, replace any product or part of the product that proves defective because of improper workmanship and/or material, under normal installation, use, service and maintenance.
- Page 4 Faucet type Tub faucet Feature Waterfall Theme Modern, Contemporary Mounting type Wall mounted Finish Chrome, Brushed Nickel, Matte Black,ORB,Brushed Gold Number of Handles Three Handles Material Metal Handle style Knob Escutcheon included Valve Type Ceramic disc Faucet Body Material Brass Escutcheon Material Metal Diverter included...
- Page 5 FRONT VIEW OF FAUCET SIDE VIEW OF SHOWER...
-
Page 6: Before Proceeding
Wall supply elbow 1 PCS 2133022 Anchor 2 PCS 2133023 Mounting screw 2 PCS 2133024 Hand shower 1 PCS 2133025 Shower hose 1 PCS If any of these items are missing, please contact SUMERAIN consumer service by email to: supports@sumerain.com... -
Page 7: Installation
5. INSTALLATION 5.1 Turn on your shut-off valve for cleaning the hot and cold water supply pipe before connect to the faucet, allow the water flush 3~5 minutes to flush out dirt and debris. Shut off the water supply again after done. 5.2 Make a mounting rack (normally use woods as materials) for preparing install the concealed box assembly .the mounting board’s face should be Min 48mm [1-7/8"] and Max 87mm [3-13/32"] behind the finish wall surface. - Page 8 Secure the rough-in valve assembly to the mounting rack with screws. 5.4 Apply Teflon tape on the thread of supply pipe outlet and then connect to valve inlet. Rough-in Valve Connecting thread for Hot&Cold water inlet: NPT 1/2”[US,CA] or G1/2” [Other]. 5.5 Install the feed pipe for spout and hand shower.
- Page 9 5.7 Turn on hot and cold water supply and check all connection for leaks Please shut off your hot and cold water supply again if no leaking. 5.8 Done the finish wall.
- Page 10 5.9 Screw the sleeve to hot&cold cartridge and diverter cartridge. 5.10 Slip the escutcheons on to sleeves and attach to finish wall.
- Page 11 5.11 Seal the wall around the escutcheons with waterproof sealant WARNING: Failure to seal the wall can lead to possible water damage. 5.12 Attach and secure the knobs to cartridge stem with screw by Allen key.
- Page 12 6. TUB SPOUT INSTALLATION 6.1 Loose the set screws by Allen key and remove the spout nipple assembly from tub spout assembly. 6.2 Remove the aerator lock nut by adjustable wrench and disassemble all inside parts from the spout nipple supply. 6.3 Apply Teflon tape on the thread of spout nipple supply and screw the thread into the pipe elbow inside the wall.
- Page 13 6.4. Reinstall the aerator lock nut and all inside parts to the spout nipple supply by adjustable wrench. 6.5. Push the flange to tub spout from behind. 6.6. Docking the tub spout to the spout nipple supply and secure with set screw by Allen Key.
- Page 14 6.7. Attach the flange to finish wall. 6.8. Seal the wall around the flange with waterproof sealant. 7. HAND SHOWER INSTALLATION 7.1 Apply Teflon tape on the thread of wall supply elbow.
- Page 15 7.2 Push the flange to supply elbow from behind. 7.3 Screw the wall supply elbow into the pipe elbow inside the wall..
-
Page 16: Function Inspection
7.4 Connect the hand shower to the elbow with flexible hose. 8. INSPECTION 8.1 Turn on hold and cold water supply and check all connection for ensuring no leaking anywhere. 9. FUNCTION INSPECTION 9.1 Turn on the hot or cold knob respectively, the water outflow from the hand shower in turn. 9.2 Switch the diverter Knob, the water will rush from the tub spout. - Page 17 Please note: if the surface is already damaged, the effect of cleaning materials will cause further damage. Components with damaged surfaces must be replaced or injury could result. Damage caused by improper treatment is not covered under the warranty. HONGKONG SUMERAIN SANITARY INDUSTRY CO., LIMITED Address: ROOM 1018, HOLLYWOOD PLAZA 610 NATHAN ROAD MONGKOK, KL,HONGKONG...
