Installation Manual
MManualManual

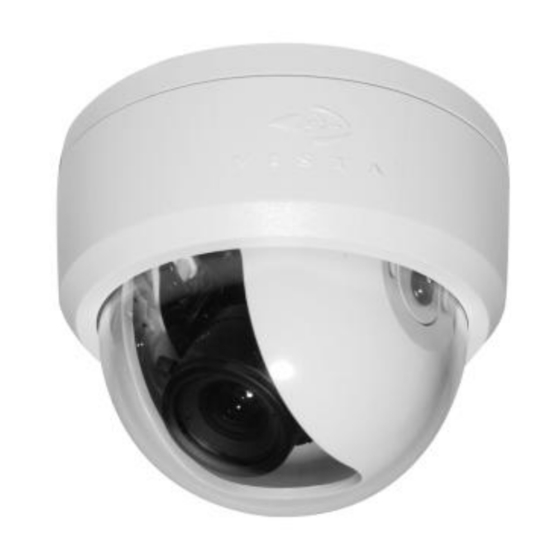

Set up and user manual for the
VFD28V12CM960H / U
VFD28V12DN960H
Cameras

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VFD28V12CM960H and is the answer not in the manual?

Questions and answers

Summary of Contents for Vista VFD28V12CM960H

  • Page 1 Installation Manual MManualManual Set up and user manual for the VFD28V12CM960H / U VFD28V12DN960H Cameras...
  • Page 3 Before You Begin Read these instructions before installing or operating this product. Note: This installation should be made by a qualified service person and should conform to local codes. This manual provides installation and operation information. To use this document, you must have the following minimum qualifications: ...
  • Page 4 This apparatus is manufactured to comply with the radio interference. A Declaration of Conformity in accordance with the following EU standards has been made. The manufacturer declares that the product supplied with this document is compliant the provisions of the EMC Directive 2004/108/EC, the CE Marking Directive 93/68 EEC and all associated amendments.
  • Page 5 IMPORTANT SAFEGUARDS 1. READ AND RETAIN INSTRUCTIONS Read the instruction manual before operating the equipment. Retain the manual for future reference. 2. CLEANING Turn the unit off and unplug from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use harsh cleansers or aerosol cleaners. 3.
  • Page 6 12. SERVICING Do not attempt to service the video monitor or equipment yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 13. DAMAGE REQUIRING SERVICE Unplug the equipment from the wall outlet and refer servicing to qualified service personnel under the Following conditions: A.
  • Page 7: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION --------------------------------------------------------------------------------------- 7 CONTENTS OF PACKAGE ------------------------------------------------------------------------- 8 BASIC INSTALLATION ------------------------------------------------------------------------------- 8 TACT SWITCH OPERATION / SERVICE JACK ----------------------------------------------- 11 OSD MENU STRUCTURE --------------------------------------------------------------------------- 12 DEAD PIXEL CORRECTION------------------------------------------------------------------------ 20 LENS ADJUSTMENT --------------------------------------------------------------------------------- 20 DIMENSIONS ------------------------------------------------------------------------------------------- 21 SPECIFICATIONS ------------------------------------------------------------------------------------- 22...
  • Page 8: Introduction

    INTRODUCTION Camera Model Features: ● 1/3" Sony Super HAD II CCD (960H) with Effio E II DSP ● 700TVL Colour & Monochrome resolutions ● 2.8-12mm (F1.4-360) 2MP varifocal lens ● 0.25Lux (Colour) @ F1.4 sensitivity (CM) 0.25Lux (Colour) / 0.02Lux (Monochrome) @ F1.4 sensitivity (DN) ●...
  • Page 9: Contents Of Package

    CONTENTS OF PACKAGE Installation of the camera must be performed by qualified service personnel in accordance with all local and national electrical and mechanical codes. Carefully remove the colour camera and its accessories from the carton and verify that they were not damaged in shipment. The content of the package includes: 1.
  • Page 10 2. First remove the camera module by pulling down on the taps that hold the camera module in place [fig A] [fig A] [fig B] 3. Knock out the screw access holes (T1), this is can be done by using a Cross head screwdriver 4.
  • Page 11 Ceiling / Wall Mounting Template sheet Plastic anchor Dome Base Mounting Screw Camera Module Liner Dome Cover Tapping screw...
  • Page 12: Tact Switch Operation/Service Jack

    MOUNTING ON A SINGLE GANG BOX Mount the dome base on the box with proper securing holes UK Single Gang Box Mounting holes available for the Single Gang Box TACT SWITCH OPERATION/SERVICE JACK The tact switch allows both navigation and changes to the OSD Menu. To enter into the OSD menu push centrally on the joystick and navigate using the up, down, left and right actions.
  • Page 13: Osd Menu Structure

    OSD MENU STRUCTURE SETUP MENU (page 1) LENS SHUTTER/AGC LENS SHUTTER/AGC AUTO IRIS AUTO WHITE BAL MANUAL MANUAL BACKLIGHT PICT ADJUST MOTION DET RETURN RETURN NEXT (page2) EXIT SAVE ALL WHITE BALANCE BACKLIGHT PUSH USER 1 USER 2 ANTI CR MANUAL PUSH LOCK RETURN...
  • Page 14 SETUP MENU (page 2) PRIVACY PRIVACY DAY/NIGHT DAY/NIGHT AREA SEL AUTO CAMERA ID COLOUR COLOUR LANGUAGE TRANSP CAMERA RESET MOSAIC BACK (page 1) EXIT SAVE ALL RETURN RETURN CAMERA ID LANGUAGE CAMERA RESET NR MODE (titling) ENGLISH RETURN Y LEVEL GERMAN (return the C LEVEL...
  • Page 15 LENS Manual Manual lens only Auto Type: DC, Video (Sets the type of lens and whilst Video is selectable, it is not supported on this model) Mode: Open, Close, Auto (Sets the type of control applied over the mechanical iris) Speed: 0 - 255 (increments of 1) (Sets the convergence speed of the mechanical iris).
  • Page 16 WHITE BAL Modes: ATW, Push, User1, User2, Anti CR, Manual, Pushlock (Adjusts the white balance to suit area being viewed) ATW (Auto Trace White balance) Speed: 0 to 255 (increments of 1) (Adjusts the pull in speed of ATW) Delay Cnt: 0 to 255 (increments of 1) (Sets the time-based hysteresis of ATW) ATW Frame: x0.5, x1.5, x2 (Sets the pull in frame magnification)
  • Page 17 PICT ADJUST Mirror: Off, on (horizontally inverts image). 0 – 255 (increments of 1) Brightness: 0 – 255 (increments of 1) Contrast: 0 – 255 (increments of 1) Sharpness: 0 – 255 (increments of 1) Hue: 0 – 255 (increments of 1) Gain: (in all of the above, the smaller the number, the darker or lower the setting that is applied)
  • Page 18 PRIVACY PRIVACY: allows upto 8 masks to be applied to the image (note that if motion area in motion det menu is set to ‘on’, this reduces to 4 privacy zones) Area Sel: 1 - 8 (Selects the motion detection area) Top: 0 –...
  • Page 19 B/W: Monochrome only operation Burst: Off, On (Allows the colour burst signal in monochrome to be removed if required) IR Optimizer: Off, On (if On, then Mode & Level are adjustable) Mode: Auto, Centre Level: 0 – 31 (increments of 1) Ext 1: Switches to permanent mono mode and reflects the setting in B/W mode Ext2: Switches to permanent colour mode (whilst Ext1 &...
  • Page 20 SYNC This is fixed within the camera and non-adjustable. LANGUAGE LANGUAGE select between: English (EN), German (DE), French (FR), Russian (RU), Portuguese (PT) & Spanish (ES). CAMERA RESET CAMERA RESET - Returns the camera to the factory default settings. EXIT / SAVE ALL EXIT –...
  • Page 21: Dead Pixel Correction

    DEAD PIXEL CORRECTION It is perfectly normal for a camera CCD to have what is known as ‘dead’, ‘hot’ or ‘white’ pixels, develop over time and on occasion and these can be noticeable on the viewed image. These can be masked easily without affecting the quality of the image, with the DPC function.
  • Page 22: Dimensions

    DIMENSIONS Mounting Type Surface Type Thick t = 0.05 in (2.0 mm) Window Spec. Material = Polycarbonate Diameter = 3.15 in (80.0 mm) Thick t = 0.18 in (3.0 mm) Bottom Case Material = Polycarbonate Diameter = 3.98 in (101.2 mm) Cable Entry One(1) opening hole with grommet (3/4’’) Four(4) Side Knockouts...
  • Page 23: Specifications

    SPECIFICATIONS VFD28V12-960H Model CM U (UTP) Resolution 700TVL (colour and monochrome) 1/3″ SONY Super HAD (960H) Image sensor Sony Effio E II Total pixels 1020(H) x 596(V) Effective pixels 976(H) x 582(V) Scanning Syst. 2:1 Interlace Scanning Freq. PAL: 15.625KHz(H) x 50Hz(V) Sync.
  • Page 24 VFD960H_U Manual / V1.0 / 2013-02-22 (subject to change without notice)
