Summary of Contents for Vista VFDA28V12HDA Series

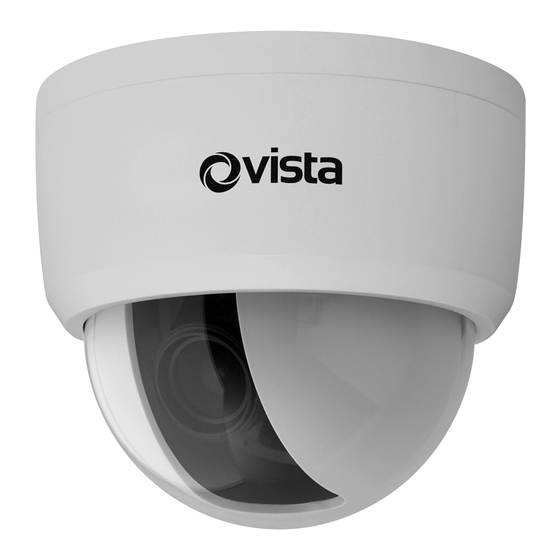

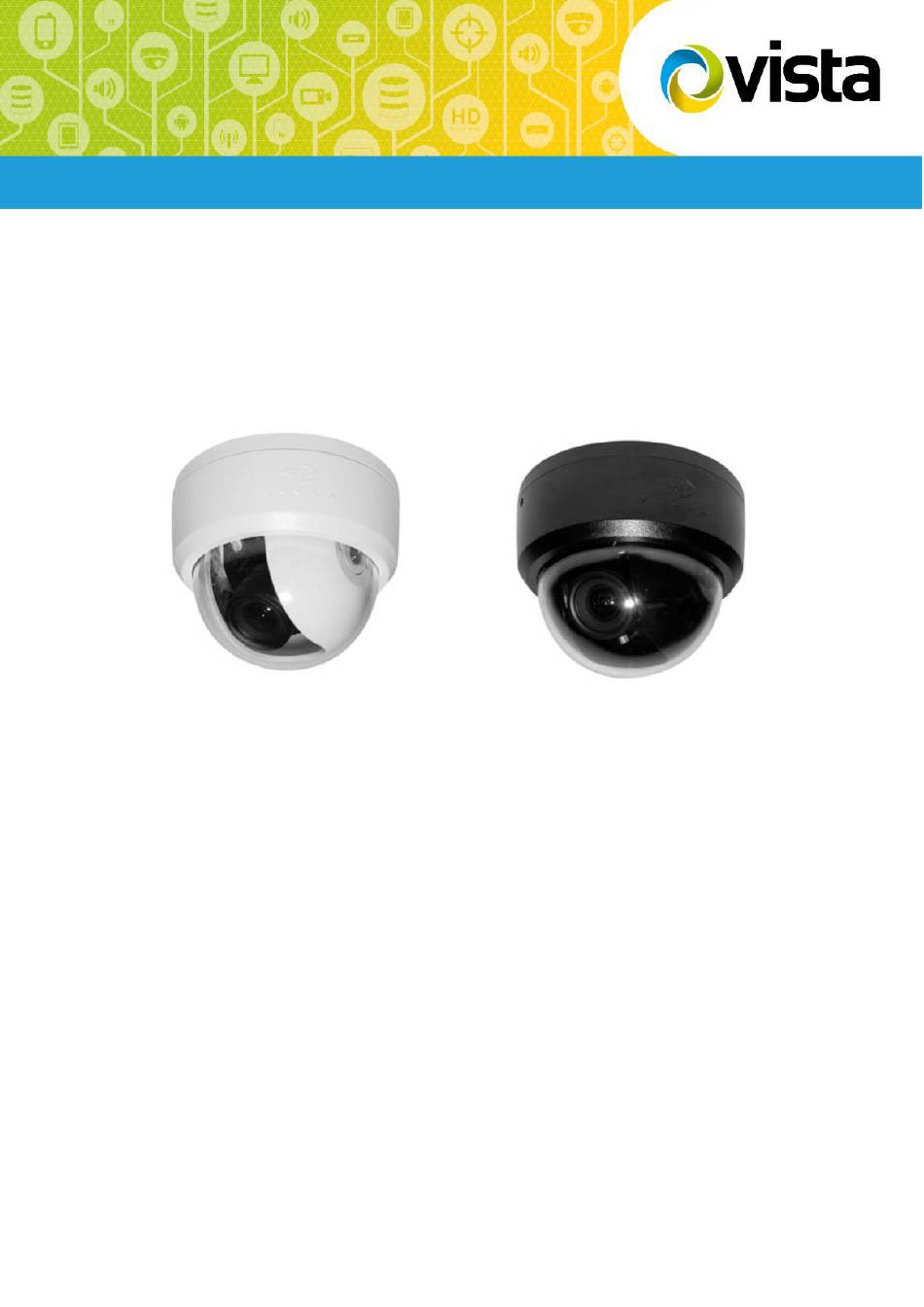

- Page 1 Installation Manual VFDA28V12HDA-xxx Please read this manual thoroughly before use and keep it handy for future reference.
- Page 3 Norbain SD, 210 Wharfedale Road, Winnersh Triangle, Wokingham, Berkshire RG41 5TP, England. UK +44 (0) 118 912 5000 / Vista Technical Support +44 (0) 118 912 5125 Note: You should be at the equipment and ready with details before calling Technical Support.
- Page 4 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings.
-
Page 5: Table Of Contents
Table of Contents 1 — Introduction ........................ 5 1.1 Features ..........................6 2 — Installation and Configuration ................... 7 2.1 Package Contents ....................... 7 2.2 Camera Overview ........................ 7 2.3 Connections / Tact Switch Operation & Lens Control ............9 2.4 OSD Menu Structure...................... -
Page 6: Introduction
1 — Introduction 1.1 Features 1/2.9” Sony 2.2MP Exmor CMOS 1080p in TVI and AHD, 1000TVL in CVBS 2.8-12mm F1.2 2MP manual lens 1.0Lux (colour), 0.1Lux (mono) ● True Day/Night operation ● Auto electronic shutter (1/25 to 1/50,000) and manual electronic shutter modes ●... -
Page 7: Installation And Configuration
2 — Installation and Configuration 2.1 Package Contents Installation of the camera must be performed by qualified service personnel in accordance with all local and national electrical and mechanical codes. Carefully remove the camera and its accessories from the carton and verify that they were not damaged in shipment. - Page 8 2) Make mounting holes and cable hole in the required location. Fasten Mounting screws (2X) and align the dome camera with it like above picture. Turn the dome camera to left direction about 16 degree. The screws in the accessory kit should be sufficient, however, if not then please use fixings suitable for the application.
-
Page 9: Connections / Tact Switch Operation & Lens Control
2.3 Connections / Tact Switch Operation & Lens Control All are on the flying lead of the camera. As default, the camera is set to output TVI in HD mode 1. Video Out (BNC) 2. 12VDC/24VAC power connection. If the 2.1mm jack adaptor is not used, then please ensure the correct polarity is observed (12VDC is polarity dependant). -
Page 10: Osd Menu Structure
2.4 OSD Menu Structure SETUP MENU LENS EXPOSURE LENS EXPOSURE SHUTTER BACKLIGHT MANUAL WHITE BAL DAY&NIGHT SENS-UP BRIGHTNESS IMAGE DWDR FUNCTION SYSTEM DEFOG EXIT BACKLIGHT WHITE BAL DAY&NIGHT AUTO AWC->SET COLOUR HSBLC INDOOR B&W OUTDOOR MANUAL IMAGE FUNCTION SYSTEM SHARPNESS CAM TITLE MOTION MONITOR... -
Page 11: Osd Menu
3 — OSD Menu 3.1 Lens DC / Manual Mode: Indoor / Outdoor Outdoor: Min Shutter: 1/25 Max Shutter: 1/50, FLK, 1/200, 1/400, 1/1000, 1/2000, 1/5000, 1/10000, 1/50000 Iris Speed: 1 to 15 Manual: Opens up Shutter in Exposure menu 3.2 Exposure SHUTTER (Only if lens in Manual mode): Auto, 1/50, FLK, 1/200, 1/400, 1/1000, 1/2000, 1/5000, 1/10000, 1/50000, x2, x4, x6, x8, x10, x15, x20, x25,... -
Page 12: White Balance
Default: Defaults HSBLC settings 3.4 White Balance AWB, ATW, AWC->SET, Indoor, Outdoor, Manual AWC->SET: Push enter button to set the colour balance MANUAL: Blue: 0 to 100 Red: 0 to 100 3.5 Day&Night AUTO, COLOUR, B/W, AUTO: D>N (AGC): 1 to 240 D>N (Delay): 0 to 60 N>D (AGC): 1 to 240 N>D (Delay): 0 to 60... -
Page 13: Function
3.7 Function DNR: 2DNR: Off, Low, Middle, High 3DNR: Off, Low, Middle, High End AGC: 0 to 255 MOTION: Off / On Select: Area1, Area2, Area3, Area4 Display: Off / On On: Use up, down, left, right buttons to adjust both position and size of area Sensitivity: 0 to 100 Colour: Green, Blue, White, Red Transparency: 0.00, 0.25, 0.75, 1.00... -
Page 14: System
3.8 System CAM TITLE: 15 alpha-numeric characters MONITOR: LCD: Black Level: 0 to 60 Gamma: User, 0.45, 0.50, 0.55, 0.60, 0.65, 0.70, 0.75, 0.80, 0.85, 0.90, 0.95, 1.00 Blue Gain: 0 to 100 Red Gain: 0 to 100 CRT: Black Level: 0 to 60 Blue Gain: 0 to 100 Red Gain: 0 to 100 VIDEO OUT: PAL / NTSC... -
Page 15: Specifications
Chapter 4 — Specifications 4.1 Technical Specification Model VFDA28V12HDA-xxx Resolution 1080p (TVI/AHD) / 1000TVL (CVBS) 1/2.9″ Sony CMOS Image sensor Operation True Day Night Effective 1920 (H) x 1080 (V) pixels Scanning PAL: 15.625KHz(H) x 50Hz(V) Freq. Sync. system Internal 1.0Vp-p (75Ω, composite) Video output S/N Ratio... -
Page 16: Line Drawing / Dimensions
4.2 Line Drawing / Dimensions All dimensions are in mm 5 — Warranty This camera is subject to the warranty conditions valid at the time of purchase. - Page 18 Vista 210 Wharfedale Road Winnersh Triangle Wokingham Berkshire. RG41 5TP (Subject to change without notice) Version 1.0...
