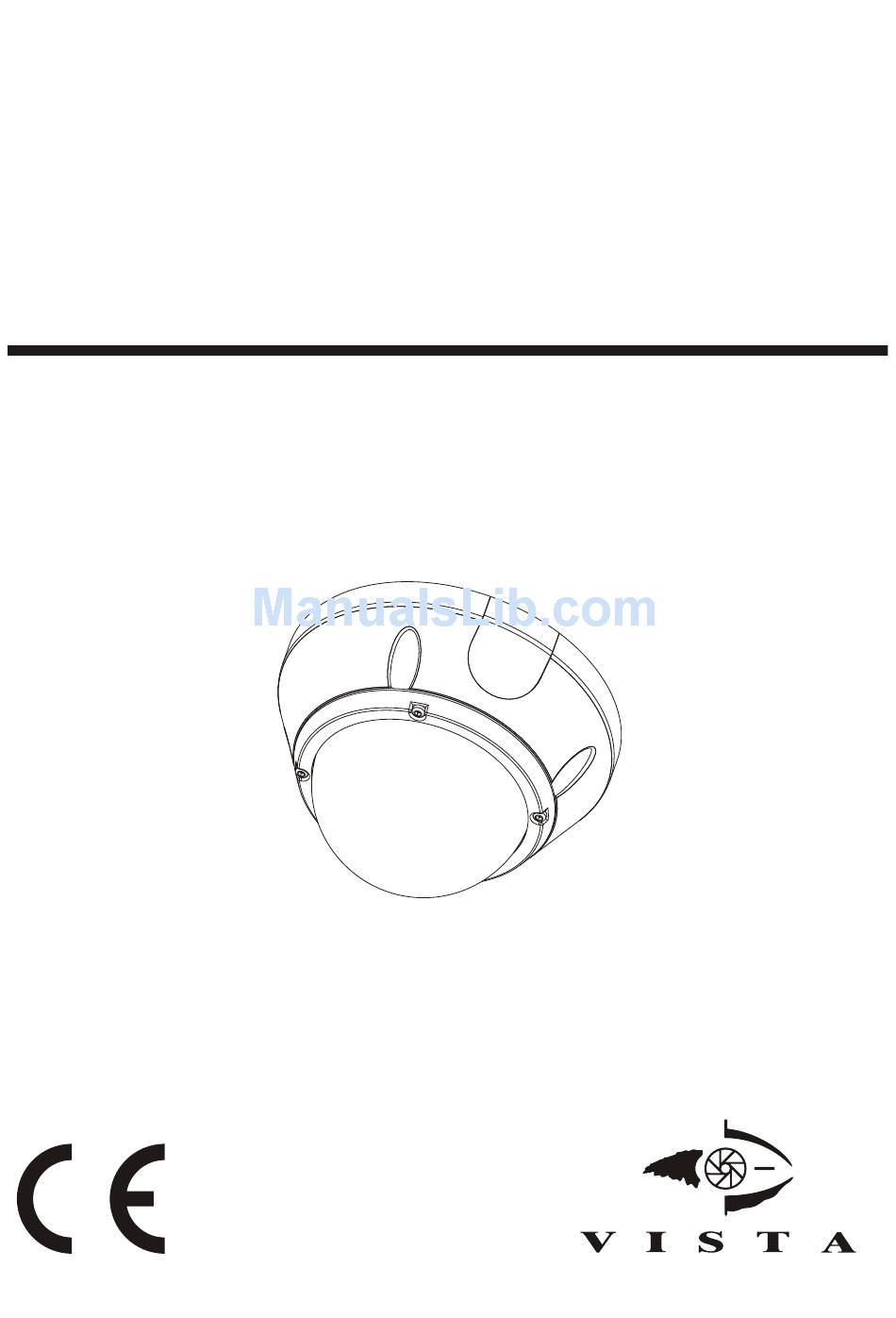

- Page 1 Installation & Instruction Manual VISTA VANDAL RESISTANT DAY & NIGHT DOME CAMERA 1/3" EX-VIEW CCD COLOR CAMERA Please read this manual thoroughly before use, and keep it handy for future reference.
-
Page 2: Explanation Of Graphical Symbols
WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO N OT INSE RT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,... -
Page 3: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT INFORMATION TO THE USER : THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC R U L E S . T H E S E L I M I T S A R E D E S I G N E D T O P R O V I D E R E A S O N A B L E P R O T E C T I O N A G A I N S T... -
Page 4: Important Safeguards
IMPORTANT SAFEGUARDS READ INSTRUCTIONS -- All the safety and operating instructions should be read before the appliance is operated. RETAIN INSTRUCTIONS -- The safety and operating instructions should be retained for future reference. CLEANING -- Unplug video monitor or equipment from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. - Page 5 IMPORTANT SAFEGUARDS POWER CORDS -- Do not allow anything to rest on the power cord. Do not locate video monitor or equipment where the cord will be abused by persons walking on it. HEED WARNINGS -- Follow all instructions marked on the video monitor or equi pmen t. LIGHTNING -- For added protection for video monitor or equipment during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system.
- Page 6 INTRODUCTION The 1/3" DSP color security camera provides SONY, true-color images especially for closed-circuit television (CCTV) and security surveillance applications. FEATURES: High-performance 1/3" SONY DSP color Exview HAD CCD technology NTSC: 330 lines(Color), 380 lines(B/W) of resolution(Standard) 480 lines(Color), 530 lines(B/W) of resolution(High) PAL: 320 lines(Color), 360 lines(B/W) of resolution(Standard) 470 lines(Color), 510 lines(B/W) of resolution(High) 0.3lux(Color), 0.02lux(B/W), F1.2 Sensitivity(Standard)
-
Page 7: Camera Connections
CAMERA CONNECTIONS 1. Lens : Allows a wide area to be monitored. 2. Power : 24V AC input / 12V DC input 3. Video : BNC connector used to connect the camera to a monitor, switcher, etc. REMINDER: Never aim the camera directly into the sun. POWER Use of Listed Class 2 power source. - Page 8 INSTALLING & ADJUSTING CAMERA MODULE Use the following drawings to install the camera module to the housing. Flat Head screw M3 x 6 - 3 -...
-
Page 9: Base Installation
BASE INSTALLATION CAUTION : When installing the camera outdoors, the following instructions must be followed closely. 1. Loosen the four torx screws located midway up the front of the housing. Leave the screws intact in the front portion. 2. Drill holes for the four mounting screw anchors. Insert the screw andchors and attach the housing to the screw anchors. -
Page 10: Heater Kit Installation
HEATER KIT INSTALLATION HEATER (IF APPLICABLE) Power Supply 24V AC / 12V DC Power Consumption Heater ON at 41 F (5 C) Heater OFF at 59 F (15 C) HEATER KIT INSTALLATION continued Use the following drawings to install the camera the heater kit in the housing. 24V AC 24Vac Out to Heater... -
Page 11: Lens Adjustment
LENS ADJUSTMENT (OPTIONAL VARIFOCAL LENS) Field of view: Adjust setting from Telephoto (T) to wide (W) field of View. Focus: Adjust lens focus from near (N) to infinity ( Adjust Focus Adjust Angular Field View ADJUSTMENTS Backlight compensation: Backlight compensation (BLC) fixed ON. (BLC size 40% of center). Vertical Phase: Phase adjustment is used in a multi-camera system when power is supplied from a different source, causing the camera to be out of phase. -
Page 12: Dc Auto Iris Lens
DC AUTO IRIS LENS 4-9mm 12mm Image Size 1/3" CCD 4.0-9.0mm 12mm Focal Length Aperture Ratio 1 : 2.0 1 : 1.8 Angular DIAGONAL DIAGONAL 4mm : 81 25.7 Field of View 9mm : 38.6 Orange + Drive - Drive LENS Green + Control Yellow - Control... -
Page 13: Function Switch
FUNCTION SWITCH AES OFF ON ON ON NC Nor OFF LOW INT 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 OFF OFF OFF NC MES ON FF BLC EI GAMMA AGC AGC SYNC SHTR Switch (Aes/Mes) - This switch allows the user to choose between auto... - Page 14 FUNCTION SWITCH Gamma Switch (on/off) - The gamma correction switch allows .45 correction for non-linearity gain response in the monitor when set to ON. When set to OFF, there is no gamma correction. AGC Select Switch (Normal/Hi) AGC Normal: AGC Middle Gain. AGC High: AGC Max Gain.
-
Page 15: Specifications
SPECIFICATIONS * Standard Resolution DSP Color Camera * Power Power Source, Consumption : 24VAC +/-10%, 60(50)Hz +/-1Hz, 12VDC +/-10% 3.5Watts Sensor Information and General Processing Technology : Sony DSP Image Sensor : 1/3" interline transfer CCD (sony chip set) Picture Element : 537(H) x 505(V), NTSC 537(H) x 597(V), PAL Chip Size :... - Page 16 SPECIFICATIONS Function Auto/Man Shutter Control(E.S.) : Auto(On), Man(Off) (Dip Switch) Manual Shutter Control : 1/60(1/50), 1/100(1/120), 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10,000 (Dip Switch) Flickerless(F.F) : ON/OFF (Dip Switch) BLC : ON/OFF (Dip Switch) EI : ON/OFF (Dip Switch) D/N Conversion : Color / BW (Dip Switch) AGC : ON/OFF (Dip Switch)
- Page 17 SPECIFICATIONS * High Resolution DSP Color Camera * Power Power Source, Consumption : 24VAC +/-10%, 60(50)Hz +/-1Hz, 12VDC +/-10% 3.5 Watts. Sensor Information and General Processing Technology : Sony DSP Image Sensor : 1/3" interline transfer CCD (sony chip set) Picture Element : 811(H) x 508(V), NTSC 795(H) x 596(V), PAL...
- Page 18 SPECIFICATIONS Function Auto/Man Shutter Control(E.S.) : Auto(On), Man(Off) (Dip Switch) Manual Shutter Control : 1/60(1/50), 1/100(1/120), 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10,000(Dip Switch) Flickerless(F.F) : ON/OFF (Dip Switch) BLC : ON/OFF (Dip Switch) EI : ON/OFF (Dip Switch) D/N Conversion: Color/BW (Dip Switch) AGC : ON/OFF (Dip Switch)
-
Page 19: External Dimension
EXTERNAL DIMENSION Dimensions 94.5 51.5 Unit: mm Maximum Camera and 2.6L x 1.65W x 1.65H in. Lens Size (6.5L x 4.2W x 4.2H cm) Window Size 0.1 in. (2.5mm thick), impact-resistant P.C (LEXAN) 3.46 in. (8.8cm) diameter Cable Entry Two 3/4" conduit fitting for NPT threaded pipe 1.76 lb. - Page 20 Vista Norbain House, Eskdale Road, Winnersh Triangle, Wokingham Berkshire RG41 5TS Tel: +44 (0) 1 18 944 0123 VISTA VANDAL RESISTANT Fax: +44 (0) 118 944 0999 DAY & NIGHT DOME CAMERA www.vista-cctv.com...
