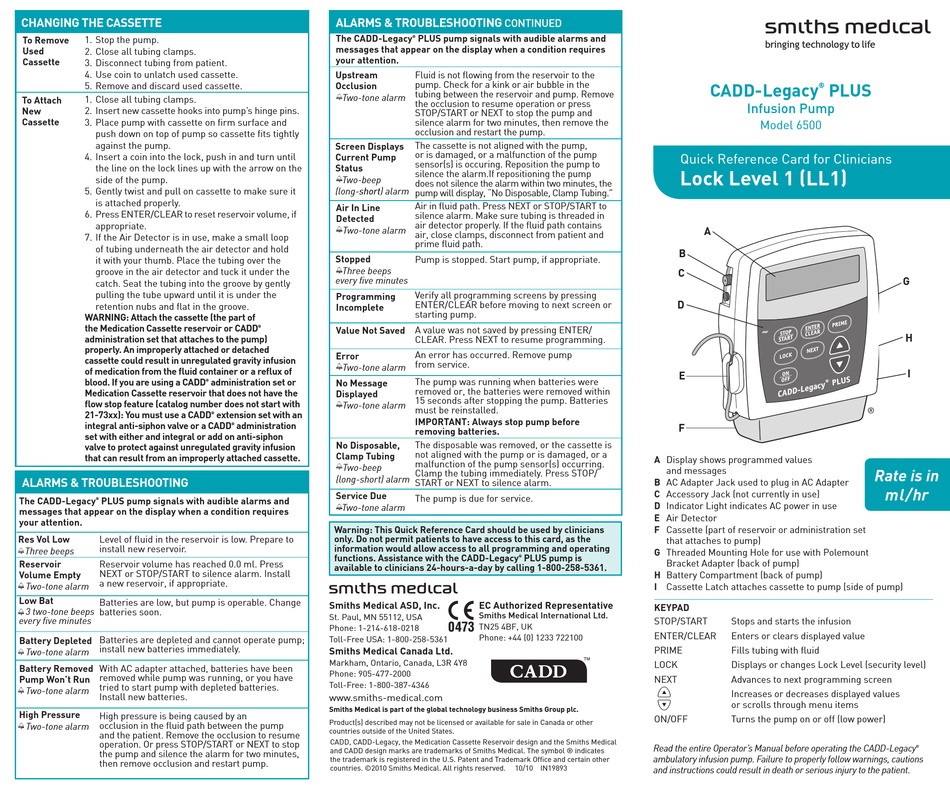

Smiths Medical CADD-Legacy PLUS Quick Reference Card

CHAnGInG THE CASSETTE
To Remove
1. Stop the pump.
Used
2. Close all tubing clamps.
Cassette
3. Disconnect tubing from patient.
4. Use coin to unlatch used cassette.
5. Remove and discard used cassette.
1. Close all tubing clamps.
To Attach
new 2. Insert new cassette hooks into pump's hinge pins.
Cassette
3. Place pump with cassette on firm surface and
push down on top of pump so cassette fits tightly
against the pump.
4. Insert a coin into the lock, push in and turn until
the line on the lock lines up with the arrow on the
side of the pump.
5. Gently twist and pull on cassette to make sure it
is attached properly.
6. Press ENTER/CLEAR to reset reservoir volume, if
appropriate.
7. If the Air Detector is in use, make a small loop
of tubing underneath the air detector and hold
it with your thumb. Place the tubing over the
groove in the air detector and tuck it under the
catch. Seat the tubing into the groove by gently
pulling the tube upward until it is under the
retention nubs and flat in the groove.
WARnInG: Attach the cassette (the part of
the medication Cassette reservoir or CADD
administration set that attaches to the pump)
properly. An improperly attached or detached
cassette could result in unregulated gravity infusion
of medication from the fluid container or a reflux of
blood. If you are using a CADD
medication Cassette reservoir that does not have the
flow stop feature (catalog number does not start with
21-73xx): You must use a CADD
integral anti-siphon valve or a CADD
set with either and integral or add on anti-siphon
valve to protect against unregulated gravity infusion
that can result from an improperly attached cassette.
ALARmS & TRoUBLESHooTInG
The CADD-Legacy PLUS pump signals with audible alarms and
®
messages that appear on the display when a condition requires
your attention.
Res Vol Low Level of fluid in the reservoir is low. Prepare to
install new reservoir.
Three beeps
Reservoir
Reservoir volume has reached 0.0 ml. Press
NEXT or STOP/START to silence alarm. Install
Volume Empty
a new reservoir, if appropriate.
Two-tone alarm
Low Bat
Batteries are low, but pump is operable. Change
3 two-tone beeps batteries soon.
every five minutes
Batteries are depleted and cannot operate pump;
Battery Depleted
install new batteries immediately.
Two-tone alarm
Battery Removed With AC adapter attached, batteries have been
removed while pump was running, or you have
Pump Won't Run
tried to start pump with depleted batteries.
Two-tone alarm
Install new batteries.
High Pressure
High pressure is being caused by an
occlusion in the fluid path between the pump
Two-tone alarm
and the patient. Remove the occlusion to resume
operation. Or press STOP/START or NEXT to stop
the pump and silence the alarm for two minutes,
then remove occlusion and restart pump.
ALARmS & TRoUBLESHooTInG
The CADD-Legacy
messages that appear on the display when a condition requires
your attention.
Upstream
occlusion
Two-tone alarm
Screen Displays
Current Pump
Status
Two-beep
(long-short) alarm
Air In Line
Detected
Two-tone alarm
Stopped
Three beeps
every five minutes
Programming
Incomplete
®
Value not Saved
Error
Two-tone alarm
administration set or no message
®
Displayed
Two-tone alarm
extension set with an
®
administration
®
no Disposable,
Clamp Tubing
Two-beep
(long-short) alarm
Service Due
Two-tone alarm
Warning: This Quick Reference Card should be used by clinicians
only. Do not permit patients to have access to this card, as the
information would allow access to all programming and operating
functions. Assistance with the CADD-Legacy
available to clinicians 24-hours-a-day by calling 1-800-258-5361.
Smiths medical ASD, Inc.
St. Paul, MN 55112, USA
Phone: 1-214-618-0218
Toll-Free USA: 1-800-258-5361
Smiths medical Canada Ltd.
Markham, Ontario, Canada, L3R 4Y8
Phone: 905-477-2000
Toll-Free: 1-800-387-4346
www.smiths-medical.com
Smiths medical is part of the global technology business Smiths Group plc.
Product(s) described may not be licensed or available for sale in Canada or other
countries outside of the United States.
CADD, CADD-Legacy, the Medication Cassette Reservoir design and the Smiths Medical
and CADD design marks are trademarks of Smiths Medical. The symbol ® indicates
the trademark is registered in the U.S. Patent and Trademark Office and certain other
countries. ©2010 Smiths Medical. All rights reserved.
Continued
PLUS pump signals with audible alarms and
®
Fluid is not flowing from the reservoir to the
pump. Check for a kink or air bubble in the
tubing between the reservoir and pump. Remove
the occlusion to resume operation or press
STOP/START or NEXT to stop the pump and
silence alarm for two minutes, then remove the
occlusion and restart the pump.
The cassette is not aligned with the pump,
or is damaged, or a malfunction of the pump
sensor(s) is occuring. Reposition the pump to
silence the alarm.If repositioning the pump
does not silence the alarm within two minutes, the
pump will display, "No Disposable, Clamp Tubing."
Air in fluid path. Press NEXT or STOP/START to
silence alarm. Make sure tubing is threaded in
air detector properly. If the fluid path contains
air, close clamps, disconnect from patient and
prime fluid path.
Pump is stopped. Start pump, if appropriate.
Verify all programming screens by pressing
ENTER/CLEAR before moving to next screen or
starting pump.
A value was not saved by pressing ENTER/
CLEAR. Press NEXT to resume programming.
An error has occurred. Remove pump
from service.
The pump was running when batteries were
removed or, the batteries were removed within
15 seconds after stopping the pump. Batteries
must be reinstalled.
ImPoRTAnT: Always stop pump before
removing batteries.
The disposable was removed, or the cassette is
not aligned with the pump or is damaged, or a
malfunction of the pump sensor(s) occurring.
Clamp the tubing immediately. Press STOP/
START or NEXT to silence alarm.
The pump is due for service.
PLUS pump is
®
EC Authorized Representative
Smiths Medical international Ltd.
TN25 4BF, UK
Phone: +44 (0) 1233 722100
10/10 IN19893

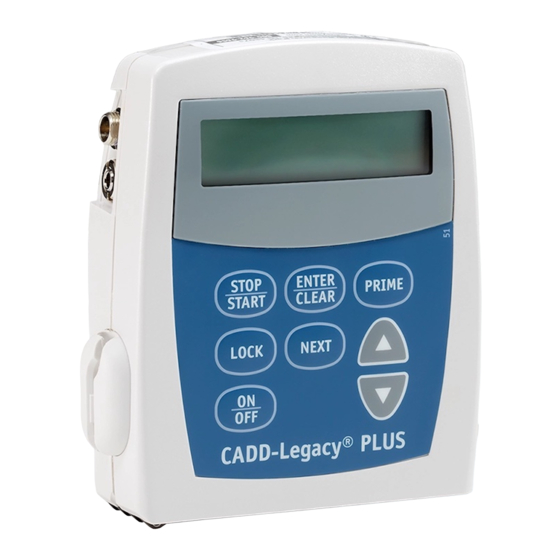

CADD-Legacy PLUS
®
infusion Pump
Model 6500
Quick Reference Card for Clinicians
Lock Level 1 (LL1)
A
B
C
D
E
®
F
A Display shows programmed values
and messages
B AC Adapter Jack used to plug in AC Adapter
C Accessory Jack (not currently in use)
D Indicator Light indicates AC power in use
E Air Detector
F Cassette (part of reservoir or administration set
that attaches to pump)
G Threaded Mounting Hole for use with Polemount
Bracket Adapter (back of pump)
H Battery Compartment (back of pump)
I Cassette Latch attaches cassette to pump (side of pump)
KEYPAD
STOP/START Stops and starts the infusion
ENTER/CLEAR Enters or clears displayed value
PRIME Fills tubing with fluid
LOCK Displays or changes Lock Level (security level)
NEXT Advances to next programming screen
´
Increases or decreases displayed values
or scrolls through menu items
Î
ON/OFF Turns the pump on or off (low power)
Read the entire Operator's Manual before operating the CADD-Legacy
ambulatory infusion pump. Failure to properly follow warnings, cautions
and instructions could result in death or serious injury to the patient.
G
H
I
®
Rate is in
ml/hr
®
