Smiths Medical CADD-Legacy PLUS Pump Quick Start Manual

CADD-Legacy
Model 6500
Intermittent Mode Training Guide
WARNING: This pump delivers medication at a continuous rate or intermittent rate in milliliters per hour (ml/hr).
Programming the pump at a delivery rate other than what is prescribed will cause over- or under-delivery of medication.
10
Upstream Sensor (Status Only)
Verify setting is correct. Screen shows whether
sensor is turned On or Off. To change setting,
see BIOMED FUNCTIONS.
9
Air Detector (Status Only)
Verify setting is correct. Screen shows whether
sensor is turned On (High or Low) or Off. To
change setting, see BIOMED FUNCTIONS.
8
Given (ml)
Displays the total volume of medication
delivered since last cleared.
Press ENTER/CLEAR to clear value.
7
Dose Starts In (hrs:min)
Scroll to the amount of time before the start of
the next dose or "Immediate" if the dose is to
start now. Press ENTER/CLEAR to enter value.
PLUS Pump
®
Install new batteries in battery compartment. Slide battery door closed.

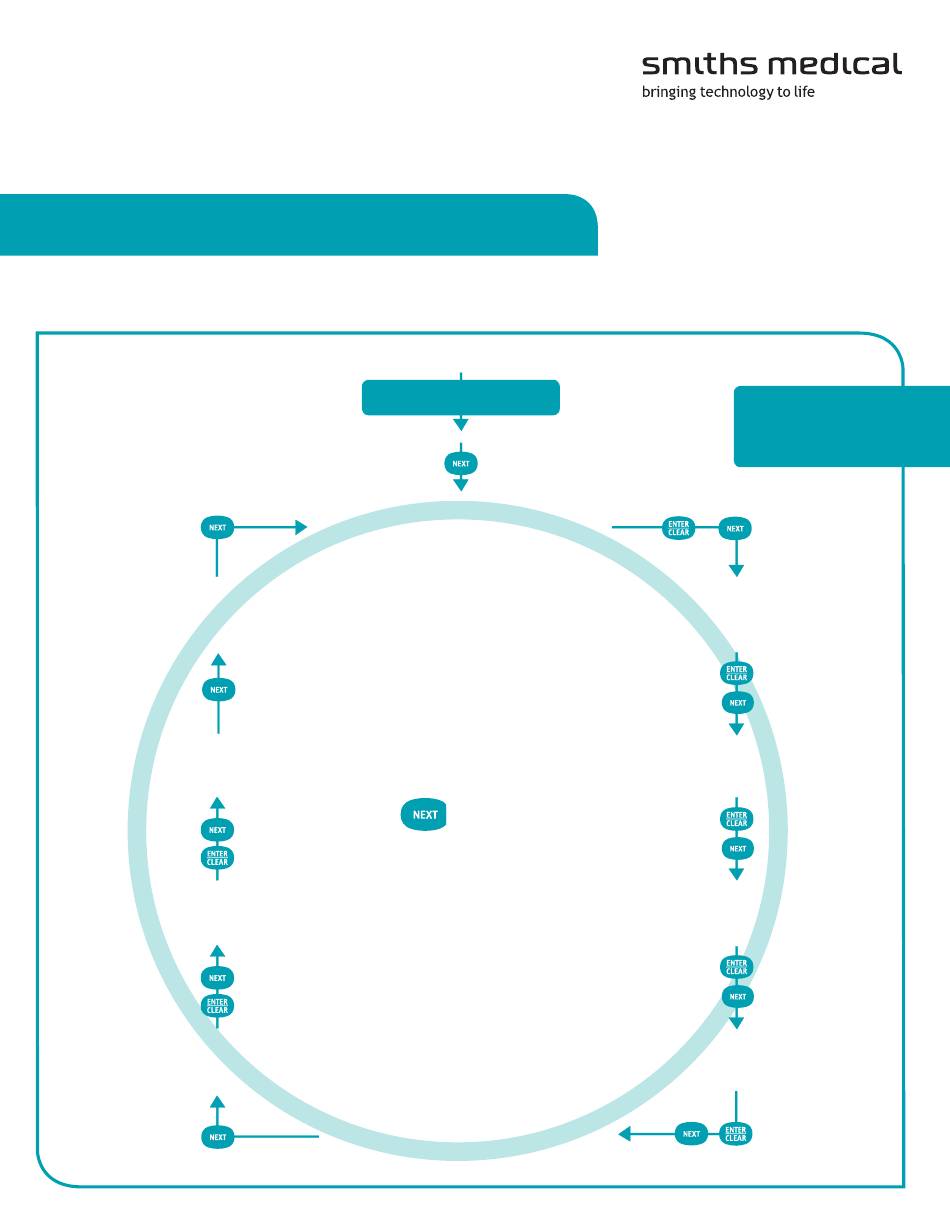

Intermittent Delivery Mode
In LLO, STOPPED
To change delivery mode, see Biomed Functions.
1
Reservoir Volume (ml)
Scroll to the volume contained in the
Medication Cassette Reservoir.
Press ENTER/CLEAR to enter value.
SCROLLING
6
Dose Remaining (hrs:min)
Verify dose is on schedule. (Appears only
during dosing or if dose is interrupted.)
2
3
Use the up and
down arrow keys
to increase or
decrease the value
on the screen.
4
5
Rate is in
ml/hr
Dose Volume (ml)
Scroll to the volume of medication to
be delivered during the dose. Press
ENTER/CLEAR to enter value.
Dose Duration (hrs:min)
Scroll to the amount of time the dose is
to be delivered over. Press ENTER/CLEAR
to enter value.
Dose Cycle (hrs:min)
Scroll to the amount of time between the
start of one dose and the start of the next
dose. Press ENTER/CLEAR to enter value.
Keep Vein Open (KVO) Rate (ml/hr)
Scroll to the KVO rate, the ml/hr rate the
pump is to infuse between doses. Press
ENTER/CLEAR to enter value.
