Module programming
Refer to "LED diagnostics and troubleshooting" on page 23 for more information and for troubleshooting purposes.

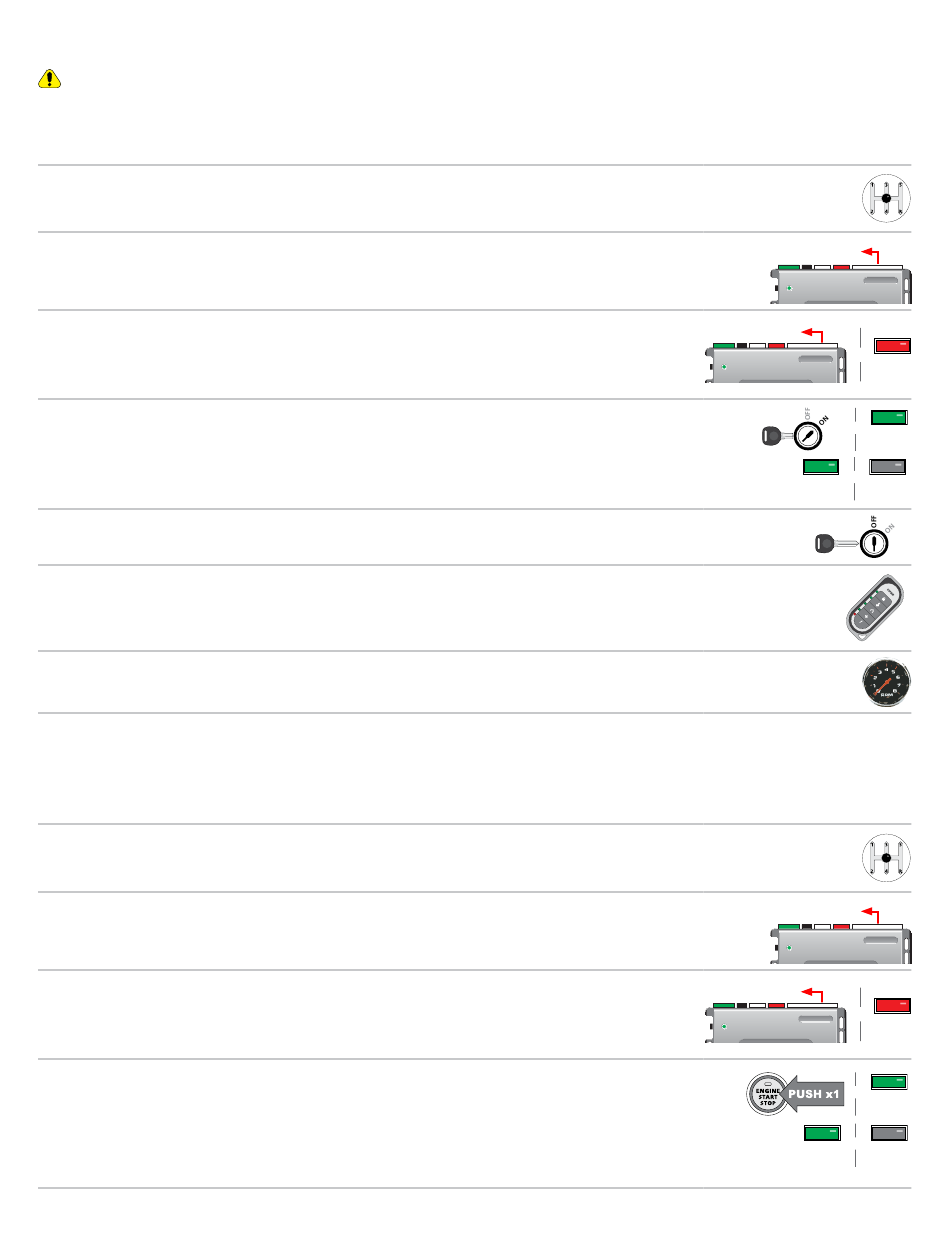

Key type vehicles
To connect the module:
Please ensure that the vehicle is in a safe location and cannot move forward during
1
programming. For vehicles equipped with a manual transmission, make sure the gearshift
lever is in the neutral position.
Connect all the harnesses to the Directed Digital Solutions, EXCEPT the 12-pin main power
2
harness.
Connect the 12-pin main power harness, and wait until the LED turns ON solid red.
3
Note: To skip the transponder programming and use convenience features only, press the
programming button 5 times. Wait unil the LED turns ON solid orange before proceeding.
Turn the ignition ON. The LED will flash green then remain ON solid green
for 3 seconds, then will turn OFF.
4
Note: When skipping transponder programming, the LED flashes orange,
then turns ON solid orange for 3 seconds, before turning OFF.
5
Turn the vehicle ignition OFF.
Pair remotes (if applicable). For information on how to pair a specific remote, please
6
refer to its corresponding owner documentation, which can be found inside the product
packaging of the complete system or on www.directechs.com.*
By default, the tachometer is preprogrammed for the vehicle. For instructions on how to
7
program tach, see page 26.
* Your aftermarket remote may differ from the model shown in the illustrations.
Smart key vehicles
To connect the module:
Please ensure that the vehicle is in a safe location and cannot move forward during
1
programming. For vehicles equipped with a manual transmission, make sure the gearshift
lever is in the neutral position.
Connect all the harnesses to the Directed Digital Solutions, EXCEPT the 12-pin main power
2
harness.
Connect the 12-pin main power harness, and wait until the LED turns ON solid red.
3
Note: To skip the transponder programming and use convenience features only, press the
programming button 5 times. Wait unil the LED turns ON solid orange before proceeding.
Turn the ignition ON. The LED will flash green then remain ON solid green
for 3 seconds, then will turn OFF.
4
Note: When skipping transponder programming, the LED flashes orange,
then turns ON solid orange for 3 seconds, before turning OFF.
21
Must be connected LAST
Key OUT
Key IN
START
START
Must be connected LAST
© 2017-08-17 Directed. All rights reserved.
Connect all but the
12-pin harness
&
Solid
Key IN
Key IN
&
Flashes
START
START
green
&
Solid green
Off
x 3 secs
Key OUT
Key IN
START
Pair
remotes*
Initialize
tachometer
Connect all but the
12-pin harness
&
Solid
&
Flashes
green
&
Solid green
Off
x 3 secs
Directed Digital Solutions FORD12
