Installation (Wiring Diagrams & Vehicle Wiring Reference Charts); Wiring Diagram - With Oem Remote Start And With T-Harness (Thfoc2) - Directed DIRECTECHS FORD12 Installation Manual

Installation (wiring diagrams & vehicle wiring reference charts)

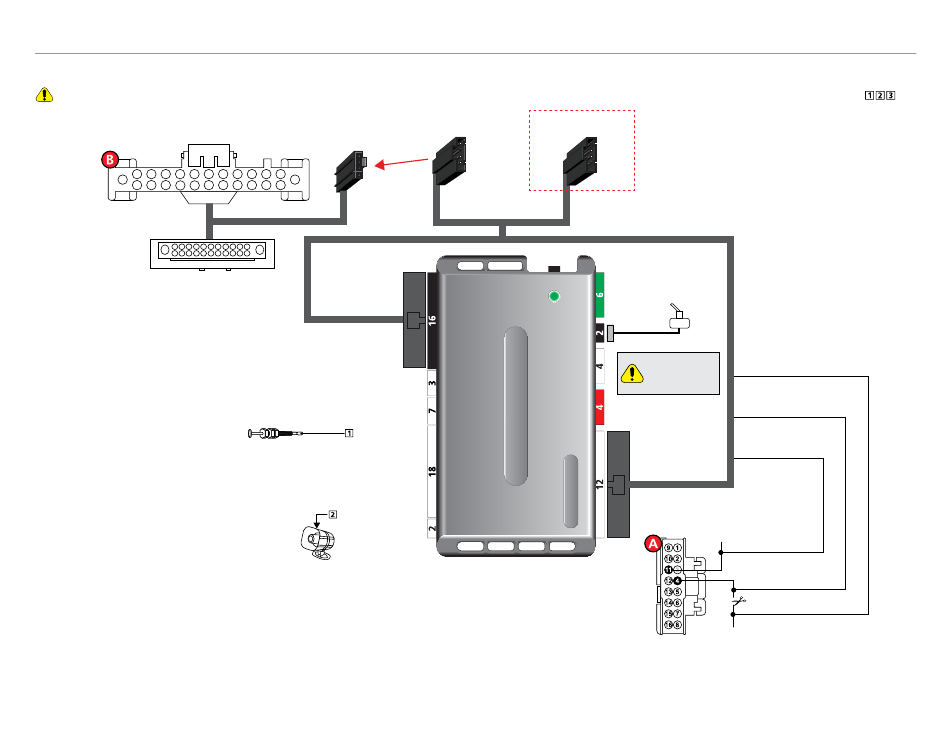

Wiring Diagram - with OEM Remote Start and
Refer to "Pre-installation and application warnings" on page 4 for important information, such as the description of each special note referenced in the diagram (
Gateway Module
(on OBDII connector or
right of steering column)
8
with T-Harness (THFOC2)
Type 2
THFOC2
(optional T-Harness)
Hood Pin Hood Pin
(-) Hood Input: Gray: 3
(+) Siren Output: Brown: 17
Siren
Type 1
4-pin
connectors
NOT USED
Remote Start Safety
Override Switch
The Remote Start
Safety Override
Switch MUST be in
the ON position.
Headlight Switch
).
Parking Lights Interrupt
(vehicle side): Yellow/Red
Parking Lights Interrupt
(conn. side): Orange/Red
(-) Parking Lights Output:
Brown/Red
(-) Parking Lights:
Gray or Yellow, pin 11
Cut
Parking Light Interrupt: Pin 4
