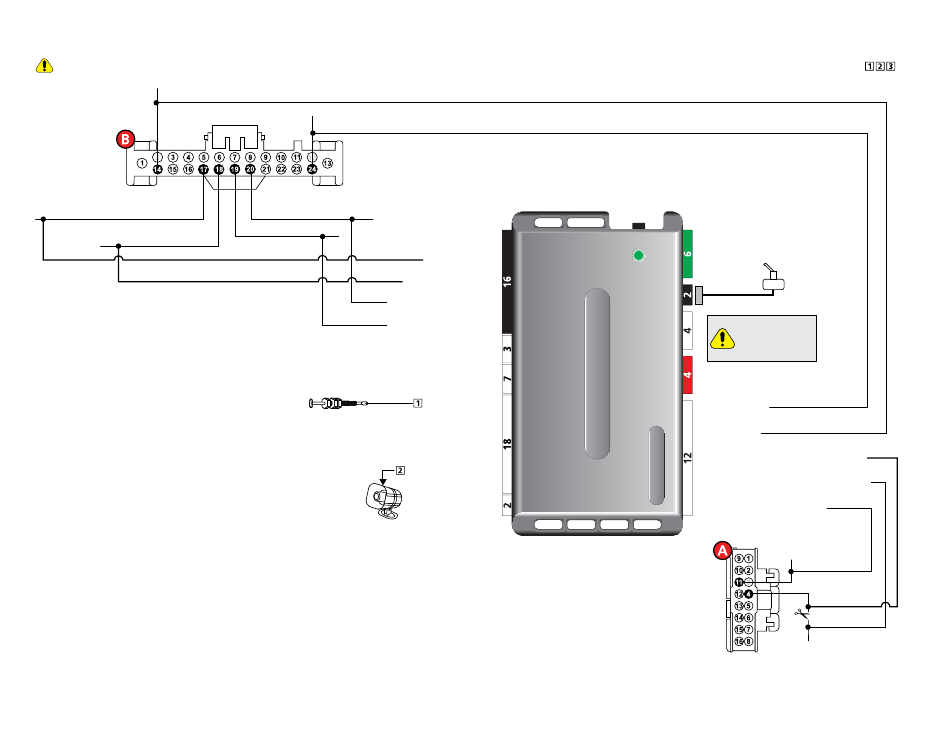

Wiring Diagram - without OEM Remote Start and
Refer to "Pre-installation and application warnings" on page 4 for important information, such as the description of each special note referenced in the diagram (
(-) Ground: Pin 14
HS CAN 1 Low: Gray/Blue or Gray, pin 17
HS CAN 1 High: Green/Orange or Green, pin 18
11
without T-Harness
(+)12V: Pin 24
Gateway Module
(on OBDII connector or
right of steering column)
HS CAN 2 High:
White/Blue or Blue, pin 20
HS CAN 2 Low: White, pin 19
HS CAN 1 High: Tan/Black: 5
HS CAN 2 High: Orange/Green: 7
HS CAN 2 Low: Orange/Brown: 8
Hood Pin Hood Pin
(+) Siren Output: Brown: 17
Siren
HS CAN 1 Low: Tan: 4
(-) Hood Input: Gray: 3
Remote Start Safety
Override Switch
The Remote Start
Safety Override
Switch MUST be in
the ON position.
10: Red: (+) 12V Input
9: Black: (-) Ground
5: Orange/Red: Parking Light Interrupt (conn. side)
4: Yellow/Red: Parking Light Interrupt (vehicle side)
3: Brown/Red: (-) Parking Light Output
(-) Parking Lights:
Gray or Yellow, pin 11
Cut
Parking Light Interrupt: Pin 4
Headlight Switch
