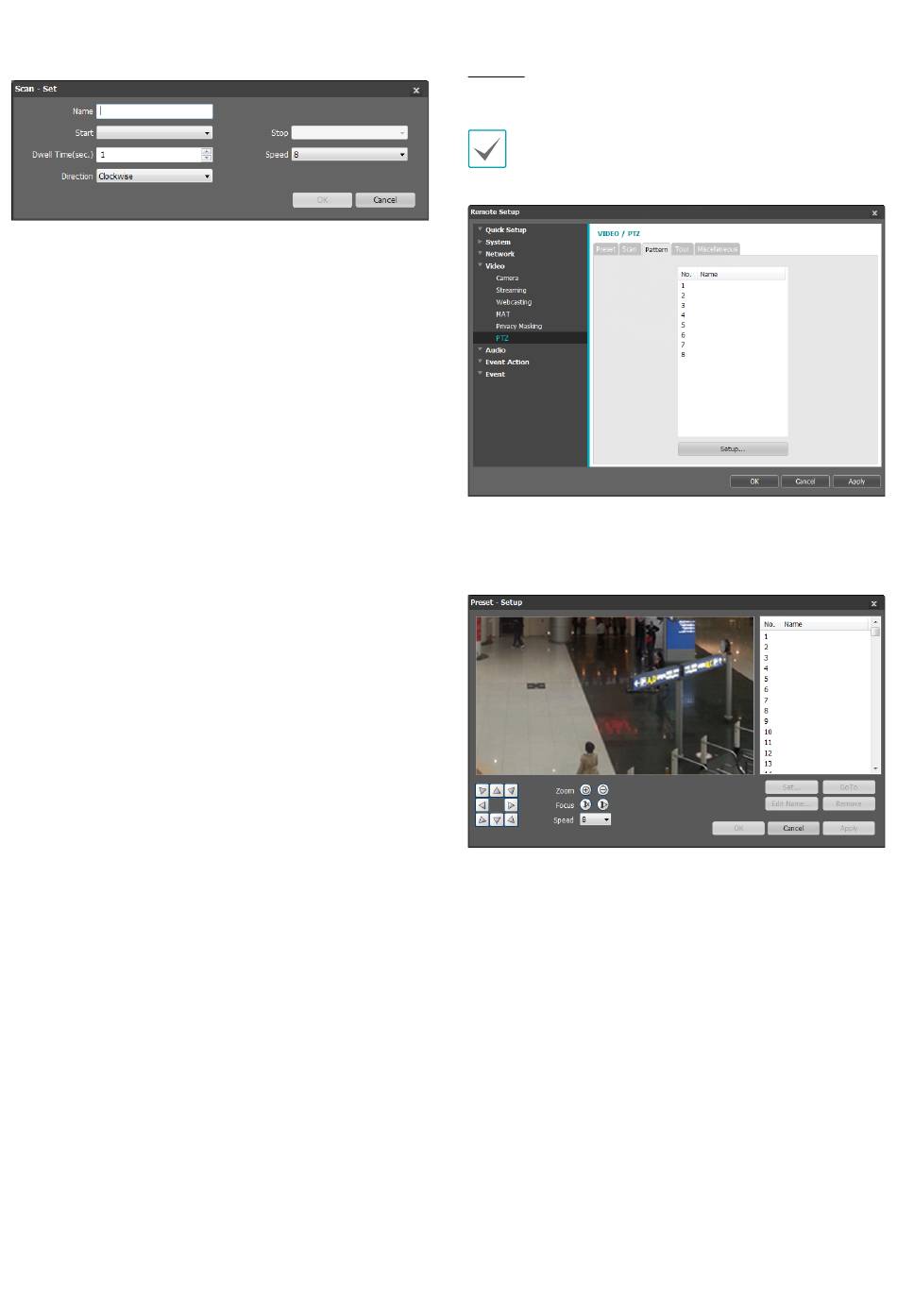

• Set: Displays a setup window.
- Name: Enter a name for the scan profile.
- Start, Stop: Specify which presets to use as start
and stop points.
- Dwell Time (sec.): Specify how long the camera will
dwell at start and stop positions.
- Speed, Direction: Specify scanning speed and
direction.
• Run: Select a scan profile and then click the Run
button to perform the scan function.
• Edit: Used to edit the selected scan profile.
• Remove: Used to remove the selected scan profile.
Pattern
Select the Pattern tab and configure pattern settings.
Used to set up a pattern profile for the camera to
follow along.
Displays a list of pattern. The number indicates the
pattern number. Click Setup button to configure the
pattern settings.
