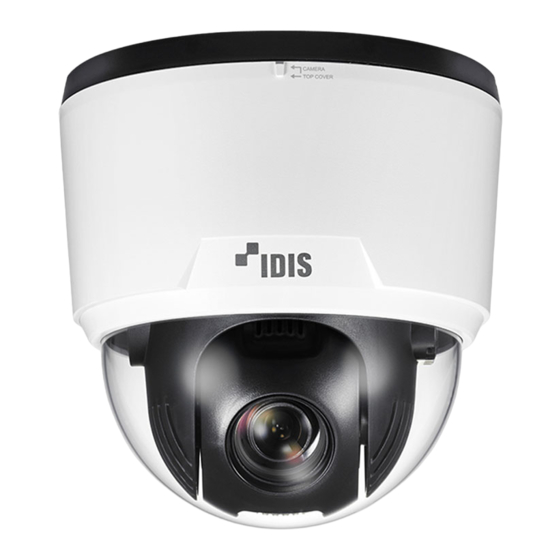

- Page 1 Network Camera Quick Guide DC-S6281FX DC-S6281HX Powered by...
-
Page 2: Safety Precautions
Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1. Read Instructions (Uninterruptible Power Supply) system for by a qualified technician to restore the safe operation in order to prevent damage equipment to its normal operation. -
Page 3: Fcc Compliance Statement
FCC Compliance Statement THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. - Page 4 Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. Some parts may differ depending on the situation. Network Camera Screws and Anchors (4ea.) DC-S6281HX model only DC-S6281HX model only Quick Guide Indoor Bracket, Screw Grounding Cable, Screw DC-S6281HX model only...
- Page 5 Indoor Bracket Outdoor Sun Shield M5 Screw Hole Outdoor Bracket M3 Screw Hole Flushed Housing The outdoor bracket and sun shield are purchased separately. Ask your dealer or distributor about purchasing it. Wall/Ceiling Mounting Hole Install Screw Hole Safety Wire M4 Screw Hole M5 Screw Hole Pipe Hole...
-
Page 6: Camera Installation
Hook the safety wire of the bracket on the safety wire Cable ring of the camera body. Connect external devices, the network cable, and the power adapter. Connect the camera body to the indoor bracket. Fix the install screws of the camera body up to the install screw holes of the bracket and then turn the camera body by 25°... - Page 7 Screw the sun shield to the camera body by using Connect the cable from the camera to the pipe. the M3 screws provided with the sun shield. Screw the sun shield to the outdoor bracket by Hook the safety wire of the outdoor bracket on the using the M5 screws provided with the camera.
-
Page 8: Specifications
Specifications External DC-S6281HX 7.87” x 7.91” (200mm x 201mm) Dimensions DC-S6281FX 8.91” x 8.01” (226.5mm x 203.5mm) (Ø x H) Weight (Main DC-S6281HX 5.59lbs. (2.54kg) Unit) DC-S6281FX 4.01 lbs. (1.82kg) Operating DC-S6281HX -40°C ~ +55°C (-40°F ~ +131°F) Temperature DC-S6281FX -10°C ~ +50°C (14°F ~ +122°F) Boot Up DC-S6281HX... - Page 12 IDIS Co., Ltd. For more information, please visit www.idisglobal.com...
