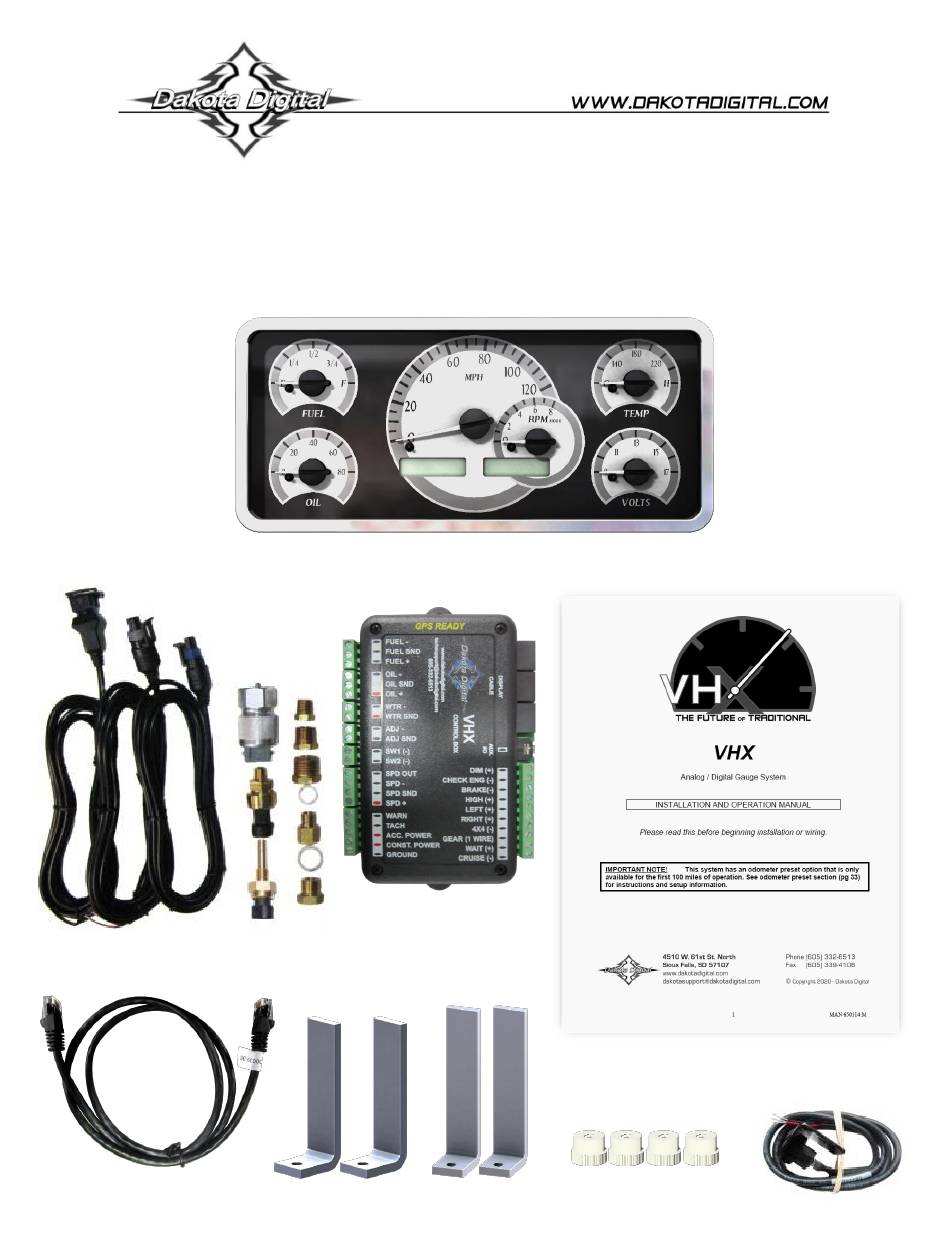

VHX-63J-WAG
Dakota Digital VHX Instrument Installation
For 1963-72 Jeep Wagoneer, 1963-72 J-Trucks
and 1967-72 Jeepster Commando
Your new VHX-63J-WAG kit includes:

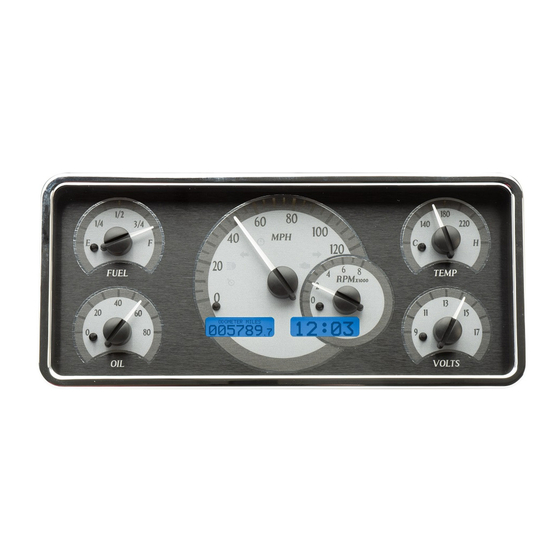

VHX Display
Universal Sender Pack
Control Box
Installation Manuals
2x Short
2x Long
36" CAT5e Cable
Brackets
Brackets
4x Nylon
Switch
Thumb Nuts
Assembly
Manual # 650787
Advertisement
Table of Contents
Related Manuals for Dakota Digital VHX-63J-WAG
Summary of Contents for Dakota Digital VHX-63J-WAG
- Page 1 VHX-63J-WAG Dakota Digital VHX Instrument Installation For 1963-72 Jeep Wagoneer, 1963-72 J-Trucks and 1967-72 Jeepster Commando Your new VHX-63J-WAG kit includes: VHX Display Universal Sender Pack Control Box Installation Manuals 2x Short 2x Long 36” CAT5e Cable Brackets Brackets 4x Nylon...
- Page 2 Installation 1. Remove the factory instrument cluster by disengaging the four spring clips securing the instrument cluster to the dash. No components from the original cluster will be reused, and it may be set aside. 2. Carefully insert the new VHX system into the front of the dash. From the back side, place the two provided Short Brackets on the top studs, and the two Long Brackets on the bottom studs.
