VHX-63F-GAL
Dakota Digital VHX Instrument Installation
For 1963-'64 Ford Galaxie

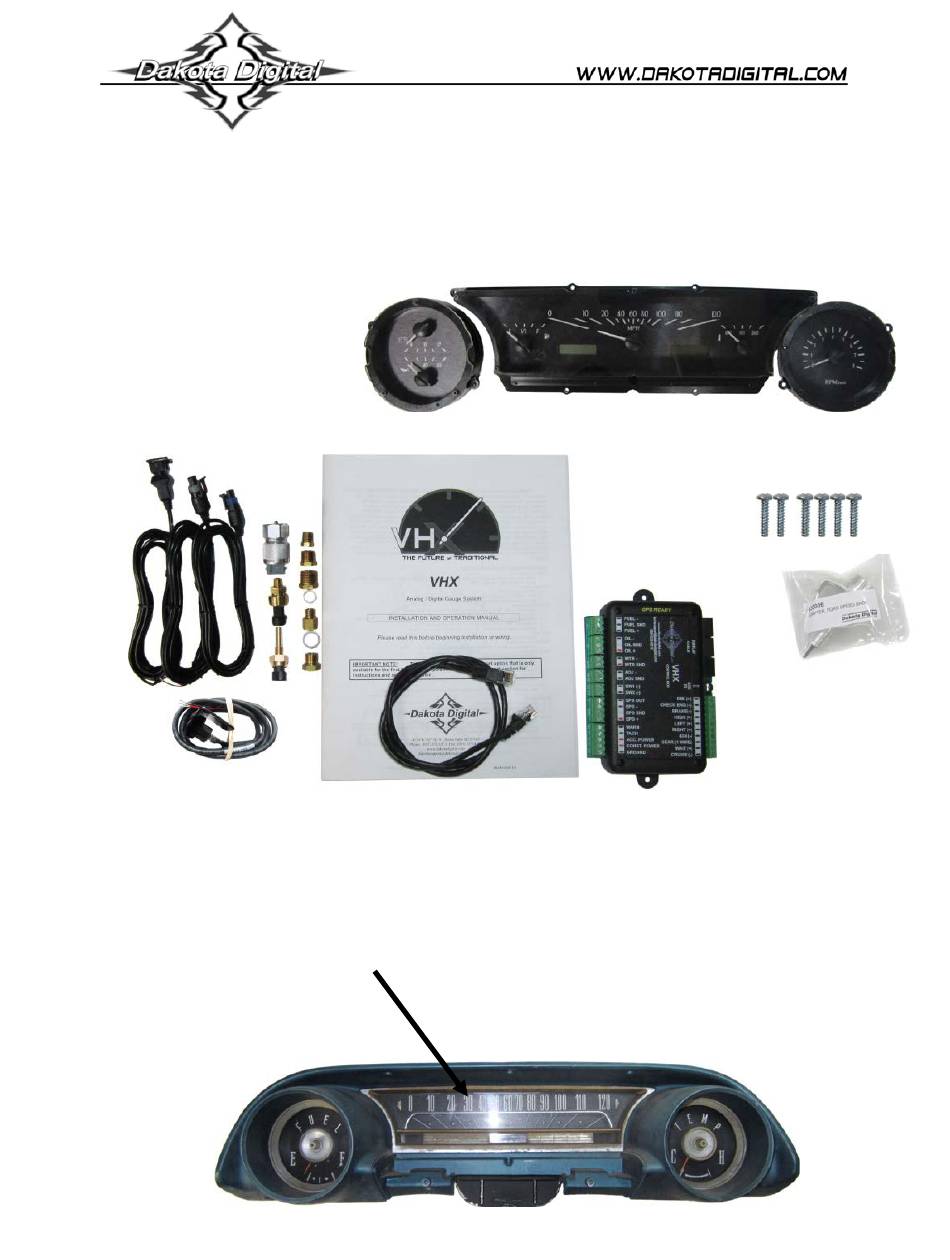

Your new VHX-63F-GAL kit includes:
VHX Display
Universal Sender
Installation Manuals
Pack
4X 6-20 X 3/8"
6X 6-20 X 5/8"
Ford Speed
Adapter
Switch Assembly
Control Box
CAT5 Cable
Installation
1. Remove the stock gauge cluster from the dash. Retain all hardware for reassembly.
Manual #650559A
