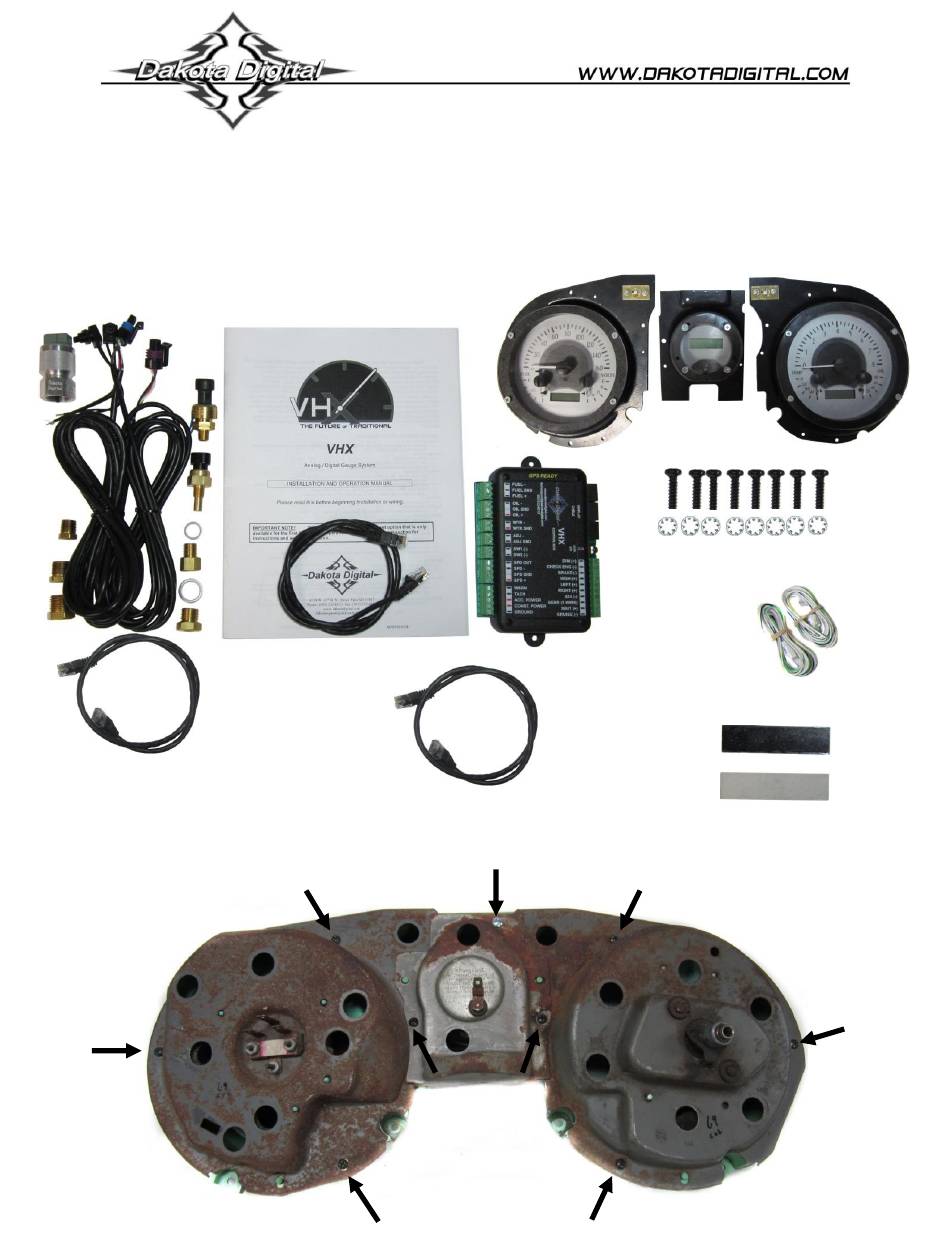

Your new VHX-69C-CVL kit includes:
Universal Sender Pack
Installation
1. Remove the bezel from the dashboard, then, remove the instrument housing from the bezel by
removing the nine screws shown below.
VHX-69C-CVL
Dakota Digital VHX Instrument Installation
For 1969 Chevrolet Chevelle, El Camino and Malibu
VHX Displays
Installation Manuals
(2) 36" CAT5 Cable
(1) 24" CAT5 Cable
(9) ½" Screws and lock washers
Control Box
(2) Blinker Harness
Gear Lens
Manual # 650380A
