Wiring:
PWR
-
DIM
-
SND
-
Gauge case
-
Mounting:
The gauge requires an oval hole 1-7/16" high x 3-1/16" wide. It should be inserted into the opening from the front
and the two L-clamps will be installed from the back. Tighten a nut on each of the L-clamps so that the gauge is secure.
Gauge depth to the back of the case is 1". Gauge depth including the mounting studs is 1-7/8".
Factory settings:
Sender type:
Lo warning point:
Hi warning point:
The oil pressure gauge will operate and read correctly between the pressure range of 0-400 psi, 0-150 psi, 0-75 psi, or
0-30 psi depending on the sender type.
The gauge has a user adjustable low and high warning level. This can be set to indicate when the pressure is too low
or too high.
Sender choices:
Gauge Setting Max. Pressure Display Resolution
150
150 psi
400
400 psi
75
73 psi
30
29 psi
These senders have a 1/8" NPT fittings except for the SEN-03-3 which has 10mm. The engine and sender threads should
be cleaned before installation and no tape or sealant should be used on the threads. The threads are self-sealing. On
single terminal senders, if the sender is mounted away from the engine the sender case must be grounded. On dual
terminal senders either terminal is connected to the gauge GND and the remaining terminal is connected to SND.
Contact Dakota Digital if you need to special order a metric thread sender.
The sender must be Dakota Digital part SEN-03-1, 03-3, 03-5, 10-1, or 10-2 . Sending units from other manufacturers
will cause incorrect readings. If a sender is not connected properly, the display will show "". If the SND terminal is
shorted to ground, the display will show "---".

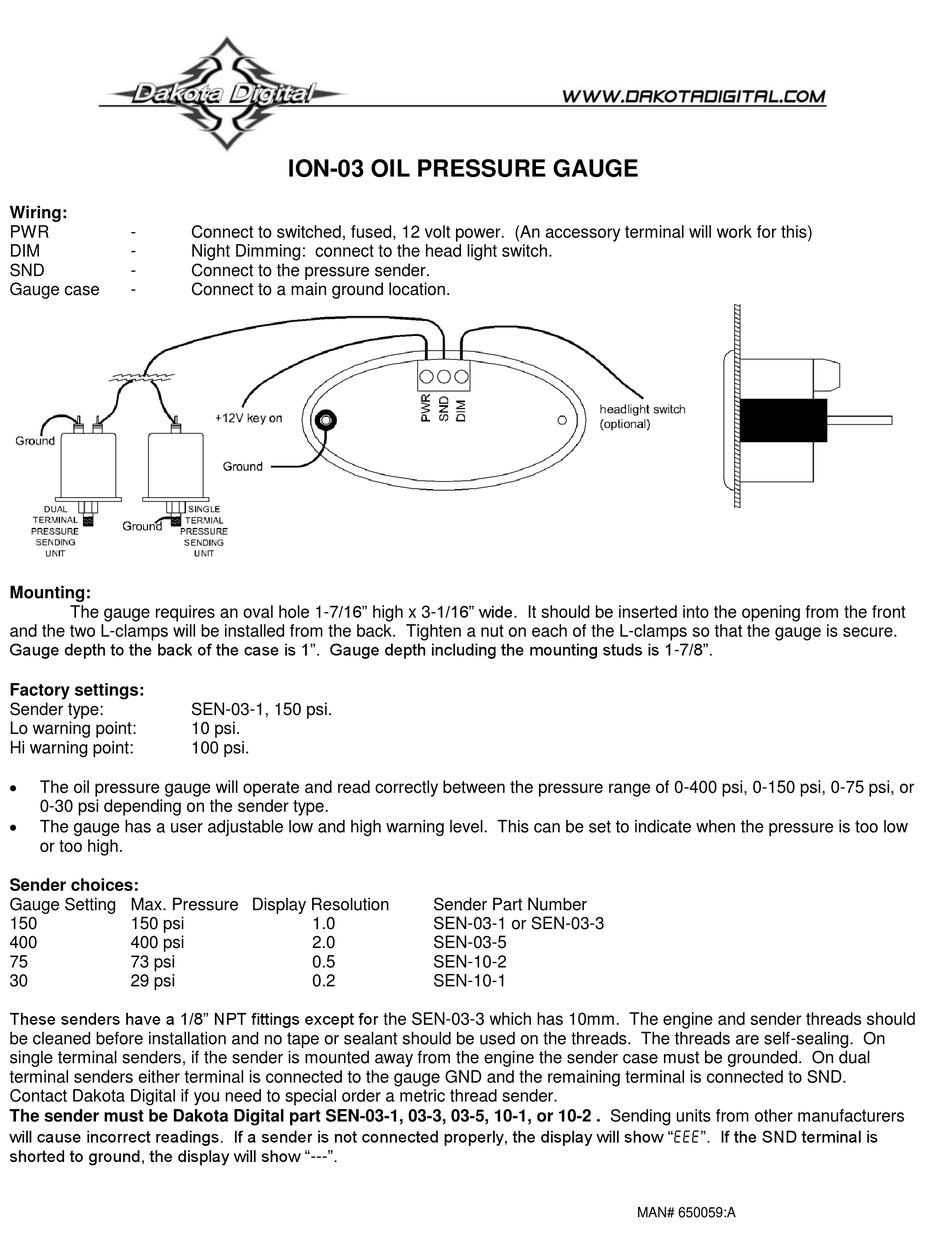

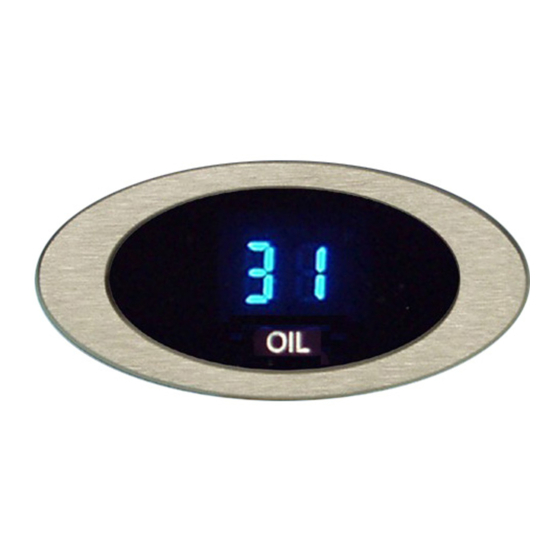

ION-03 OIL PRESSURE GAUGE
Connect to switched, fused, 12 volt power. (An accessory terminal will work for this)
Night Dimming: connect to the head light switch.
Connect to the pressure sender.
Connect to a main ground location.
SEN-03-1, 150 psi.
10 psi.
100 psi.
1.0
2.0
0.5
0.2
Sender Part Number
SEN-03-1 or SEN-03-3
SEN-03-5
SEN-10-2
SEN-10-1
MAN# 650059:A
