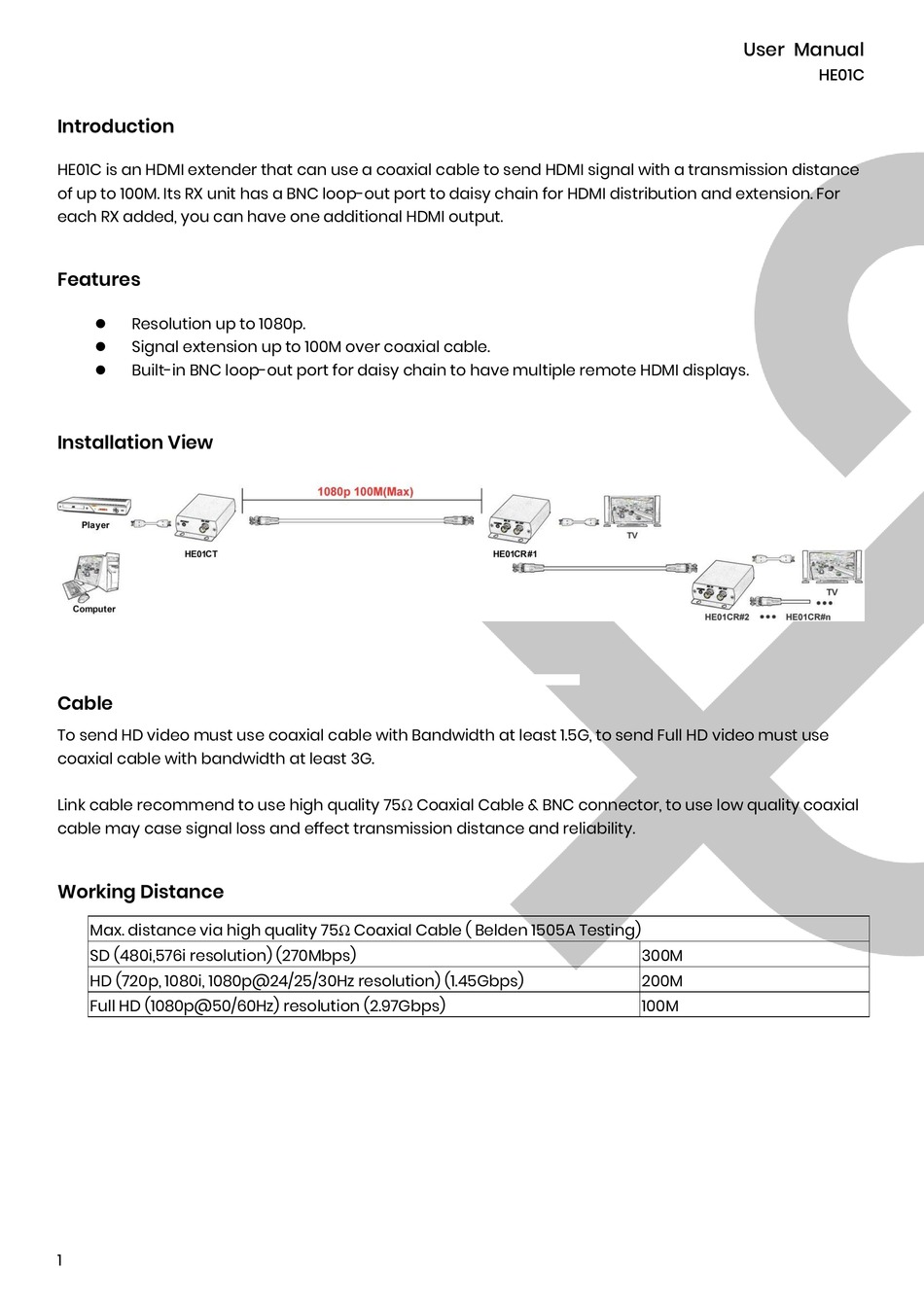

Introduction

HE01C is an HDMI extender that can use a coaxial cable to send HDMI signal with a transmission distance
of up to 100M. Its RX unit has a BNC loop-out port to daisy chain for HDMI distribution and extension. For
each RX added, you can have one additional HDMI output.

Features

Resolution up to 1080p.

Signal extension up to 100M over coaxial cable.

Built-in BNC loop-out port for daisy chain to have multiple remote HDMI displays.


Installation View

Cable
To send HD video must use coaxial cable with Bandwidth at least 1.5G, to send Full HD video must use
coaxial cable with bandwidth at least 3G.
Link cable recommend to use high quality 75Ω Coaxial Cable & BNC connector, to use low quality coaxial
cable may case signal loss and effect transmission distance and reliability.

Working Distance

Max. distance via high quality 75Ω Coaxial Cable ( Belden 1505A Testing)
SD (480i,576i resolution) (270Mbps)
HD (720p, 1080i, 1080p@24/25/30Hz resolution) (1.45Gbps)
Full HD (1080p@50/60Hz) resolution (2.97Gbps)
1
Receiver#1
300M
200M
100M
