max super arm 1300
7"
(180 mm)
4.5" (115 mm)
4.5" (116 mm)
max super arm 2300
9.25"
(235 mm)
4.5"
(115 mm)
7.3"
(186 mm)
MAX Super 1300/2300 Arms V1

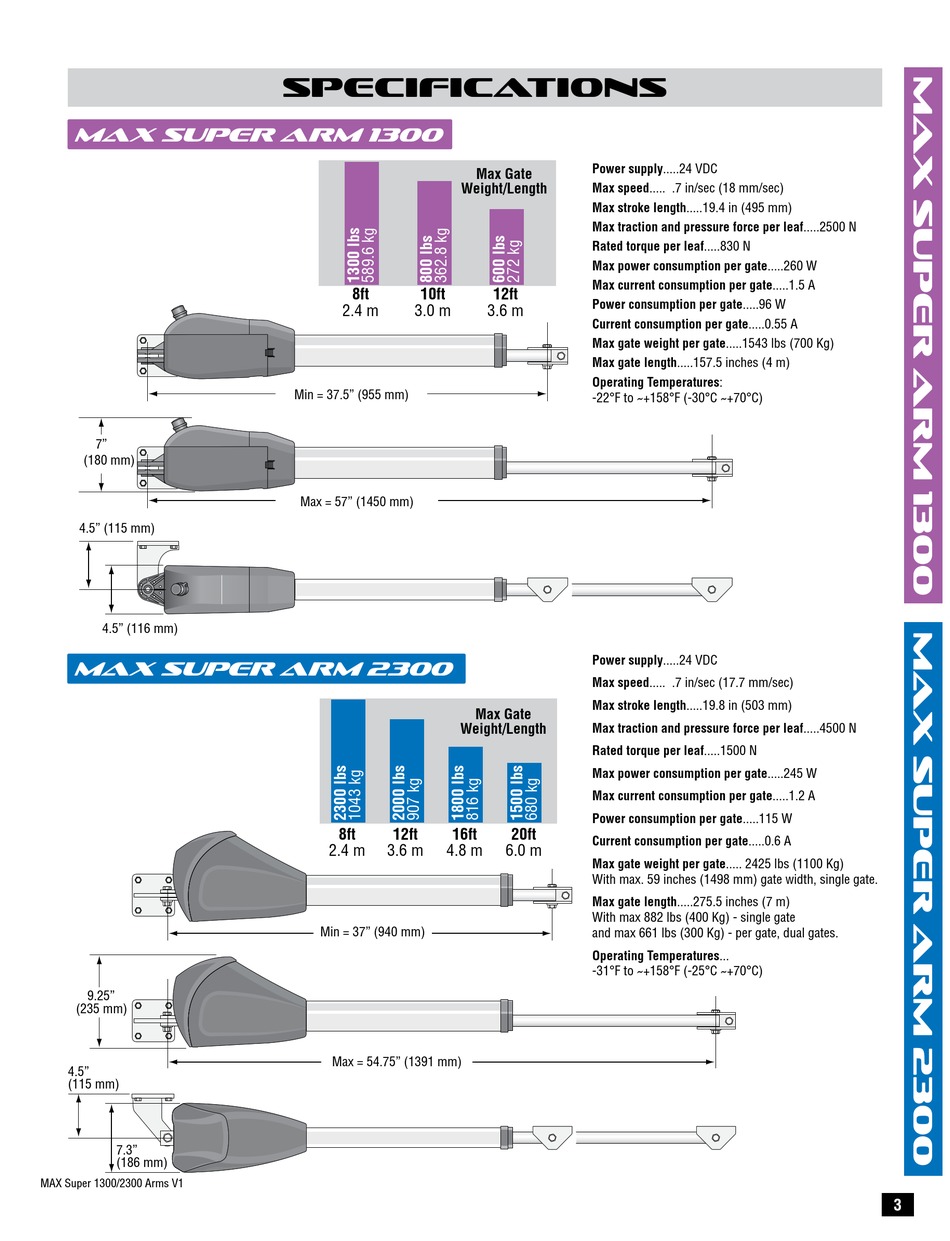

specifications
Weight/Length
8ft 10ft
2.4 m 3.0 m
Min = 37.5" (955 mm)
Max = 57" (1450 mm)
Weight/Length
8ft 12ft 16ft
2.4 m 3.6 m 4.8 m
Min = 37" (940 mm)
Max = 54.75" (1391 mm)
Power supply.....24 VDC
Max Gate
Max speed..... .7 in/sec (18 mm/sec)
Max stroke length.....19.4 in (495 mm)
Max traction and pressure force per leaf.....2500 N
Rated torque per leaf.....830 N
Max power consumption per gate.....260 W
Max current consumption per gate.....1.5 A
12ft
Power consumption per gate.....96 W
3.6 m
Current consumption per gate.....0.55 A
Max gate weight per gate.....1543 lbs (700 Kg)
Max gate length.....157.5 inches (4 m)
Operating Temperatures:
-22°F to ~+158°F (-30°C ~+70°C)
Power supply.....24 VDC
Max speed..... .7 in/sec (17.7 mm/sec)
Max stroke length.....19.8 in (503 mm)
Max Gate
Max traction and pressure force per leaf.....4500 N
Rated torque per leaf.....1500 N
Max power consumption per gate.....245 W
Max current consumption per gate.....1.2 A
Power consumption per gate.....115 W
20ft
Current consumption per gate.....0.6 A
6.0 m
Max gate weight per gate..... 2425 lbs (1100 Kg)
With max. 59 inches (1498 mm) gate width, single gate.
Max gate length.....275.5 inches (7 m)
With max 882 lbs (400 Kg) - single gate
and max 661 lbs (300 Kg) - per gate, dual gates.
Operating Temperatures...
-31°F to ~+158°F (-25°C ~+70°C)
