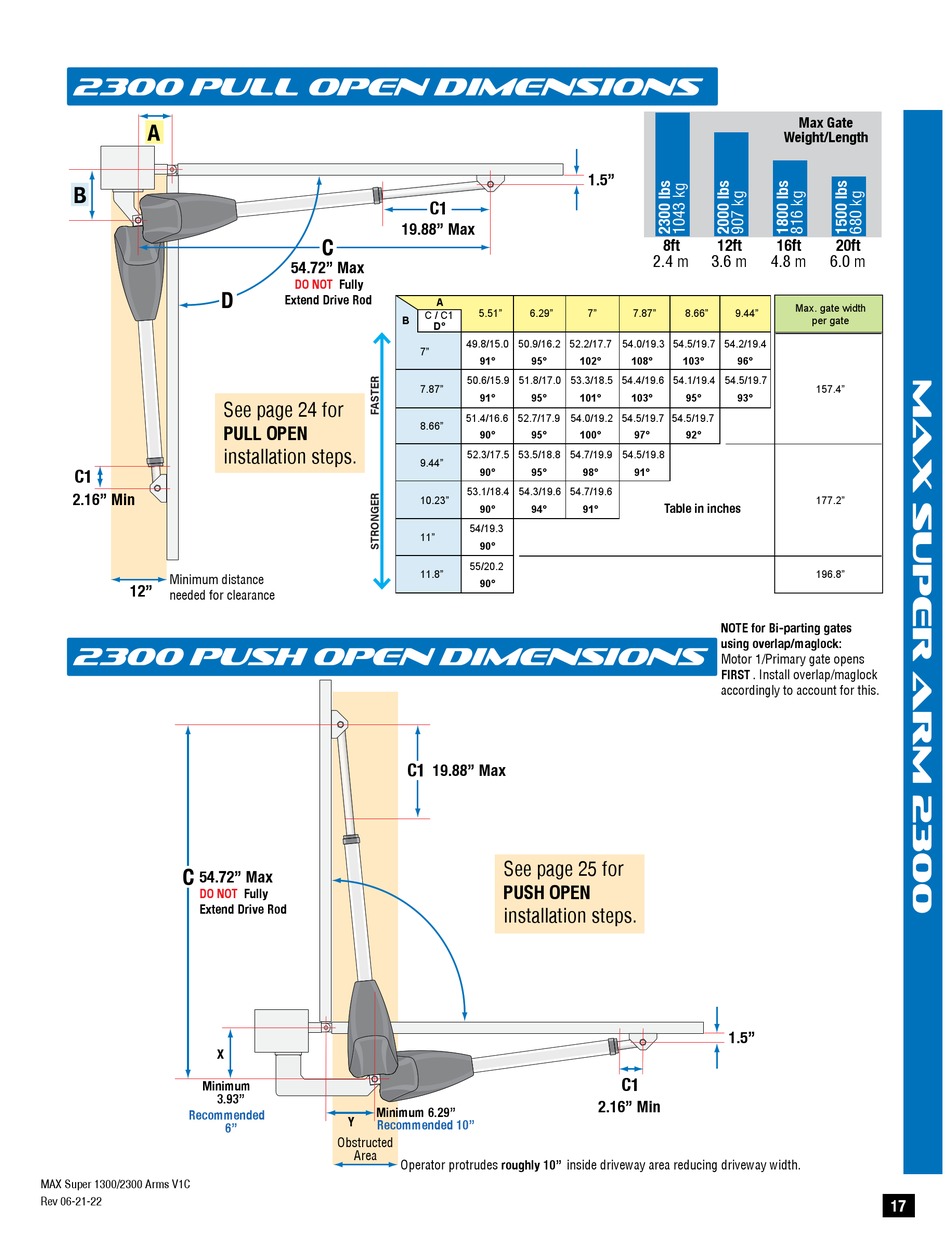

2300 pull open dimensions
A
B
C1
2.16" Min
Minimum distance
12"
needed for clearance
2300 push open dimensions
C
54.72" Max
DO NOT
Extend Drive Rod
X
Minimum
3.93"
Recommended
MAX Super 1300/2300 Arms V1C
Rev 06-21-22
C
54.72" Max
DO NOT Fully
D
Extend Drive Rod
See page 24 for
PULL OPEN
installation steps.
Fully
Minimum 6.29"
Y
Recommended 10"
6"
Obstructed
Area
Operator protrudes roughly 10" inside driveway area reducing driveway width.
C1
19.88" Max
A
5.51" 6.29"
C / C1
B
D°
49.8/15.0 50.9/16.2 52.2/17.7 54.0/19.3 54.5/19.7 54.2/19.4
7"
91° 95° 102°
50.6/15.9 51.8/17.0 53.3/18.5 54.4/19.6 54.1/19.4
7.87"
91° 95° 101°
51.4/16.6 52.7/17.9 54.0/19.2 54.5/19.7
8.66"
90° 95° 100°
52.3/17.5 53.5/18.8 54.7/19.9
9.44"
90° 95°
53.1/18.4 54.3/19.6 54.7/19.6
10.23"
90° 94°
54/19.3
11"
90°
55/20.2
11.8"
90°
C1
19.88" Max
See page 25 for
PUSH OPEN
installation steps.
1.5"
8ft 12ft
2.4 m 3.6 m
7" 7.87" 8.66" 9.44"
108° 103° 96°
54.5/19.7
103° 95° 93°
54.5/19.7
97° 92°
54.5/19.8
98° 91°
Table in inches
91°
NOTE for Bi-parting gates
using overlap/maglock:
Motor 1/Primary gate opens
FIRST . Install overlap/maglock
accordingly to account for this.
1.5"
C1
2.16" Min
Max Gate
Weight/Length
16ft 20ft
4.8 m 6.0 m
Max. gate width
per gate
157.4"
177.2"
196.8"
