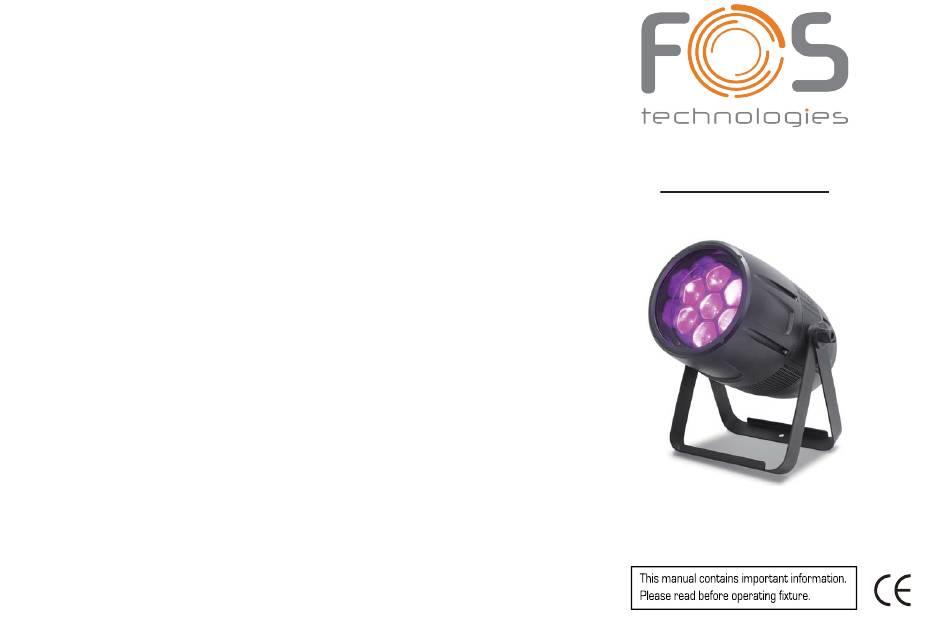

- Page 1 FOS Ultra Par 7*40W RGBW 4in1 LED User Manual...
- Page 2 1. The DMX indicator must be on. If not, check the DMX signal connector and signal line to see if CATALOGUE the connection is correct. 2. If the DMX indicator is on, but there is no response to channel control, and check the address code is set correctly.
-
Page 3: Dmx512 Connection
1. Safety Instruction 6. DMX512 Connection Please read this manual carefully, which includes important information about installation, using, and maintenance. Warning Please keep this manual as a future reference, if you sell the product to other users, make sure they have access to this manual as well. Before using the lighting, please check carefully to make sure that there is no damage caused by transportation. - Page 4 5. DMX512 Channels Do not touch the wire when the lighting is working in case of electric shock. After power on, connect to the console. When the DMX512 console signal is not Avoid winding of power cord and other wire. received, an "X"...
-
Page 5: Technical Specifications
How to control the lighting 2. Technical specifications The lighting can be controlled in two ways as below 1. The Master/Slave Machine Built-in Function; 2. DMX Controller. No need to turn off the power of the lighting, and the new address code can be set immediately. Open the lighting, it began to receive DMX signal. -
Page 6: Main Function
How to set the lighting The main func ons are shown below Control Panel English Display Descriptions Set DMX address 001-512 DMX Addr R-Dim Manual adjustment of RED intensity 0-100% 000-255 G-Dim Manual adjustment of GREEN intensity 0-100% Key_ADJ 000-255 B-Dim Manual adjustment of GREEN intensity 0-100% 000-255...
