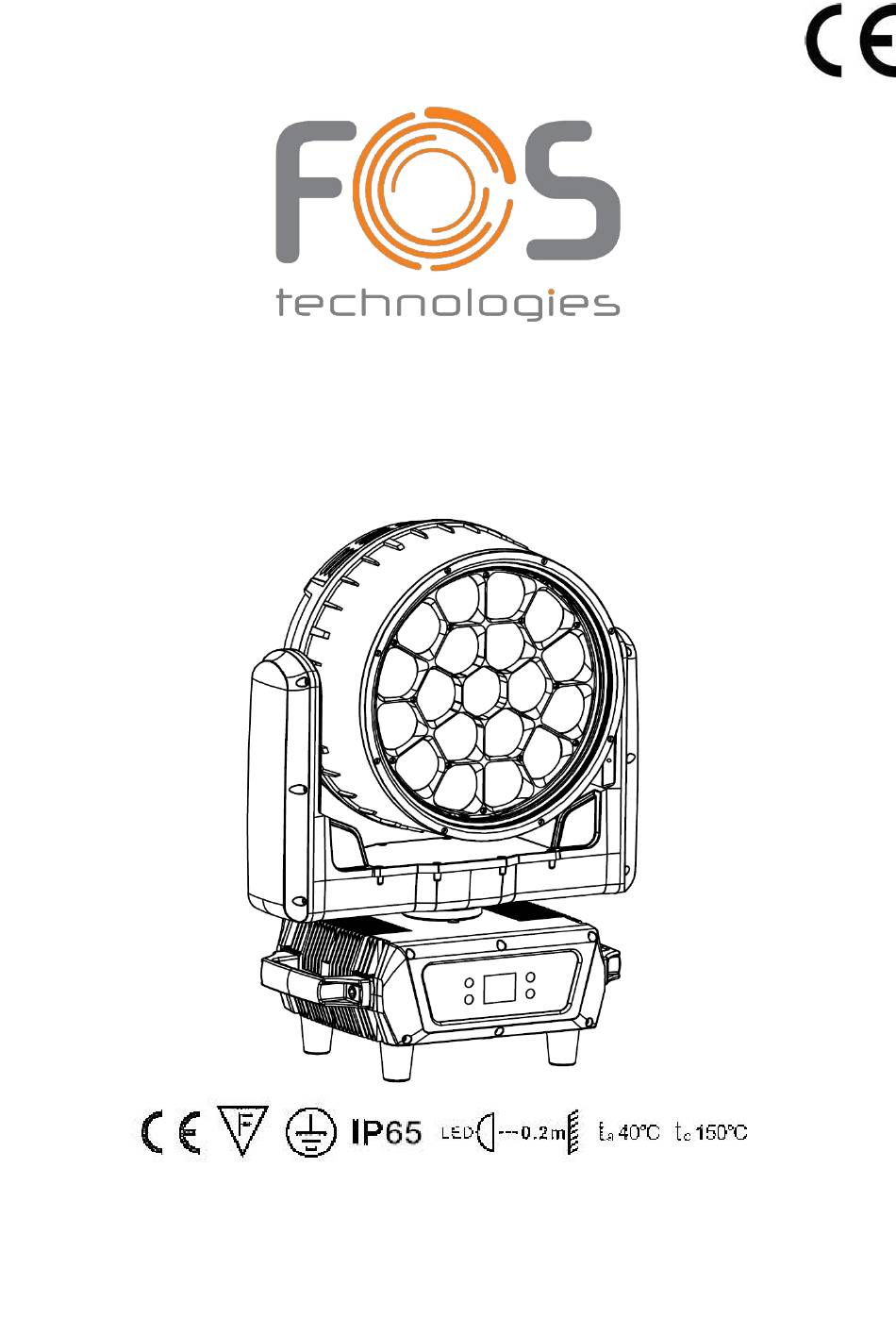

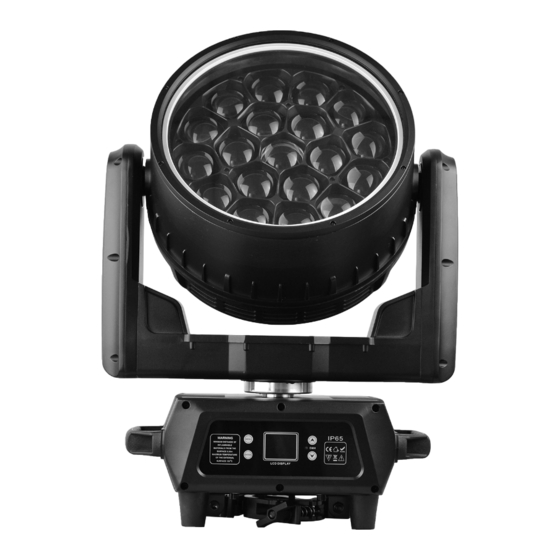

- Page 1 FOS Hydor Wash 19x40W 4-in-1 USER MANUAL KEEP THIS MANUAL FOR FUTURE NEEDS...
- Page 2 1. Unpacking Thank you for choosing our fixture. For your own safety, please read this manual before installing the device. This manual covers the important information on installation and applications. Please install and operate the fixture with following instructions. Meanwhile, please keep this manual well for future needs. This fixture is made of a new type of high temperature strength of engineering plastics and cast aluminum casing with nice outlook.
-
Page 3: Product Dimension
（ ） 2. Product dimension 3. Safety Instructions This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this user manual. If the device has been exposed to temperature changes due to environmental changes, do not switch it on immediately. - Page 4 This device falls under protection-class I. Therefore, it is essential that the device be earthed. The electric connection must carry out by qualified person. The device shall only be used with rate voltage and frequency. Make sure that the available voltage is not higher than stated at the end of this manual.
-
Page 5: Mounting And Installation
parts. -Don’t expose the fixture in overheat, moistureor environment with too much dust when installing it. And don’t lay any power cables on the floor. Or it might cause electronic shock to the people. -Make sure the installation place is in good safety condition before installing the fixture. - Page 6 you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury. Be sure to complete all rigging and installation procedures before connecting the main power cord to the appropriate wall outlet. Clamp Mounting: The product provides a unique mounting bracket assembly that integrates the bottom of the base, the included “Omega Bracket,”...
-
Page 7: Dmx-512 Control Connections
6. DMX-512 control connections Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. You can chain multiple. Moving heads be connected through serial linking. The cable needed should be two core, screened cable with XLR input and output connectors. -
Page 8: Key Features
7.Key Features Voltage: AC100V～240V 50-60HZ Rated Power: 760W LED Source: 19x40W high power RGBW 4 in 1 LEDs Zoom: 1:6 zoom range from 7 to 42 degree Strobe: 0-25Hz Control Mode: DMX512,Sound-activated,Master/slave DMX Channels: 21/35/43/78/92/97 six channel mode Dimmer: 0-100% linear dimmer with 4 kinds of dimmer curve. Pan: 540°... -
Page 9: Photometric Data
8. Photometric Data: LUX Data of 7 degree beam angle: 27700 lux@2m 7330 lux@4m 3490 lux@6m 1890 lux@8m 1210 lux@10m 68800 lux@2m 18560 lux@4m 8720 lux@6m 4750 lux@8m 3010 lux@10m 103400 lux@2m 33800 lux@4m 16000 lux@6m 8770 lux@ 8m 5650 lux@10m 80300 lux@2m 23100 lux@4m 10940 lux@6m... -
Page 10: Menu Function
9.MENU FUNCTION: Press menu for 3seconds to unlock Secondary Menu Sub-Menu Function submenu Address 001-512 DMX address 21CH Same as B-EYE K10 CH 35CH Same as B-EYE K10 CH 78CH Same as B-EYE K10 CH 92CH Same as B-EYE K10 CH 97CH Same as B-EYE K10 CH Run mode... -
Page 11: Channel Mode
10.CHANNEL MODE... - Page 15 SHAPE MODE DESCRIPTION CONCEPTS: FOREGROUND AND BACKGROUND The powerful shapes engine allows the user to set all the possible parameters relating to the pixels of the light in an organic way, with a distinction between the pixels affected by a selected "image" and the one sthat are not affected by that specific image (more properly called SHAPE from now on).
- Page 16 SHAPE SELECTION*SHAPE SPEED*SHAPE OFFSET*SHAPE FADE*BACKGROUND SELECT Random Shape Shape Background Shape Speed Shape Offset Shape Fade Colors Shape Name Selection Slot Select(*3)(*4) Macro OFF Pixel 1 Ring 1 Ring 2 0=snapeffect 0-7=Wash Reserved 1-255=Fade 8-15=Bgrings Pixel 1+ring1 effect 16-255 wash Pixel 1+ring2 Reserved Single ring...
- Page 17 Background Shape Shape Random Shape Speed Shape Offset Shape Fade Select Shape Name Slot Selection Colors *1 (*3)(*4) 0 = Snap 0-255 → select effect Bar 2 1-255 = Fade (Variablesize) shape width effect 0=Snap effect 0-255 → select Randoexplosion 1-255=select Randomdistribution the wake of...
- Page 18 · LED RING MACRO EFFECT No fuction 2-51 Static color on every 2 dmx ch 52-54 The 1st dynamic effect 55-250 Dynamic effect on every 4 dmx ch 251-255 The 51th dynamic effect REMARK The product has perfect performance and integrity packing. All users should be strictly comply with the warning and operating instructions as stated.
-
Page 19: Maintenance And Cleaning
11. Maintenance and Cleaning The following points must be considered during the inspection: 1. All screws for installing the devices or parts of the device must be tightly connected and must not be corroded.2. There must not be any deformations on the housing, color lenses, fixations and installation spots (ceiling, suspension, trussing).3.
