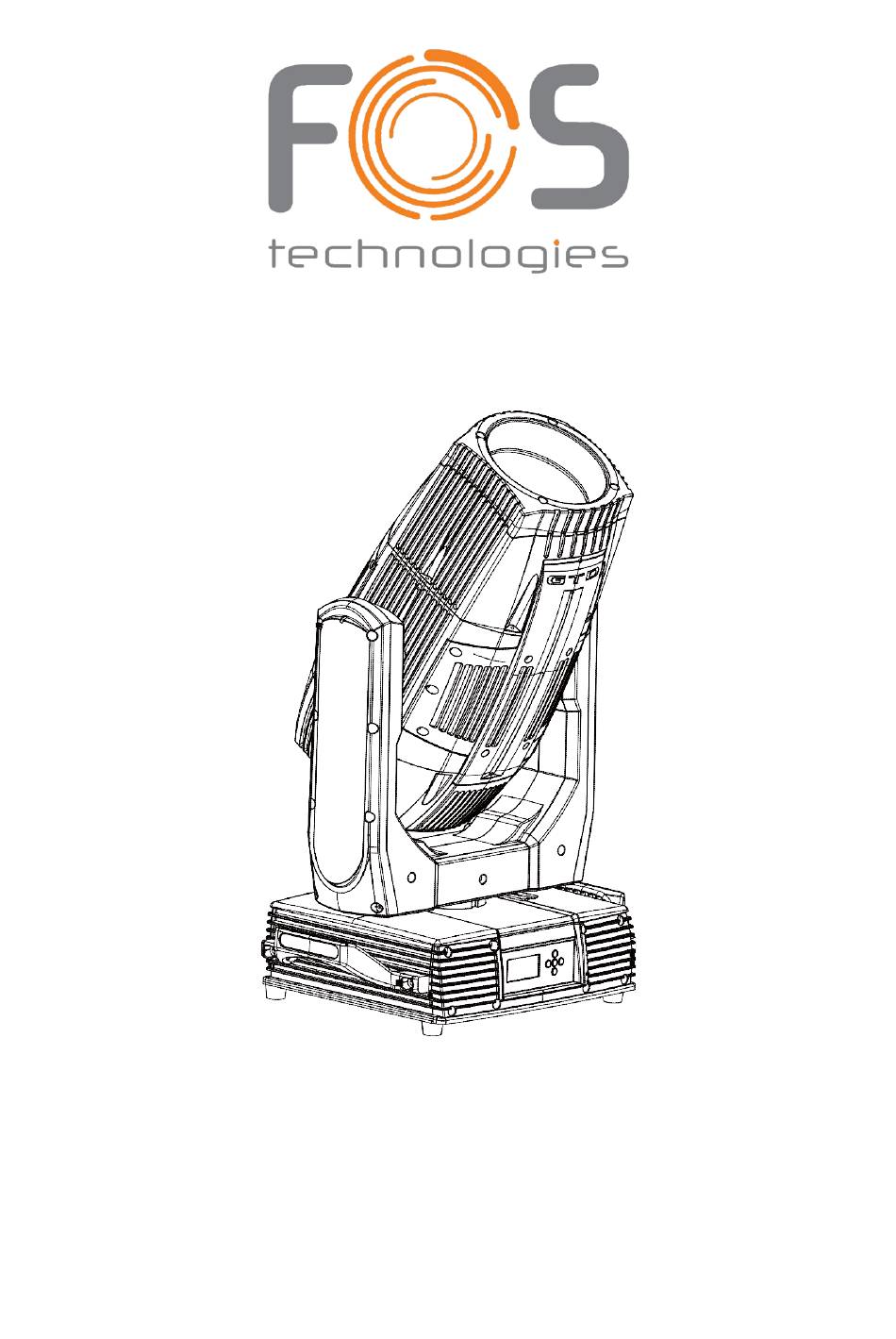

  • Page 1 FOS HYDRO BSW...
  • Page 2 FOS Technologies all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. FOS TECHNOLOGIES logo and identifying product names and numbers herein are trademarks of FOS TECHNOLOGIES. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    Table of contents 1. Safety instructions ............................... 1 2. Product introductions..............................3 2.1 Dimensions ................................3 2.2 Fixture overview ..............................4 2.3 Accessories ................................4 3. Packing and shipping ..............................5 3.1 Protection lock ................................. 5 3.2 Unpacking ................................5 3.3 Packing after use ..............................

  • Page 4: Safety Instructions

    1. Safety instructions Before using the fixture, read the latest version of the product user manual, paying particular attention to the safety instructions. Please check www.FOS Technologies-lighting.com for the latest revision/update of the user manual. The manufacture of this fixture, are not responsible for damages, resulting from misuse of this fixture, due to the disregard of the information printed in this user manual.
  • Page 5 General guidelines This product has a protection rating of P66.  Never open this fixture while in use.  The fixture should be kept clean. DO NOT operate the fixture in extreme heat or dusty environments. Avoid contact  with chemical liquid. Minimum distance to lighted objects must be 49.21feet (15m).

  • Page 6: Dimensions

    2. Production instructions 2.1 Dimensions...

  • Page 8: Fixture Overview

    2.2 Fixture overview 1. Head module 2. Frost module 3. Framing blade system 4. CMY 5. Light module 6. Lamp-holder assembly 7. Pan-tilt frame 8. Base module 2.3 Accessories Item Unit Remark User Manual Clamps 02A+21A 42-52mm Load weight 200KG Safety cable Φ4*60cm 7*19 pc with hook Material：Steel 3-pins signal line...

  • Page 9: Packing And Shipping

    3. Packing and shipping 3.1 Protection lock Pan and tilt locks are equipped to ensure safe transportation. PAN: 4 lock positions are located evenly on the Pan. TILT: 5 lock positions are located on left and right side of the Tilt with the third one in the center. 3.2 Unpacking Notes All products are quality controlled and checked for any faults before they are dispatched to customers.

  • Page 10: Installation

    4. Installation 4.1 Clamps installation The fixture can be placed on the stage or mounted on the truss facing any direction. Attach the clamps to the mounting position on the base of the fixture. Warning：Use two clamps when mounting the fixture. Turn the screws attached to each clamp a 1/4 turn clockwise to lock. Always remember to use the safety cable which goes through the mounting hole on the base.

  • Page 11: Lamp Fitting And Adjustment

    4.3 Lamp fitting and adjustment 1. Disconnect the fixture from AC power. Cool down the fixture. Set the Tilt lock in a horizontal position. 2. Remove the lamp holder lower cover and plug out the waterproof terminal when disassemble the bulb, then loosen the fixed plate and take out the bulb.

  • Page 12: Power/ Control Connection

    of the clean paper contained in its package 5. Power/ Control connection 5.1 Power connection Connection method:  L (Live) Brown wire E (Earth) Yellow / Green bi-color wire   N (Neutral) Blue wire  The voltage and frequency of the power source must be in compliance with the ones marked on the fixture. It is strongly recommended that each fixture are to be connected to the power source separately so that they can be switched on / off individually.

  • Page 13: Testing

    5.3 Testing Connect the fixture to AC power. Check if the lamp is on and the fixture is independently controllable before putting into operation. 6. Control panel 6.1 Panel instruction  The control panel features touch-sensitive buttons and LCD digital display for quick and easy setup of address code and functions menu.

  • Page 14: Technical Specification

    7. Technical specification Optical  Light source: PHILIPS 550W MSD Platinum 25 R Expected average lifetime: 1500 h Color temperature correction: 7800K Zoom: BEAM 1.7° / SPOT 0° -17° / WASH 3.4°～ 45° CRI：Ra≥85 Focus: High-precision glass lenses, electronic linear HD focus Prism: 1 pc tip 8-facet prism，1 pc Symmetry facet prism, prims can be controlled independently , or can be combined to make abundant beam effects Frost: 1-independent frost effect...
  • Page 15 Physical / Installation  Weight: 46Kg (101.4lbs.) IP rating: IP66 Material: Aluminum, steel, plastic Mounting points: Four quarter-turn locking points + attachment points for safety wire Dynamic effects  Pan/Tilt movement: 540˚/270˚ Iris: Motorized adjustable iris, wide range of variable pulse effects Strobe: 1-25Hz, synchronized, pulse effects Dimmer: 0-100%, mechanical dimming Thermal...
  • Page 16 Spot Wash Enhanced stability of the fixture due to the wide input voltage AC/DC switching power supply which both reduces the  impact of power and voltage fluctuations, and removes the restriction of voltage and frequency variations in different countries. Automatic energy saving: when the shutter or CMY is closed, power consumption will be reduced automatically with ...

  • Page 17: Gobos And Colors

    Power setting: built-in continuous rechargeable battery, allowing setting functional data via LCD interface without power  connection 8. Gobos and colors 8.1 Gobo specification All patterns are made onto the metal gobos, and can be customized according to user’s requirement. The customized size is as below: Gobo material Outer dimension...

  • Page 18: Colors

    Effect gobo wheel 8.3 Colors Color wheel: 7 colors + open, split color, CW/CCW rotation,“Rainbow effect”in both direction C+CTO...

  • Page 19: Menu Structure

    1.Red 2. Yellow 3.Blue Green 4.Green 5.Light Blue -purple 6.Fuchsia 1.Rose Red 2.Blue 3.Brown 4. Claybank 5.Cool color 6.Fluorescence 9. Menu structure Address Setting Address 001~ XXX Setting the DMX address Value Display strobe…… Display the channel value Auto-Program King equipment/stand-alone Run auto program in master or slave Total Time...
  • Page 20 Restore Default Restore/Cancel Restore to default value System reset System Reset Pan an tilt motor reset Scan Reset All color motor reset Color Reset All gobo motor reset Gobo Reset All strobe motor reset Strobe Reset All other motor reset Others Reset Test Mode Pan……...

  • Page 21: Dmx Protocol

    10. DMX Protocol DMX mode Name DMX value DMX percentage Function Stan Exte Basic dard nded 0.0% 12.2% Close 12.5% 24.7% Shutter open 25.1% 49.8% Strobe, slow→fast Strobe/Shutter 50.20% 62.4% Shutter open 62.8% 87.5% Random strobe , slow→fast 87.8% 100.0% Shutter open Dimmer 0.0%...
  • Page 22 73.7% 76.5% Stop DMX mode Name DMX value DMX percentage Function Stan Exte Basic dard nded Color1 continous rotation Color1 wheel 76.9% 100.0% CCW from slow to fast 0.00% 7.5% Open 7.8% 14.5% Color 1 14.9% 21.6% Color 2 22.0% 28.6% Color 3 29.0%...
  • Page 23 38.4% 40.4% Gobo 9 shake DMX mode Name DMX value DMX percentage Function Stan Exte Basic dard nded 40.8% 42.7% Gobo 10 shake 43.1% 45.1% Gobo 11 shake 45.5% 47.5% Gobo 12 shake 47.8% 49.8% Gobo 13 shake Gobo wheel (static) 50.2% 73.3% Gobo wheel continous rotation...
  • Page 24 76.9% 100.0% Gobo continous rotation CCW from slow to fast DMX mode Name DMX value DMX percentage Function Stan Exte Basic dard nded Gobo 0.0% 100.0% Gobo rotation/positioning, fine rotation/positioning, (LSB) fine (LSB) Effect wheel rotation 0.0% 49.8% Round (Fire) 50.2% 100.0% Fire wheel from slow to fast...
  • Page 25 0.0% 3.5% No function 3.9% 7.5% Open light after 5 seconds Special controls 7.8% 11.4% Close light after 5 seconds 11.8% 15.3% Color wheel half color switch DMX mode Name DMX value DMX percentage Function Stan Exte Basic dard nded 15.7% 19.2% Reserved...

  • Page 26: System Wiring Diagram

    11. System wiring diagram F5 II BSW SMS8004D-2 SMS8004D-2 Prism1 Zoom Fan1 ISP1 SMS8003D-1 Fan2 Prism2 ISP1 Focus SMS8004D-2 SMS8004D-2 SCR8010A Frost 2X SMS8003D-1 SCR8011A Focus L-Frost Y+CTO Zoom Strobe2 Strobe1 Prism2 Prism1 Prism.ROT Fan2 Fan3 Fan4 Fan-Lamp-R SMS8003D Fixed Fan- Fan1 GOBO...

  • Page 27: Maintenance And Troubleshooting

    12. Maintenance and Troubleshooting 12.1 Cleaning and maintenance It is required that the fixture should be kept clean and well maintained to ensure its reliability. Its lifespan mainly depends on the working environment and proper operation. Should you have any questions, please consult a technical engineer of FOS TECHNOLOGIES Lighting.
  • Page 28 Problem Possible Cause Suggested Correction control system. with the address in the control system. Choose the channel mode in “Channel setting > Misuse in “Channel setting > Channel Channel Mode” of the fixture as required by the Mode”of the fixture. user Malfunctioning of DMX cannon input/output Troubleshooting the DMX XLR signal plate of...
  • Page 29 Problem Possible Cause Suggested Correction Burned-out or failing lamps, or high temperatures in or around the fixture, can cause the ballast to overheat, so we need solve the problem and replace components as required Thermostat damaged. Replace. No function the connector between gobo wheel motor and drive, loose, damaged, or Reconnect the gobo wheel motor to the drive, and replace cables as required.
  • Page 30 Problem Possible Cause Suggested Correction coating wearing off, damages or deformation rotating gobo wheel and color wheel Follow the instructions stated in this user Excessive dusts or smudges on the rotating manual to clean the rotating gobo wheel or color gobo wheel or color whee wheel.
