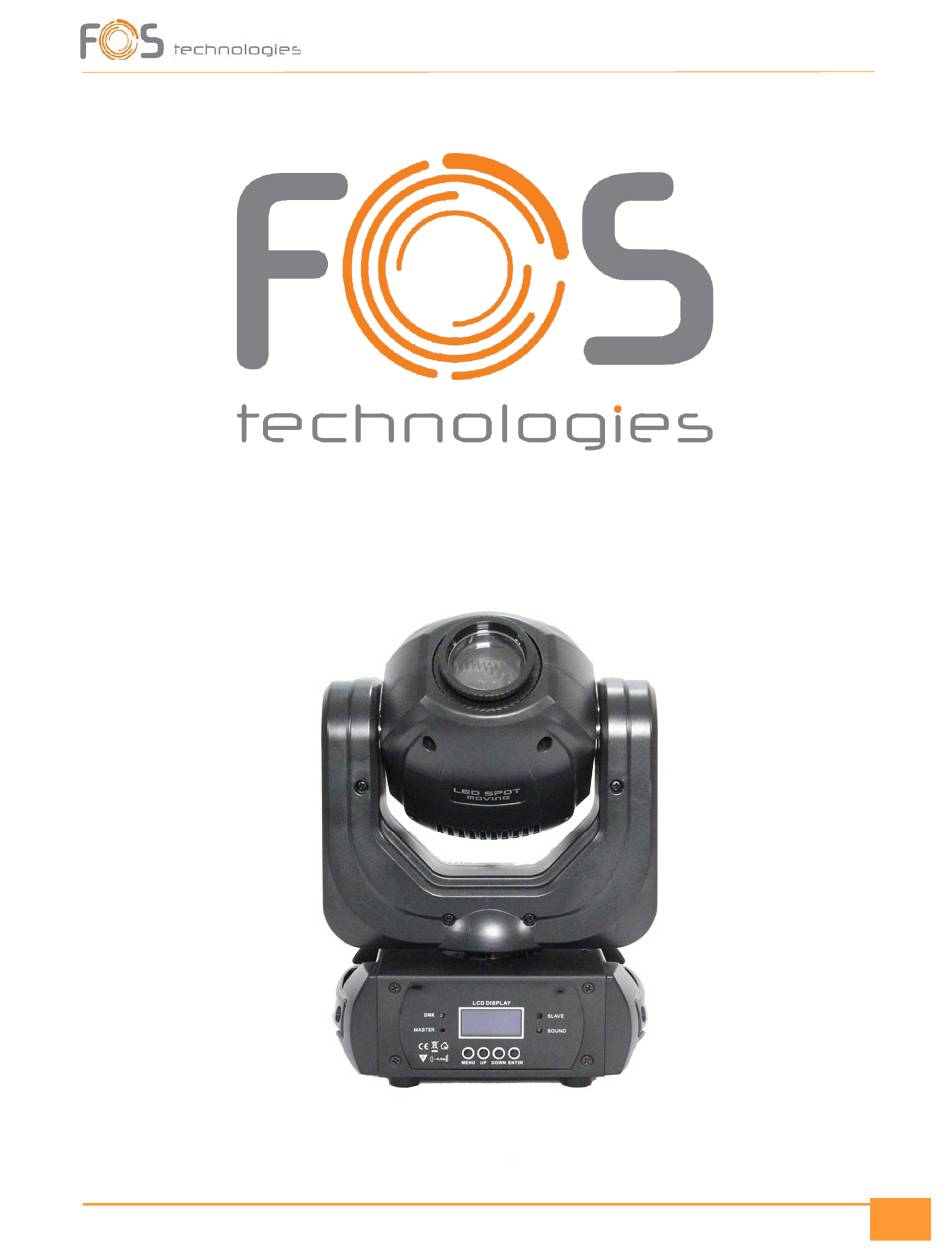

- Page 1 FOS Spot 40W...
-
Page 2: Product Specifications
PRODUCT SPECIFICATIONS TECHNICAL SPECIFICATION Voltage: 110/240 Volt AC, 50/60 Hz. Power Consumption: 100 Watt. Light Source: 40 Watt LED Colors: 9 filters + White. Gobos: 11 fixed gobos + open. Control: Auto, Music, DMX DMX Channels: 10 / 12. Protection Class: IP20 (for indoor use only) Width: 226 mm Depth: 150 mm Height: 325 mm... -
Page 3: Temporary Use
earth must always be connected to the ground. Ensure that all parts of the equipment are kept clean and free of dust. PROTECTION AGAINST SOLIDS AND WATER Only for IP-rated fixtures The protection level of a housing is set by applied standards. For classification there is used the IP-Code. It contains the declaration „IP“and two following numbers. -
Page 4: Limitations Of Ip Protection
Up / Down buttons you’re moving through the sub menu’s options, with Enter, you are confirming your choice. The FOS Spot 40W offers the following options:... -
Page 5: Channel Modes
DMXAddr: Set the DMX address WorkMod: Choose between DMX512, AUTO, SOUND working modes. Tool: Choose from the sub menus Display: On / 60S for Display on and off time. • SundHig: 1 – 16 for Sound sensitivity. • MotorST: Set the effect wheels and Pan / Tilt positions via the sub menus: ColrREV: 0 –... - Page 6 4 – 59 Synched strobe from slow to fast • 60 – 63 Shutter Open. • 64 – 123 Synched strobe from slow to fast (dif. Frequency) • 124 – 127 Shutter Open. • 128 – 191 Sudden strobe from low to high frequency. •...
- Page 7 0 – 15 No Prism • 16 – 127 Prism Insertion • 128 – 255 Prism Rotation from slow to fast • 9. Macros 0 – 19 No Function • 20 – 99 Auto Run • 100 – 199 Sound Active •...
- Page 8 0 – 4 Open White • 5 – 24 Red • 25 – 49 Green • 50 – 74 Blue • 75 – 99 Yellow • 100 – 124 Magenta • 125 – 149 Orange • 150 – 174 Cyan •...
-
Page 9: General Information
0 – 240 No Function • 241 – 255 Reset after 5 sec. • General Information Replacing a fuse: Always disconnect the fixture from main power before replacing a fuse. Use only the appropriate fuse, with the same type and rating. A fuse with different rating, can damage the fixture in case of failure. Risk of electric shock and / or fire: The fixture must be earthed, supplied always with its nominal voltage and cleaned periodically from dust.
