Summary of Contents for FOS Technologies TOURING PAR IP HEX

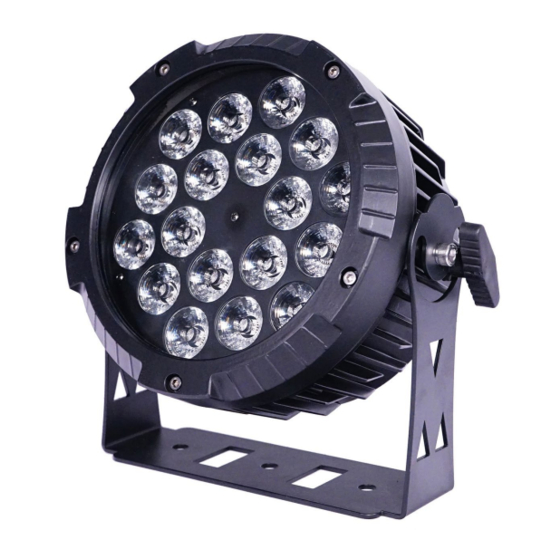

- Page 1 FOS TOURING PAR IP HEX This manual contains important information. Please read before operating fixture.
-
Page 2: Security Tips
1. SECURITY TIPS WARNING!!! To reduce the risk of fire, electric shock, or injury to persons, follow these important safety instructions: non-professionals, not to disassemble the light arbitrarily and lighting accessories inside. rated voltage range: AC110V-120V/60Hz or AC200V-240V / 50HZ (to be selected). - Page 3 2 TECHNOLOGY REFERENCE Input voltage: A C 100-240V, 50-60Hz 18pcs *15W RGBWA+UV 6-IN-1 high power LED Beam Angle: 25 degree Channel : 6/9 CH Life Time: 50,000 hours Dimmer: 0-100% with regulated constant color control ...
- Page 4 Operate Menu 1-512 Addr 6CH/9CH Chan 0-255 Stat Green Strobe 0-20 SP （1-9） Aut1 Auto Aut2 Aut9 Sou1 SC(0-9) Soun Sou2 Yes/No Rest...
-
Page 5: Dmx Channel Sheet
4 DMX CHANNEL SHEET 9Channel Value Function 0-255 Total Dimmer 0-100% 0-255 0-100% 0-255 Green 0-100% 0-255 Blue 0-100% 0-255 White 0-100% 0-255 Amber 0-100% 0-255 UV 0-100% 0-255 Strobe /Auto /Sound (from slow to fast ) No Function 10-19 RED 100% /GREEN UP / BULE 0% 20-29 RED DOWN /GREEN 100% / BULE 0%... -
Page 6: Fixed Equipment
135-139 White10：8500K 140-144 White11：10000K 145-154 Auto1 155-164 Auto2 165-174 Auto3 175-184 Auto4 185-194 Auto5 195-204 Auto6 205-214 Auto7 215-224 Auto8 225-234 Auto9 235-244 Sound01 245-255 Sound02 6Channel Value Function 0-255 Red 0-100% 0-255 Green 0-100% 0-255 Blue 0-100% 0-255 White 0-100% 0-255 Amber 0-100% 0-255... -
Page 7: Maintenance
fasten by the little hole in the middle of the bracket, then tie with a safety belt. The loading capacity of the safety belt should be 10 times than the weight of the fixture itself. 6 CONNECTION OF DMX-512 AND CONNETION WITH THE LIGHT EQUIPMENT Please connect XLR-XLR control wire with every light from the output of DMX. -
Page 8: After Service
Problems Check list Trouble Shooting The fixture do 1. If your power as same as the input 1. Make sure the voltage. not work of the machine. 2. Replace the same fuse. 2. If the fuse was broken. LED dimmed If your power us same as the input Make sure the voltage of the machine... - Page 9 Warranty Card Name Model Production Purchase Sale Store End User Link man: Company Name: Tel: Stamp Add: Description: These must be truthfully fill, seal by the end-user and point-of-sale, or else the warranty will not work (warranty period and terms, see the following) warranty period：one year since purchase warranty terms：1、If fail when using the product in normal state, you can made under the provisions of the warranty, show the warranty card and purchase bills(copy), and enjoy free maintenance service in a specific service center or...
