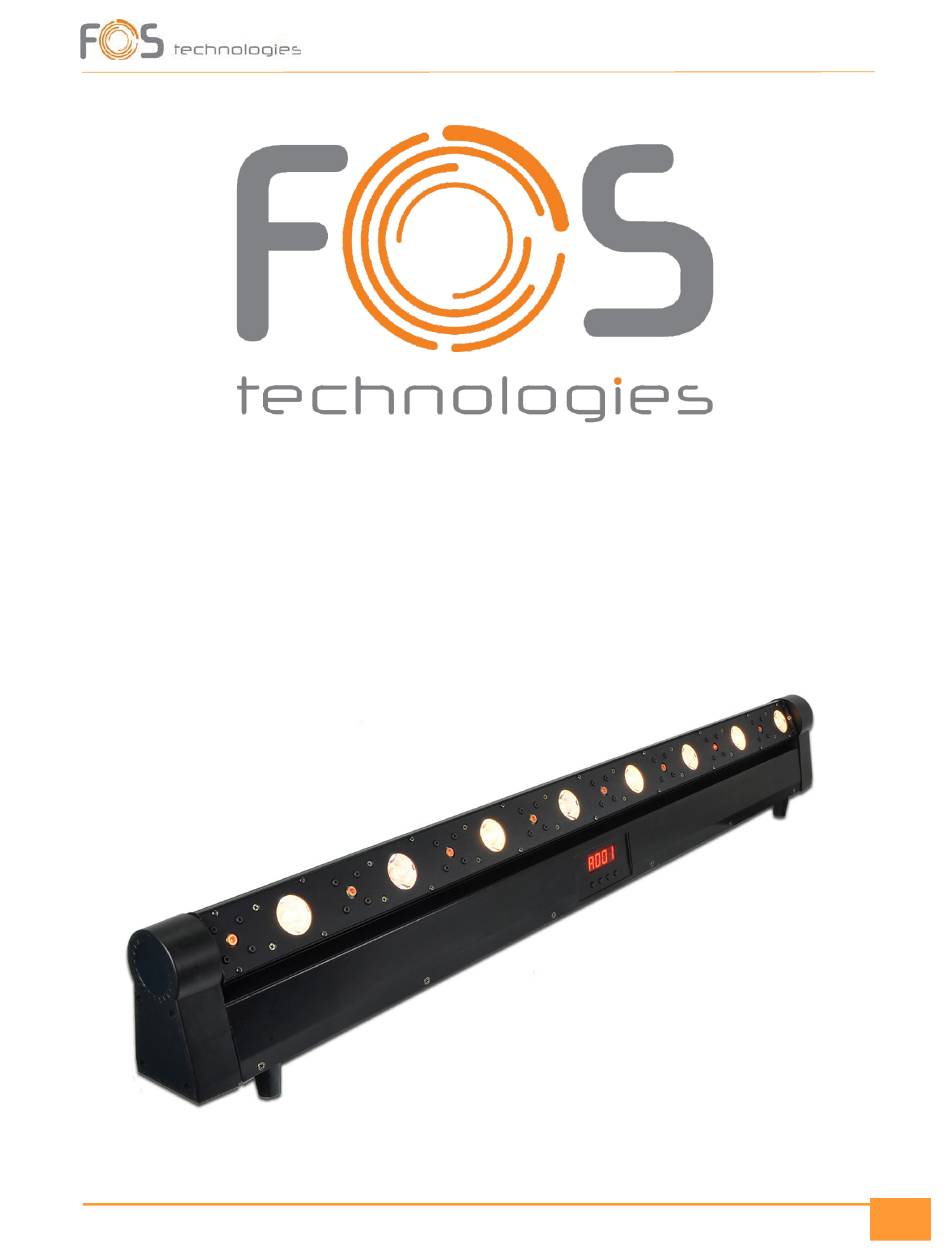

- Page 1 FOS Glow...
-
Page 2: Safety Instructions
Thank you for choosing our products. For your own safety, please read this manual before installing the device. This manual contains important information on installation and applications. Please install and operate the fixture with following instructions, make sure the power is off before opening the light or repairing. - Page 3 • Power supply: AC110-240V 50/60Hz • Power consumption: 80w • Source: 8x3w led warm white, 8x3w led red laser, 638nm_500mw • LED working lifetime:50000 hours • Color temperature: 3200k • Channel: 7/9/18/24 four channel mode • Laser Pattern: Single thick beam for each laser output •...
-
Page 4: Display Menu
• Don’t try to change the fixtures without any instruction by the manufacturer or the appointed repairing agencies. • It is not in warranty range if there are any malfunctions from not following the user manual to operate or any illegal operation, like shock short circuit, electronic shock, lamp broke, etc. -
Page 5: Dmx Charts
Close off the screen Disp Turn off the display Turn on the display RPan X motor is turning X motor reversal Rest System reset DMX Charts 7 Channels DMX Value Function 0-255 X motor operation 0-255 X motor speed 0-255 0-255 overall 0-127 LED Auto built-in... - Page 6 9 Channels DMX Value Function 0-255 X motor operation 0-255 X motor speed 0-255 Overall brightness 0-255 Strobe speed 0-255 Laser Auto effect 0-255 Laser Auto speed 0-255 LED Auto effect 0-255 LED Auto speed 250-255 Reset 18 Channels DMX Value Function 0-255 X motor operation...
- Page 7 0-255 BAR6 brightness 0-255 BAR7 brightness 0-255 BAR8 brightness 0-255 Group 1 white bright 0-255 Group 2 white bright 0-255 Group 3 white bright 0-255 Group 4 white bright 0-255 Group 5 white bright 0-255 Group 6 white bright 0-255 Group 7 white bright 0-255 Group 8 white bright...
-
Page 8: Maintenance And Cleaning
0-255 BAR7 brightness 0-255 BAR8 brightness 0-255 Group 1 white bright 0-255 Group 2 white bright 0-255 Group 3 white bright 0-255 Group 4 white bright 0-255 Group 5 white bright 0-255 Group 6 white bright 0-255 Group 7 white bright 0-255 Group 8 white bright 0-255... - Page 9 3. Mechanically moved parts must not show any traces of wearing and must not rotate with unbalances. 4. The electric power supply cables must not show any damage, material fatigue or sediments. Further instructions depending on the installation spot and usage must be adhered by a skilled installer and any safety problems must be removed.
