Summary of Contents for FOS Technologies FOS Spot 150W

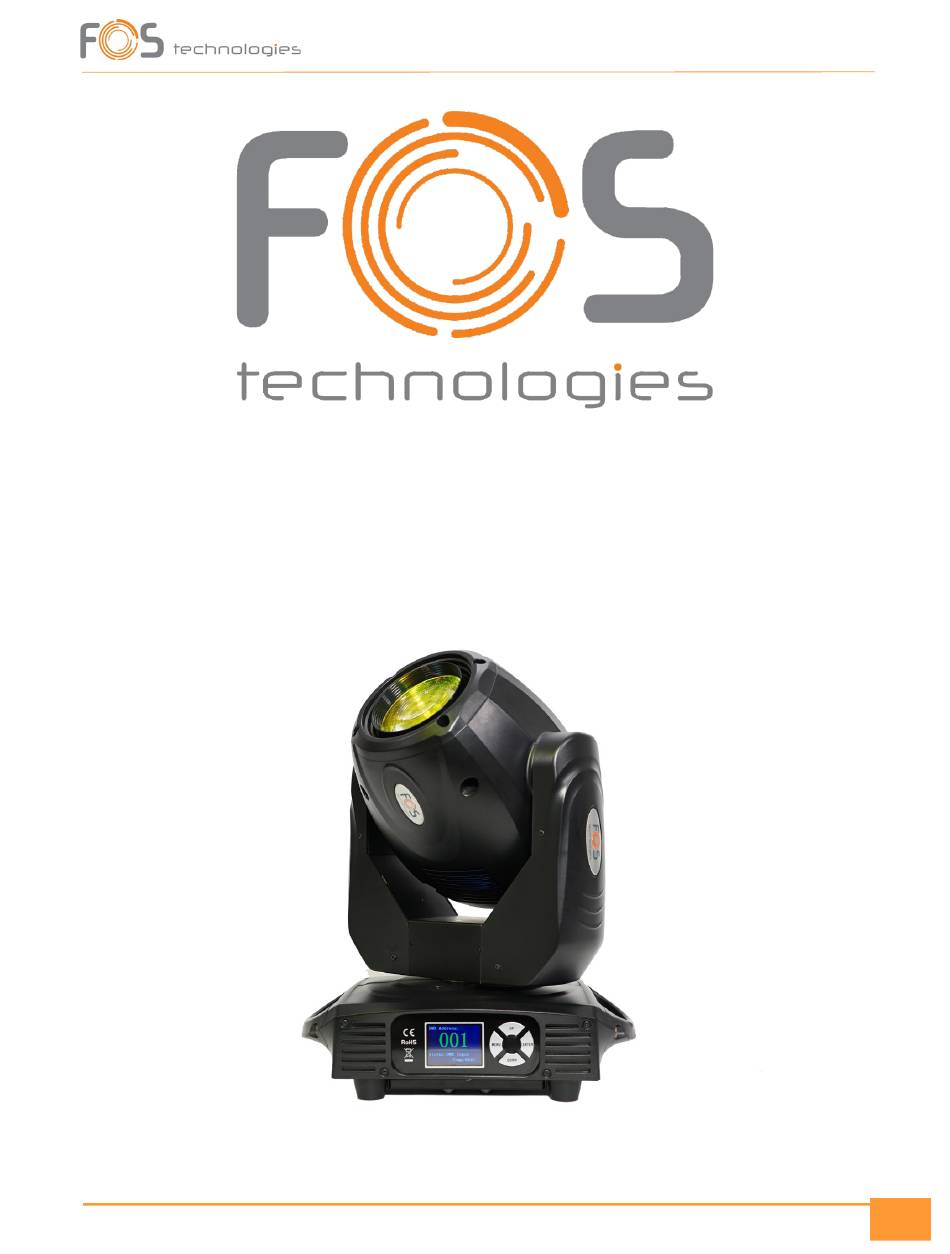

  • Page 1 FOS Spot 150W...

  • Page 2: Product Specifications

    PRODUCT SPECIFICATIONS TECHNICAL SPECIFICATION Voltage: 100/240 Volt AC, 50/60 Hz. Power Consumption: 250 Watt. Light Source: 150 Watt LEDs, 7500K. Beam angle: 14°. Colors: 8 colors + White Gobos: 7 Static Gobos (including 2 beam reducers) + Open, 8 Rotating Gobos + Open. Beam: Two rotating prisms (8F &...

  • Page 3: Protection Against Solids And Water

    PROTECTION AGAINST SOLIDS AND WATER Only for IP-rated fixtures The protection level of a housing is set by applied standards. For classification there is used the IP-Code. It contains the declaration „IP“and two following numbers. The first number characterizes the protection against harmful effects of solids, the second is rating the water protection.

  • Page 4: Installation

    Up / Down buttons you’re moving through the sub menu’s options, with Enter, you are confirming your choice. The FOS Spot 150W offers the following options:...
  • Page 5 • Scene Clear • Auto Prog: Alone • • Maste Sound Prog: • Alone • Maste SYS Set Lang Set: • Chinese English • DisplayRev: • • Backlight: LED On • • Off (30s) PanReverse: • • TiltReverse: • • Sound Sense: 0 –...

  • Page 6: Channel Modes

    Motor Reposition Factory Reset Manual (Manual control of each channel) Info: Version: Shows the firmware version of the fixture. Err Info: Shows the errors of the channels, if any. Channel Modes 15 Channels 1. Pan 2. Pan Fine 3. Tilt 4.
  • Page 7 • 130 – 139 Pink & Deep Blue 140 – 149 Deep Blue • • 150 – 159 Deep Blue & CTO 160 – 169 CTO • 170 – 179 CTO & White • 180 – 216 CW Rainbow • 217 –...

  • Page 8: General Information

    • 130 – 139 Gobo 6 Shake 140 – 149 Gobo 7 Shake • • 150 – 159 Open 160 – 206 CW Gobo scroll • 207 – 208 Scroll Stop • 209 – 255 CCW Gobo scroll • 11. Gobo Rotation 0 –...
  • Page 9 • Fixture is not responding to DMX control Check the DMX address Check the signal cable • Fixtures operation is being interrupted Check the air vents and fan, if they are blocked from dust. • Low brightness Check the state and / or clean the front lenses.
