Summary of Contents for FOS Technologies FOS Wash LED Quad II

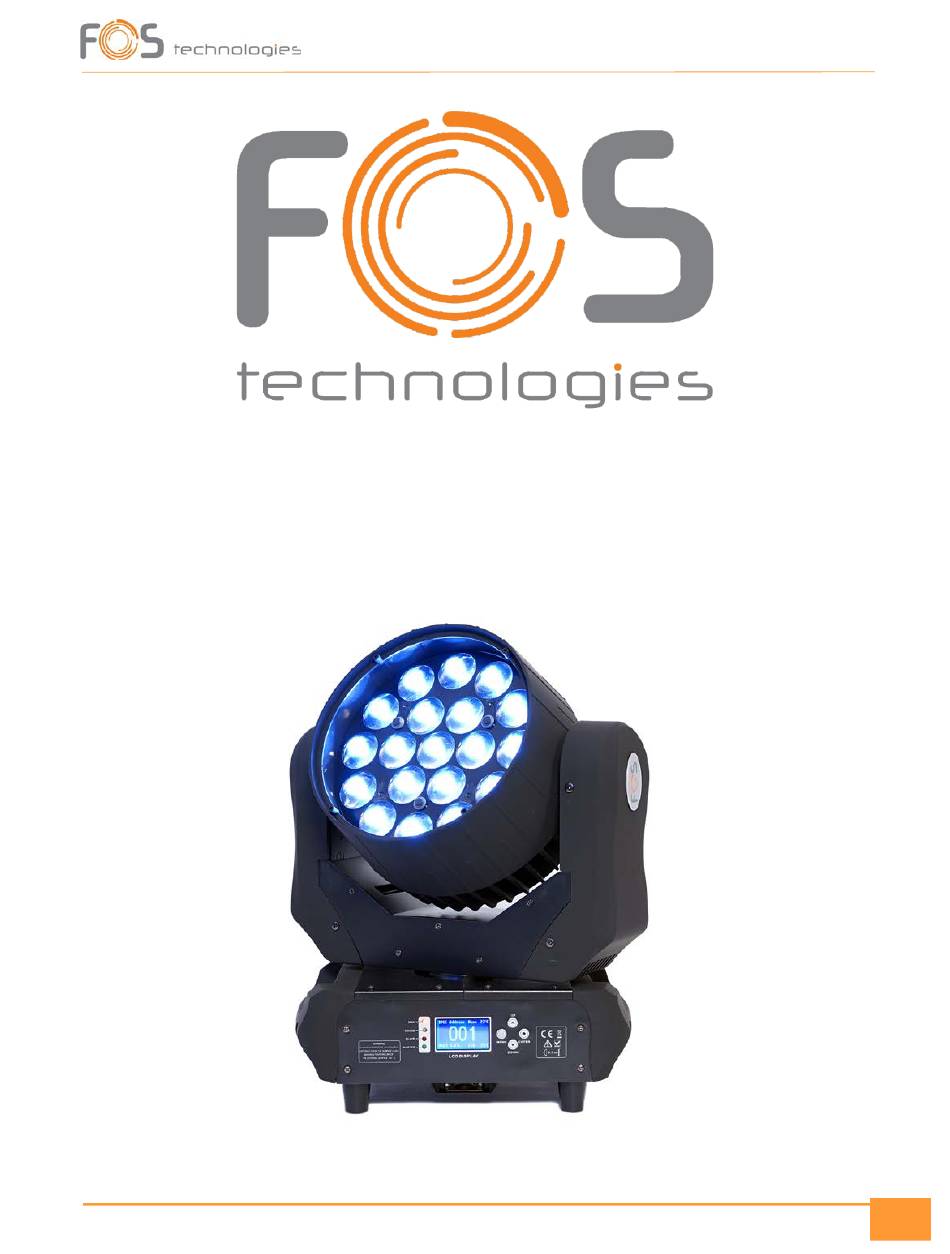

- Page 1 FOS Wash LED Quad II...
-
Page 2: Product Specifications
PRODUCT SPECIFICATIONS TECHNICAL SPECIFICATION Voltage: 100/240 Volt AC, 50/60 Hz. Power Consumption: 245 Watt. Light Source: 19x RGBW 12 Watt LEDs. Beam angle: 10° - 60°. Control: DMX512, sound active, auto. DMX Channels: 14. Protection Class: IP20 (for indoor use only). Width: 390 mm Depth: 180 mm Height: 450 mm... -
Page 3: Temporary Use
whether encapsulation and harmful effect! There can be housing that is not capsuled completely but still avoids harmful effect of solids or water. PROTECTION EXAMPLES: IP20: Protection against intruding objects >12,5mm „Finger protected “; No waterproofing. TYPICAL PROTECTION FOR INDOOR USE FIXTURES IP33: Protection against intruding objects >2,5mm;... -
Page 4: Installation
With the Up / Down buttons, you are moving through menu’s choices, pressing Enter, you are entering the sub menu of the option you have chosen, with the Up / Down buttons you’re moving FOS Wash LED Quad II through the sub menu’s options, with Enter, you are confirming your choice. The... - Page 5 Display Setting Display Inverse Backlight Auto OFF Backlight Intensity: • 0 – 100% Temperature Unit: • °C • °F Display Warning Fixture Test: Auto Test Manual Test Fixture Information Fixture use time Lamp on time • Exit • Reset Firmware version Reset Function: Pan / Tilt Zoom...
-
Page 6: Channel Modes
**Special Functions Explanation P/T Feedback — Pan/Tilt Feedback Select P/T Feedback, press ENTER button to confirm, present mode will blink on the display, press UP/DOWN button to select No (Pan or tilt’s position will not feedback while out of step) or Yes (Feedback while pan/tilt out of step), press ENTER button to store. - Page 7 • 110 – 124 Random Strobe 125 – 129 Shutter Open • • 130 – 144 Random Opening Pulse 145 – 149 Shutter Open • 150 – 164 Random Closing Pulse • 165 – 169 Shutter Open • 170 – 184 Burst Pulse •...
-
Page 8: General Information
• 125 – 129 LEE 738 JAS Green 130 – 134 LEE 088 Lime Green • • 135 – 139 LEE 100 Spring Yellow 140 – 144 LEE 104 Deep Amber • 145 – 149 LEE 179 Chrome Orange • 150 –... - Page 9 • Fixture is not responding to DMX control Check the DMX address Check the signal cable • Fixtures operation is being interrupted Check the air vents and fan, if they are blocked from dust. • Low brightness Check the state and / or clean the front lenses.
